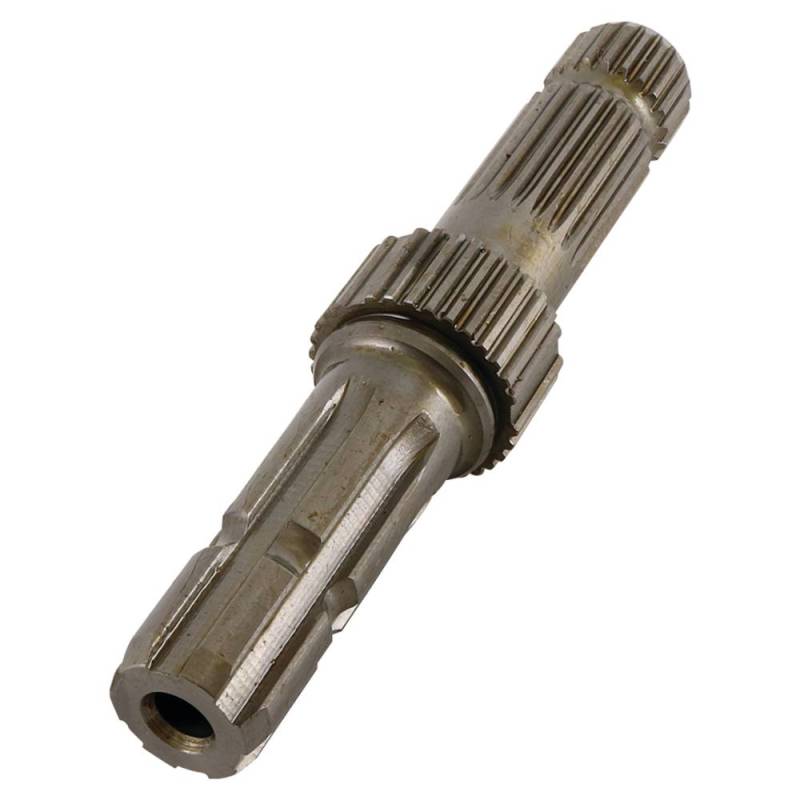

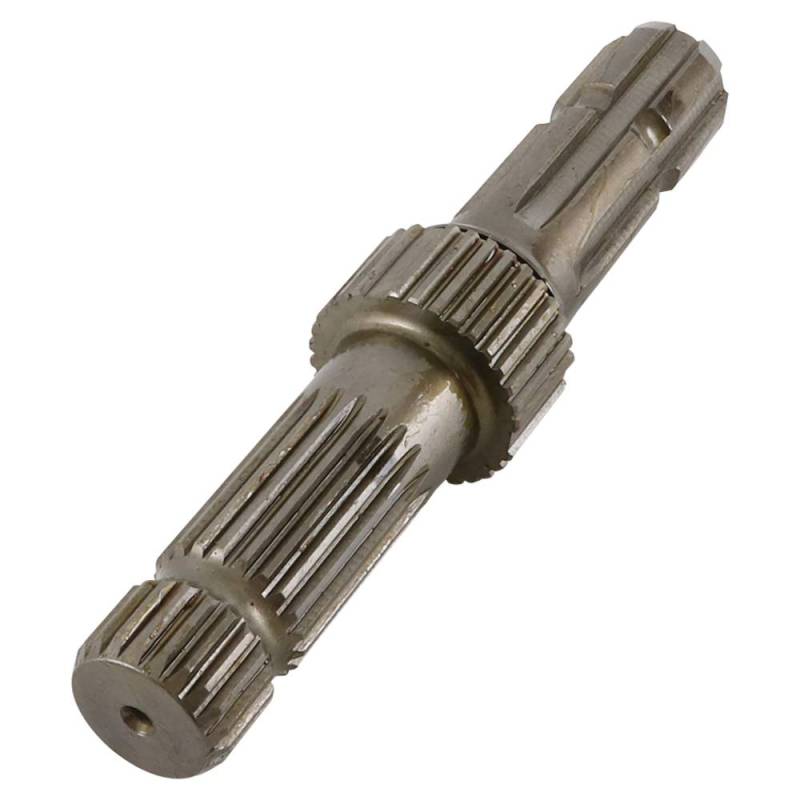

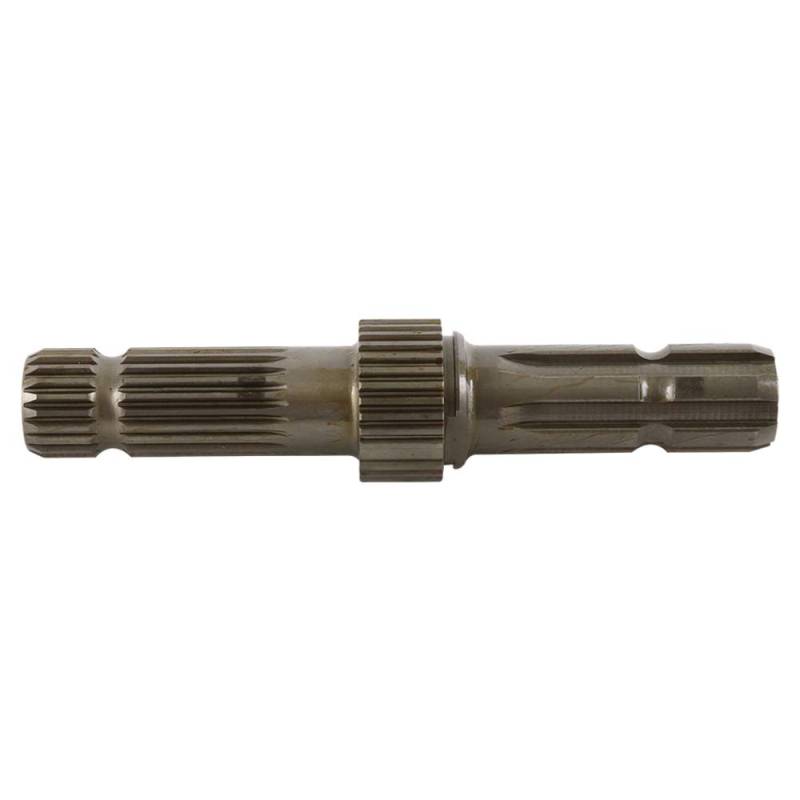

6/21 Spline Pto Shaft Compatible With John Deere 7400 7500 7600 7700 7800 6920 6920S 6910 6910S

1412-1011A5
OEM PART NUMBERS:
• John Deere: L110178 (PTO Shaft - Primary)
• John Deere: L151598 (PTO Shaft - Superseded)
• John Deere: L156976 (PTO Shaft - Superseded)
• John Deere: L173282 (PTO Shaft - Current)
• John Deere: R125087 (PTO Shaft - Cross-Reference)
• John Deere: R161794 (PTO Shaft - Cross-Reference)
• John Deere: R93500 (PTO Shaft - Earlier)

SPECIFICATIONS:
• PTO Speed: 540/1000 RPM (Reversible)
• External Splines: 6 (540 RPM) / 21 (1000 RPM)
• Internal Splines: 33
• Outside Diameter: 1-3/8" (Both Ends)
• Length: 9-1/4" (234.9mm)
• Condition: New

APPLICATION:
• John Deere 5-Series: 5076EN/5090EL/5090EN/5100R/5101E/5115R/5125R/5325/5325N/5425/5425N/5525/5525N/5603/5625/5725
• John Deere 6000-Series: 6010/6100/6100D/6105D/6110/6110B/6110D/6110L/6115D/6120/6125D/6130D/6140D/6140J/6155J
• John Deere 6000-Series: 6200/6200L/6205/6210/6210L/6300/6300L/6310/6310L/6310S/6400/6400L/6403/6410/6410L/6410S
• John Deere 6000-Series: 6500/6500L/6505/6506/6510/6510L/6510S/6600/6603/6605/6610/6800/6810/6820/6900/6910/6910S/6920/6920S
• John Deere 7-Series: 7200/7210/7400/7405/7410/7420/7425/7500/7505/7510/7515/7520/7525
• John Deere 7-Series: 7600/7610/7700/7710/7715/7720/7730/7800/7810/7815/7820/7920
• John Deere SE-Series: SE6010/SE6100/SE6110/SE6200/SE6210/SE6300/SE6310/SE6400/SE6410/SE6510/SE6610

THIS ITEM FITS VARIOUS APPLICATIONS BY PART NUMBER. PLEASE CHECK YOUR PART NUMBER TO ENSURE FITMENT.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $265.60
Sale: $151.77
Save: 43%
Save: $113.83
Qty:
Free Shipping!

Description

JOHN DEERE 5-SERIES TRACTORS:
• 5076EN / 5090EL / 5090EN / 5100R / 5101E / 5115R / 5125R
• 5325 / 5325N / 5425 / 5425N / 5525 / 5525N
• 5603 / 5625 / 5725

JOHN DEERE 6-SERIES TRACTORS:
• 6010 / 6100 / 6100D / 6105D / 6110 / 6110B / 6110D / 6110L / 6115D / 6120 / 6125D / 6130D / 6140D / 6140J / 6155J
• 6200 / 6200L / 6205 / 6210 / 6210L / 6300 / 6300L / 6310 / 6310L / 6310S
• 6400 / 6400L / 6403 / 6410 / 6410L / 6410S / 6500 / 6500L / 6505 / 6506
• 6510 / 6510L / 6510S / 6600 / 6603 / 6605 / 6610
• 6800 / 6810 / 6820 / 6900 / 6910 / 6910S / 6920 / 6920S

JOHN DEERE 7-SERIES TRACTORS:
• 7200 / 7210 / 7400 / 7405 / 7410 / 7420 / 7425 / 7500 / 7505 / 7510 / 7515 / 7520 / 7525
• 7600 / 7610 / 7700 / 7710 / 7715 / 7720 / 7730 / 7800 / 7810 / 7815 / 7820 / 7920

JOHN DEERE SE-SERIES TRACTORS:
• SE6010 / SE6100 / SE6110 / SE6200 / SE6210 / SE6300 / SE6310 / SE6400 / SE6410 / SE6510 / SE6610

FITMENT INFORMATION:
• Reversible 540/1000 RPM PTO output shaft
• Flip shaft to switch speed — 6-spline end = 540 RPM, 21-spline end = 1000 RPM
• Fits tractors with 33 internal spline PTO drive

NOTE: Verify OEM part number before ordering.

Details

Shipping Information

  • Item Requires Shipping
  • 4.5 lbs.
  • W3.2000” x H3.1000” x L10.4000”
  • Free Shipping!
