International Harvester :
• 360746R1 (IPTO Pressure Plate — Original)
• 360746R91 (Primary Revision)
• 376360R94 (Pressure Plate Assembly)
• 376360R94R (Remanufactured Equivalent)
Related Clutch Components (Sold Separately):
• IPTO Clutch Disc — 10.5 inch × 16 Spline
• Release Bearing — Separate Part Number
• Pilot Bearing — Separate Part Number
NOT Compatible With:
• IH 454 / 464 / 574 series — Uses 11 inch IPTO clutch (different spline count)
• IH 706 / 806 / 856 and larger — Uses 12 inch IPTO clutch (17 spline)
• Farmall Letter Series (A, B, C, H) — Uses transmission clutch, not IPTO

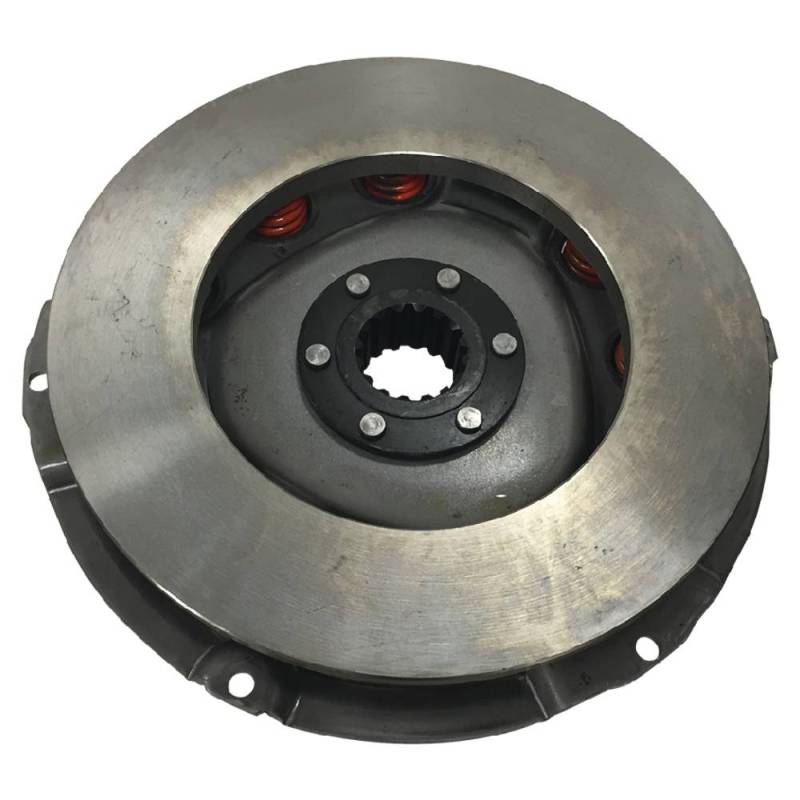

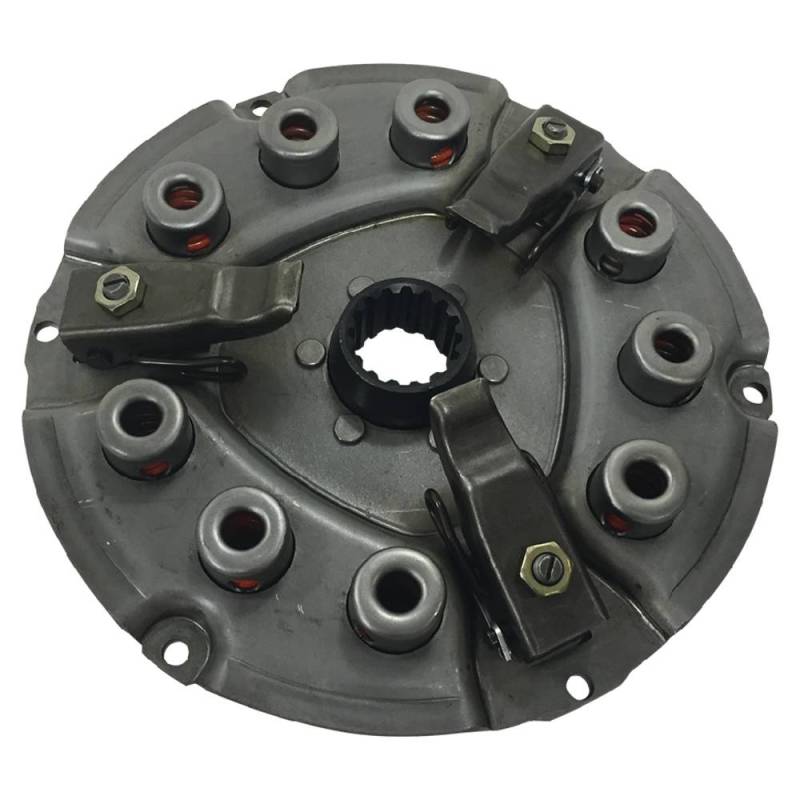

Product Specifications:
• Type: IPTO Pressure Plate — Independent PTO
• Design: Single Stage — Borg & Beck Style — 3 Finger — 9 Coil Springs
• Outer Diameter: 10-1/2 inch (10.5 inch)
• Hub Inner Diameter: 1-11/16 inch (1.6875 inch)
• Hub Splines: 16
• Flywheel Step: 1.188 inch
• Material: Cast Iron
• Application: IH 300-606 Utility, 2504-3616 Industrial Tractors
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
