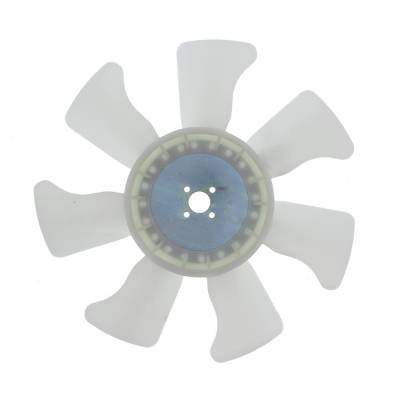

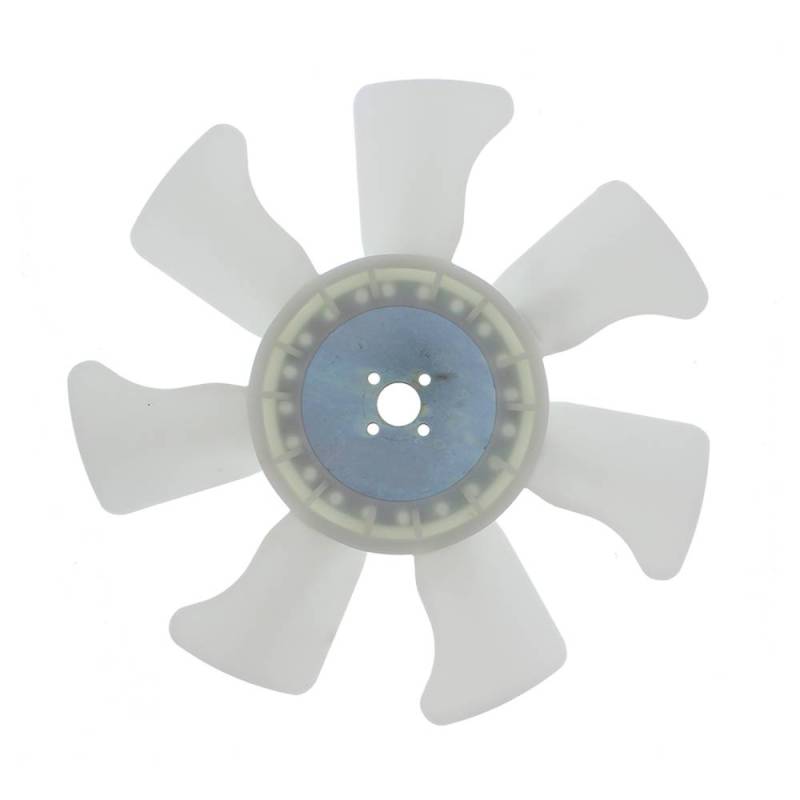

Radiator Fan 7 Blade Compatible With Kubota L2501f L2501h L2800dt L2800f L2800hst L3200dt L3200f

1906-1004A1
Kubota :
• 34030-16210 (Radiator Fan — Current Part Number)
• 3403016210 (No-Dash Format)

:
• Stens 1906-1004 / Atlantic Quality Parts (Radiator Fan)
• Complete Tractor 1906-1004 (Radiator Fan — Kubota L-Series)
• DB Electrical (Radiator Fan — Kubota 34030-16210)
• Total Power Parts 1906-1004 (Radiator Fan — Kubota L-Series)
• RAParts (Radiator Fan — Kubota L-Series Compact)

Product Specifications:
• Type: Radiator Fan — Engine Cooling
• Number of Blades: 7
• Material: Plastic
• Outside Diameter: 14.17 Inches (360mm)
• Rotation: Standard — Engine Driven
• Application: Engine Cooling — Radiator
• Mounting: Direct Replacement
• Application: Kubota L-Series Compact Diesel Tractors (L2501 / L2800 / L3200 / L3301 / L3400 / L3700 / L3800 / L3901 / L4300)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.96
Sale: $69.12
Save: 43%
Save: $51.84
Qty:
Free Shipping!

Description

Kubota L-Series (D1403 Engine — 3-Cylinder 1.4L Diesel):
• L2800DT — 29 HP D1403 3-Cylinder 1.4L Diesel (2007-2010)
• L2800F — 29 HP D1403 3-Cylinder 1.4L Diesel (2007-2010)
• L2800HST — 29 HP D1403 3-Cylinder 1.4L Diesel (2007-2010)
• Engine: Bore 80.0mm / Stroke 92.4mm / Displacement 1.393L
• Compression Ratio: 23.0:1 / Max Speed: 2800 RPM

Kubota L-Series (D1503 Engine — 3-Cylinder 1.5L Diesel):
• L3200DT — 32 HP D1503 3-Cylinder 1.5L Diesel (2011-2015)
• L3200F — 32 HP D1503 3-Cylinder 1.5L Diesel (2011-2015)
• L3200H — 32 HP D1503 3-Cylinder 1.5L Diesel (2011-2015)
• Engine: Bore 83.0mm / Stroke 92.4mm / Displacement 1.499L
• Compression Ratio: 23.0:1 / Max Speed: 2800 RPM

Kubota L-Series (D1703 / D1703-CR Engine — 3-Cylinder 1.6L Diesel):
• L2501D — 24.8 HP D1703-CR 3-Cylinder 1.6L Diesel (2017-Present)
• L2501F — 24.8 HP D1703-CR 3-Cylinder 1.6L Diesel (2017-Present)
• L2501H — 24.8 HP D1703-CR 3-Cylinder 1.6L Diesel (2017-Present)
• L3400DT — 34.7 HP D1703 3-Cylinder 1.6L Diesel (2007-2010)
• L3400F — 34.7 HP D1703 3-Cylinder 1.6L Diesel (2007-2010)
• L3400HST — 34.7 HP D1703 3-Cylinder 1.6L Diesel (2007-2010)
• Engine: Bore 87.0mm / Stroke 92.4mm / Displacement 1.647L
• Compression Ratio: 23.0:1 / Max Speed: 2700 RPM

Kubota L-Series (D1803 / D1803-CR Engine — 3-Cylinder 1.8L Diesel):
• L3301DT — 33 HP D1803-CR 3-Cylinder 1.8L Diesel (2014-2022)
• L3301F — 33 HP D1803-CR 3-Cylinder 1.8L Diesel (2014-2022)
• L3301H — 33 HP D1803-CR 3-Cylinder 1.8L Diesel (2014-2022)
• L3700SU — 37.4 HP D1803 3-Cylinder 1.8L Diesel (2010-2012)
• L3800DT — 37.4 HP D1803 3-Cylinder 1.8L Diesel (2011-2014)
• L3800F — 37.4 HP D1803 3-Cylinder 1.8L Diesel (2011-2014)
• L3800H — 37.4 HP D1803 3-Cylinder 1.8L Diesel (2011-2014)
• L3901DT — 37.5 HP D1803-CR 3-Cylinder 1.8L Diesel (2014-2022)
• L3901F — 37.5 HP D1803-CR 3-Cylinder 1.8L Diesel (2014-2022)
• L3901H — 37.5 HP D1803-CR 3-Cylinder 1.8L Diesel (2014-2022)
• Engine: Bore 87.0mm / Stroke 102.4mm / Displacement 1.826L
• Compression Ratio: 23.0:1 / Max Speed: 2700 RPM

Kubota L-Series (V2203 Engine — 4-Cylinder 2.2L Diesel):
• L4300DT — 45.3 HP V2203 4-Cylinder 2.2L Diesel (2001-2005)
• L4300F — 45.3 HP V2203 4-Cylinder 2.2L Diesel (2001-2005)
• Engine: Bore 87.0mm / Stroke 92.4mm / Displacement 2.197L
• Compression Ratio: 23.0:1 / Max Speed: 2600 RPM
