OEM PART NUMBERS:
• Case IH: 20-2063T1
• Case IH: 60-6730T91
• Steiger: 60-6731T1
• Case IH/Steiger: 20-1730T91
SPECIFICATIONS:

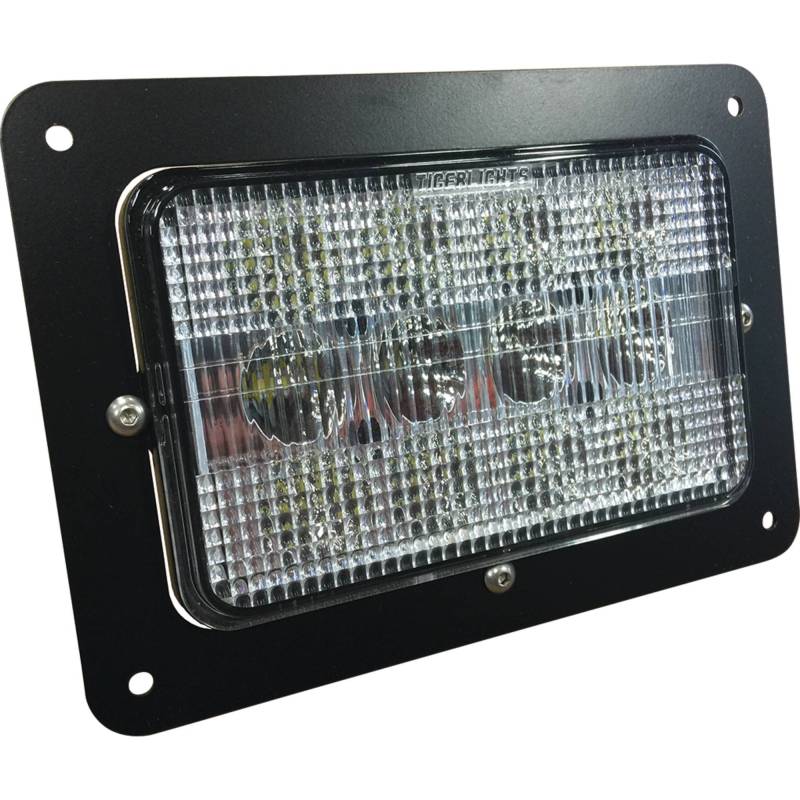

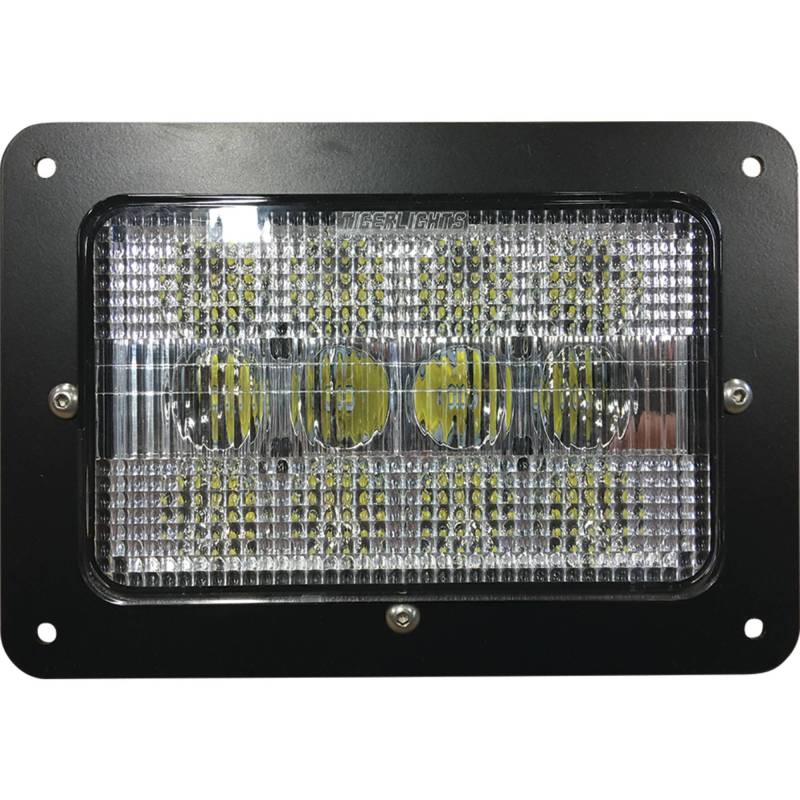

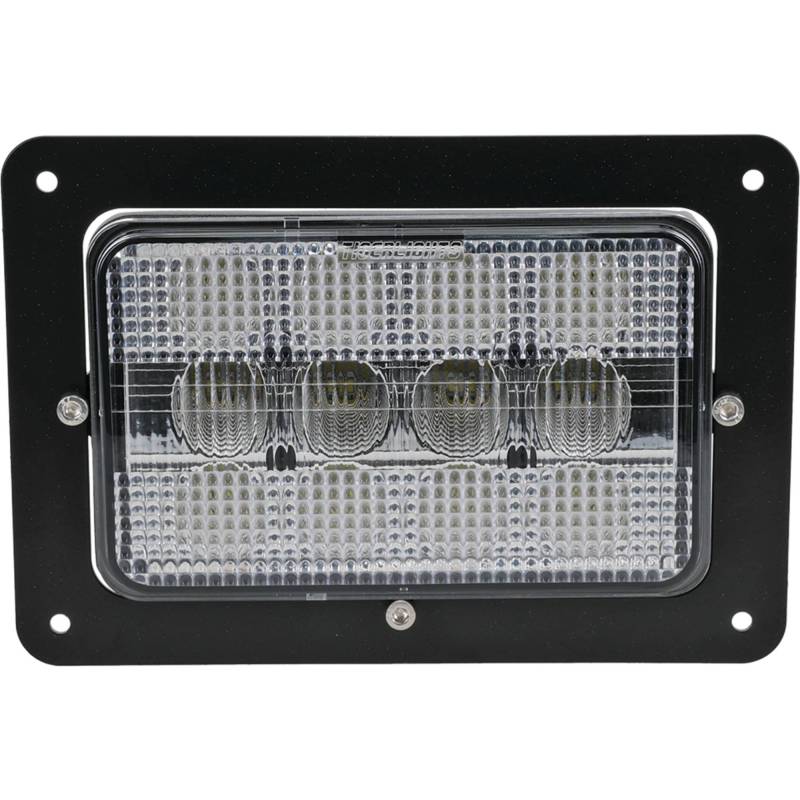

• Product Type: LED Tractor Headlight Hi/Lo Beam
• Light Pattern: Flood Beam
• Lumens: 3,500
• Wattage: 60W (12 x 5W LEDs)
• Amperage: 5A
• Voltage: 12-24V DC
• Dimensions: 5-3/4 in x 8-1/4 in (L x W)
• Mount Location: Front Grille Mount
• Housing: Die-Cast Aluminum
• Lens: Polycarbonate
• Bracket: Stainless Steel with Correct Mounting Frame
• Connector: Deutsch Style
• Weight: 2.1 lbs
• IP67 Waterproof and Dustproof
• Uses Original Mount and Wiring
• Plug-and-Play Installation
• 2 Required Per Tractor
• Condition: New
APPLICATION:
• Case IH 9100 Series: 9110/9130/9150/9170/9180 (1986-1990)
• Case IH 9200 Series: 9210/9230/9240/9250/9260/9270/9280
• Case IH 9300 Series: 9310/9330/9350/9370/9380/9390
• Steiger Bearcat/Cougar/Lion/Panther/Puma/Wildcat 1000 Series
• Steiger CR-1225/CR-1280/KR-1225/KR-1280/CP-1325/CP-1360/CP-1400/KP-1325/KP-1360/KP-1400
FITS:
CASE IH STEIGER 9100 SERIES 4WD TRACTORS:
• 9110 4WD Tractor (1986-1990)
• 9130 4WD Tractor (1986-1990)
• 9150 4WD Tractor (1986-1990)
• 9170 4WD Tractor (1988-1990)
• 9180 4WD Tractor (1986-1990)
CASE IH STEIGER 9200 SERIES 4WD TRACTORS:
• 9210 4WD Tractor
• 9230 4WD Tractor
• 9240 4WD Tractor
• 9250 4WD Tractor
• 9260 4WD Tractor
• 9270 4WD Tractor
• 9280 4WD Tractor
CASE IH STEIGER 9300 SERIES 4WD TRACTORS:
• 9310 4WD Tractor
• 9330 4WD Tractor
• 9350 4WD Tractor
• 9370 4WD Tractor
• 9380 4WD Tractor
• 9390 4WD Tractor
STEIGER TRACTORS:
• Bearcat 1000
• Cougar 1000 Series: CR-1225, CR-1280, KR-1225, KR-1280
• Lion 1000
• Panther 1000 Series: CP-1325, CP-1360, CP-1400, KP-1325, KP-1360, KP-1400
• Puma 1000
• Wildcat 1000
MOUNTING LOCATION:
• Front grille mount headlight position
• Hi/Lo beam dual function
• Uses original mount and wiring
• Direct plug-and-play replacement with Deutsch connector
• 2 required per tractor
OEM PART NUMBERS:
• Case IH: 20-2063T1
• Case IH: 60-6730T91
• Steiger: 60-6731T1
• Case IH/Steiger: 20-1730T91
SPECIFICATIONS:
• Product Type: LED Tractor Headlight Hi/Lo Beam
• Light Pattern: Flood Beam
• Lumens: 3,500
• Wattage: 60W (12 x 5W LEDs)
• Amperage: 5A
• Voltage: 12-24V DC
• Dimensions: 5-3/4 in x 8-1/4 in (L x W)
• Mount Location: Front Grille Mount
• Housing: Die-Cast Aluminum
• Lens: Polycarbonate
• Bracket: Stainless Steel with Correct Mounting Frame
• Connector: Deutsch Style
• Weight: 2.1 lbs
• IP67 Waterproof and Dustproof
• Uses Original Mount and Wiring
• Plug-and-Play Installation
• 2 Required Per Tractor
• Condition: New
APPLICATION:
• Case IH 9100 Series: 9110/9130/9150/9170/9180 (1986-1990)
• Case IH 9200 Series: 9210/9230/9240/9250/9260/9270/9280
• Case IH 9300 Series: 9310/9330/9350/9370/9380/9390
• Steiger Bearcat/Cougar/Lion/Panther/Puma/Wildcat 1000 Series
• Steiger CR-1225/CR-1280/KR-1225/KR-1280/CP-1325/CP-1360/CP-1400/KP-1325/KP-1360/KP-1400
⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
