Cummins :
• 3802908 (Primary Cummins Number)
• 3537886 (Holset Designation)
• 3538249 (Holset Alternate)
• 3592109 (Cross-Reference)
• 3592110 (Cross-Reference)
• 3592111 (Cross-Reference)
• 3592112 (Cross-Reference)
• 3592113 (Cross-Reference)
Case IH :
• J802908 (Case IH Designation)
• JR802908 (Reman Designation)
Additional Cross-References:
• 2837303 — Holset Alternate
• 2843653 — Holset Alternate
• 3537887 — Holset Series
• 3537888 — Holset Series
• 3537889 — Holset Series
• 3538308 — Holset Alternate
• 3802908RX — Reman
• 3802908NX — New
New Holland Cross-References:
• J592109 — New Holland Equivalent
• J592110 — New Holland Equivalent
• J592111 — New Holland Equivalent
• J592112 — New Holland Equivalent
Product Specifications:

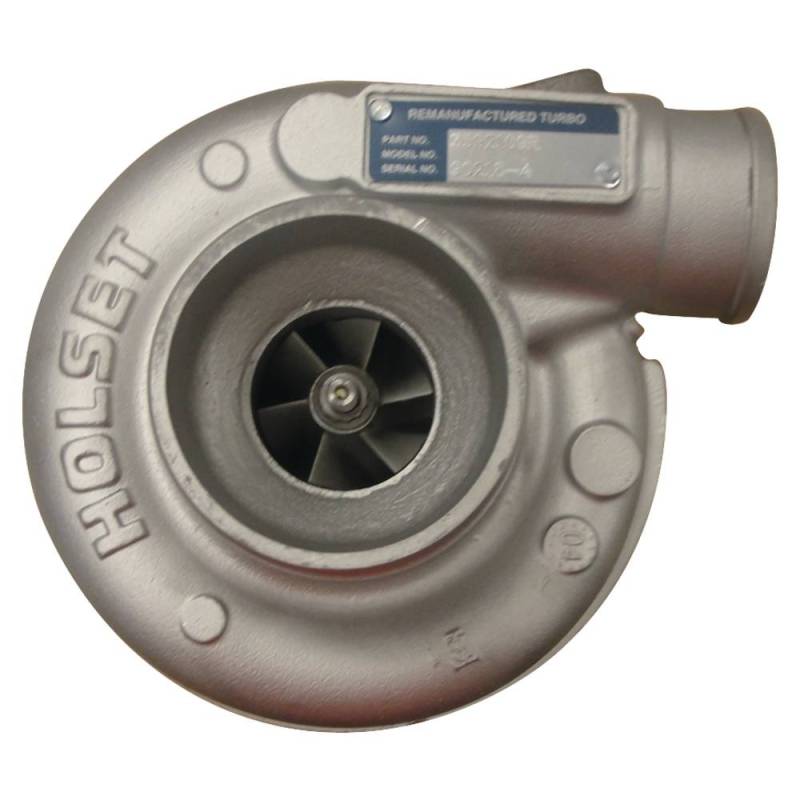

• Turbo Model: Holset HX30W
• Type: OEM Direct-Fit Replacement Turbocharger
• Bearing: Journal Bearing — Oil Cooled Only
• Compressor Inducer: 44-46mm — Exducer: 76-78mm
• Turbine Inducer: 65mm — Exducer: 52mm
• Turbine Housing: 6 cm² (0.36 A/R) — Single Scroll
• Exhaust Inlet: T3 Flange (4-Bolt)
• Oil Inlet: 12mm Fitting
• Cooling: Oil Cooled Only — No Water Lines
• Gaskets: NOT Included
• Reman Outright — No Core Required
• Compatible Engine: Cummins 4BTA / 4BT / 4T-390 (3.9L / 239ci)
• Application: Case IH 550G, 550H, 650G, 650H, 750H, 750K, 60XT, 70XT, 90XT, 95XT, 860
