Case :
• 181199A4 (Transmission Charge Pump — Latest Revision)
• 181199A3 (Previous Revision)
• 181199A2 (Earlier Revision)
• 181199A1 (Original Designation)
Cross-Reference:
• Carraro: CA134725 ( Manufacturer Part Number)
NOT Compatible With:
• Case 580K / 580SK — Use Stens 1712-4417 ( 119994A1)
• Case 550 / 650 / 750 / 850 Dozers — Use Stens 1712-4417
• Case 580M/N/SM/SN with 22 Spline — Use Stens 1712-4416 ( 87429970)
Related Parts (Sold Separately):
• Transmission Seal Kit — Separate Part Number
• Transmission Filter — Separate Part Number
• O-Ring Kit — Separate Part Number
Product Specifications:

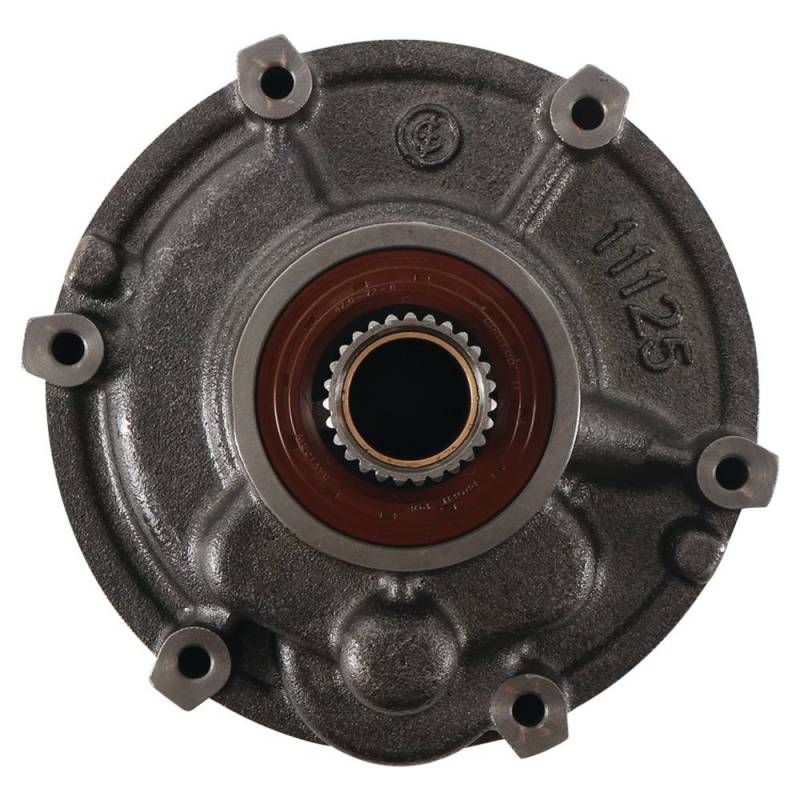

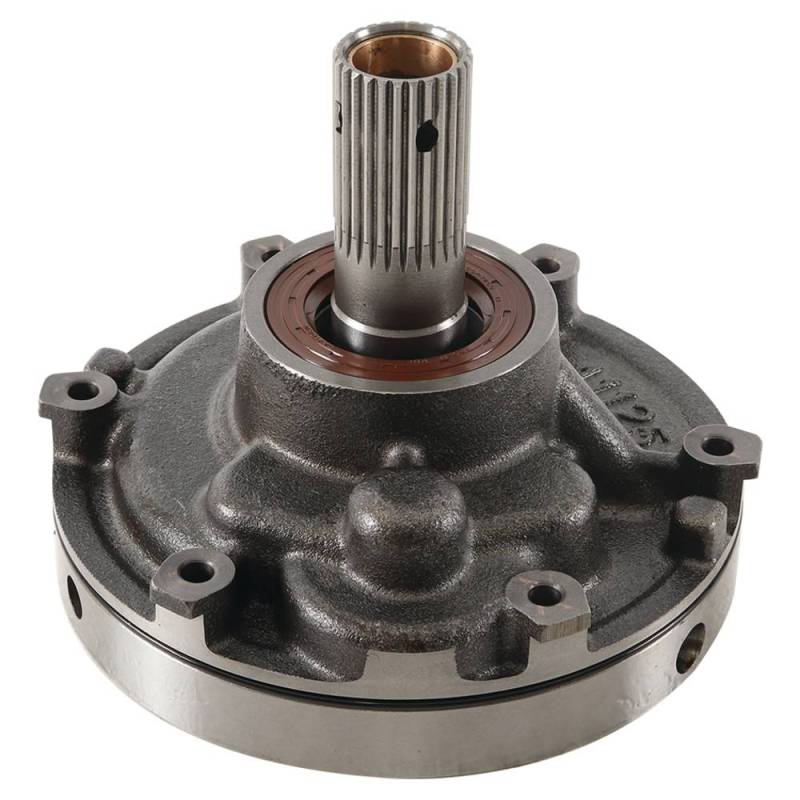

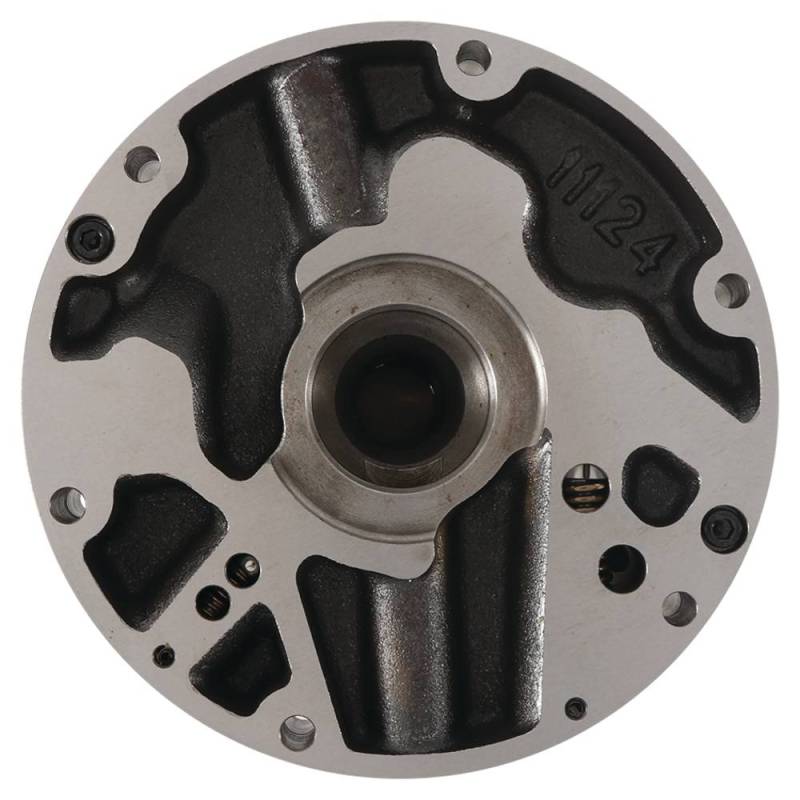

• Type: Transmission Charge Pump — Fixed Displacement Gear Pump
• Shaft Splines: 27
• Pump Body Diameter: 188 mm (7.4 inch)
• Overall Length: 8.26 inch
• Weight: 16 lbs (7.26 kg)
• Manufacturer Design: Carraro Type
• Application: Case 570LXT/MXT, 580L/SL/M/SM, 590SL/SM, New Holland LV80/U80
PRODUCT NOTICE:
