OEM PART NUMBERS:
• Husqvarna: 505247401 / 703107
• Scag: 48088 / 48530
• AYP: 3555R / 583774101 / 6941R
• Cub Cadet: 492103-R1 / IH-492103-R1
• Ford/New Holland: 236914
• Lawn-Boy: 236914
• Dayco: L5103 • Gates: 69103 • Goodyear: 851030
• Yamaha: LB103 • Reference: B100 / 5L1030
SPECIFICATIONS:
• Belt Type: B/5L Section V-Belt
• Outside Circumference: 103" (2,616mm)
• Inside Circumference: 100" (2,540mm)
• Top Width: 5/8" (15.88mm)
• Depth: 7/16" (11.11mm)
• Construction: 2-Ply Neoprene Cover
• Cord Material: Aramid (Kevlar)
• Resistance: Oil and Heat Resistant
• Cut Resistance: High
• Anti-Stretch Properties
• Condition: New
APPLICATION:
• Scag SWM/SWZ Walk-Behind Mowers 52"/61" Deck
• Husqvarna WH3615/WH3616/WH4817/WH5217 Walk-Behind
• Craftsman 917253260 Riding Mower
• Various AYP, Cub Cadet, Ford/New Holland, Lawn-Boy Applications
• Fits Various Applications by Part Number

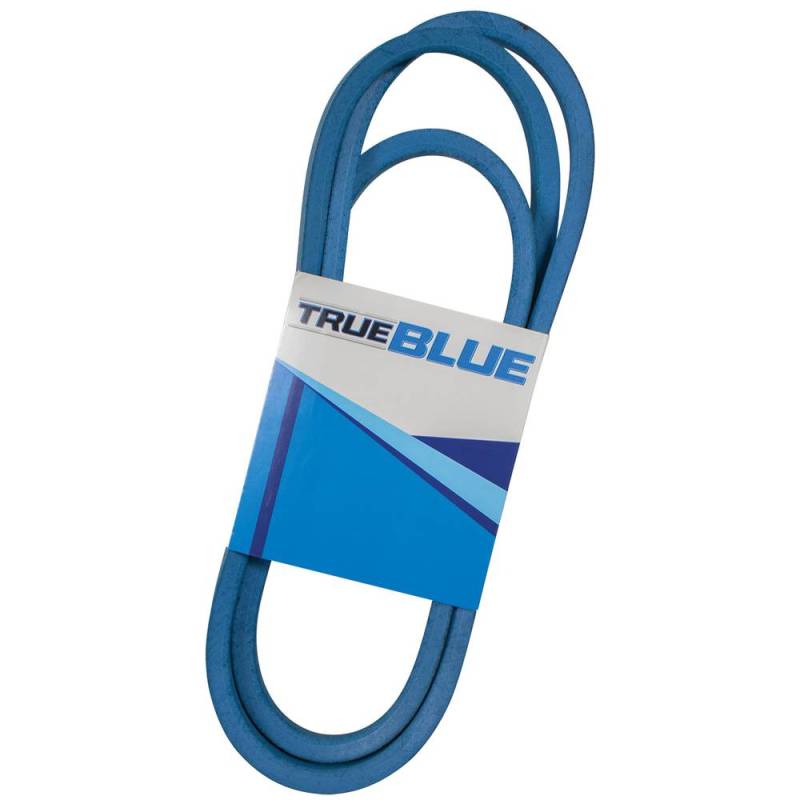

Cutter Deck Belt — Scag SWZ SWM Commercial Walk-Behind
Aramid cord reinforced V-belt for commercial walk-behind mower cutter deck applications. Replaces Scag 48088/48530, Dayco L5103, Gates 69103, Goodyear 851030, and Husqvarna 505247401. Oil and heat resistant neoprene construction. Verify part number before ordering.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
