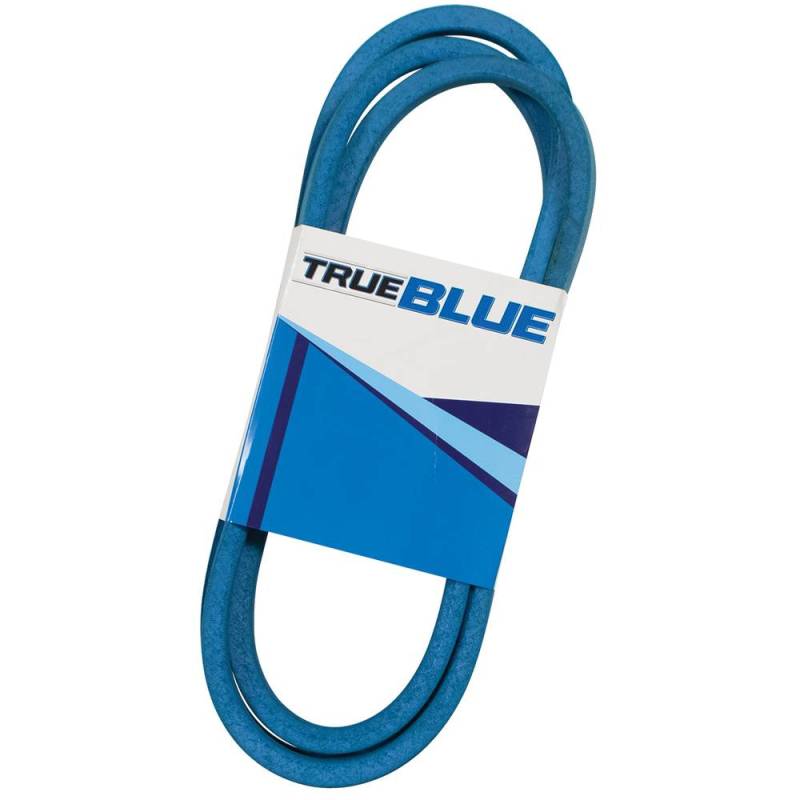

5/8" X 99" Mower Deck Belt Compatible With Kubota 76524-34710 Craftsman 3704J 6517H Std325000 Ayp

258-099A1
OEM PART NUMBERS:
• Kubota: 76524-34710
• Craftsman/Sears/AYP: 3704J / 6517H / STD325000
• Dixie Chopper: 2008B96W
• Dayco: L599
• Gates: 6999
• Goodyear: 85990
• Reference: B96 / 5L990

SPECIFICATIONS:
• Belt Type: B/5L Section V-Belt
• Outside Circumference: 99" (2,515mm)
• Inside Circumference: 96" (2,438mm)
• Top Width: 5/8" (15.88mm)
• Depth: 13/32" (10.32mm)
• Construction: 2-Ply Neoprene Cover
• Cord Material: Aramid (Kevlar)
• Resistance: Oil and Heat Resistant
• Cut Resistance: High
• Anti-Stretch Properties
• Condition: New

APPLICATION:
• Various Kubota Mower Deck Applications
• Various Craftsman/Sears/AYP Mower Applications
• Dixie Chopper Magnum 50"/60" Deck (2017-2018)
• Fits Various Applications by Part Number

5/8" x 99" Aramid V-Belt — Multi-Brand OEM Replacement
Premium aramid cord reinforced V-belt for mower deck drive applications on Kubota, Craftsman/Sears/AYP, and Dixie Chopper equipment. B/5L section profile at 5/8" x 99" with 2-ply neoprene cover provides outstanding resistance to oil, heat, abrasion, and stretching. Replaces Kubota 76524-34710, Craftsman 3704J/6517H/STD325000, Dixie Chopper 2008B96W, Dayco L599, Gates 6999, and Goodyear 85990. Confirm your equipment part number before ordering.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $95.38
Sale: $54.50
Save: 43%
Save: $40.88
Qty:
Free Shipping!

Description

KUBOTA MOWERS:
• Various Models by Part Number 76524-34710

CRAFTSMAN/SEARS/AYP MOWERS:
• Various Models by Part Number 3704J, 6517H, STD325000

DIXIE CHOPPER MAGNUM ZERO-TURN MOWERS (Engine to Deck Belt):
• Magnum 2250HP 22HP Kawasaki 50" X2 Deck (2017-2018)
• Magnum 2250R 22HP 50" Deck (2017)
• Magnum 2244HP 22HP Kawasaki 44" Deck (2017)
• Magnum 2550KO 25HP Kohler 50" X2 Deck (2017)
• Magnum 2560KO 25HP Kohler 60" Deck (2017)
• Magnum 2460HP 24HP 60" Deck (2017)
• Magnum 2460R 24HP 60" Deck (2017)
• Magnum 2450R 24HP 50" Deck (2017)
• Magnum 2750EFI 27HP EFI (2017)
• Magnum 2760EFI 27HP EFI (2017)

NOTE: This belt fits various applications by part number. Verify OEM part number from your original unit before ordering to ensure proper fitment.
