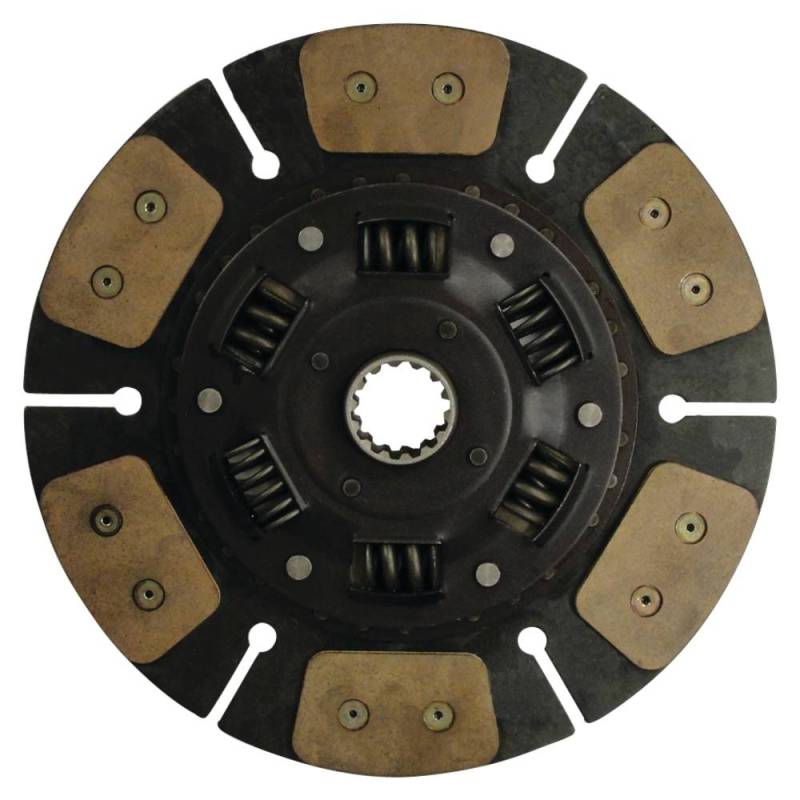

Clutch Disc Compatible With Kubota M8540dt M8540dtc M8540f M8540fc M9540dt M9540dtc M9540f M9540fc

(0) Reviews: Write first review
1912-1056A3
Kubota :
• 36430-25130 (Clutch Disc — Primary Part Number)
• 33820-25130 / 33830-25120 / 33830-25130 (Alternate Part Numbers)
• 35851-25130 / 35860-25130 / 35861-25130 (Cross-Reference)
• 36530-25131 / 3C081-25132 (Cross-Reference)
• 3F740-25120 / 3F740-25122 (Alternate Part Numbers)
• 3643025130 / 3653025131 / 3F74025120 (No-Dash Format)

:
• Stens 1912-1056 / Atlantic Quality Parts (Clutch Disc)
• Complete Tractor 1912-1056 (Clutch Disc — Kubota M6950 / M7950 / M8950)
• All States Ag Parts (Clutch Disc — Kubota 36430-25130)

Product Specifications:
• Type: Clutch Disc — Transmission
• Outer Diameter: 13 Inches (330mm)
• Inner Diameter: 1 9/16 Inches (40mm)
• Number of Splines: 14
• Pad Count: 6
• Material: Cermetallic
• Drive Type: Paddle
• Mounting: Direct Replacement
• Application: Kubota M-Series Utility Tractors (M6950 / M7950 / M8540 / M8950 / M9540)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $355.43
Sale: $203.10
Save: 43%
Save: $152.33
Qty:
Free Shipping!

Description

Kubota M6950 Series (V4000-2A Engine — 4-Cylinder 4.0L Diesel):
• M6950 — 71 HP V4000-2A 4-Cylinder 4.0L Diesel Utility Tractor (1983-1993)
• M6950DT / M6950DTC — 71 HP V4000-2A 4WD / 4WD Cab (1983-1993)
• M6950DTS / M6950S — 71 HP V4000-2A Special Variants (1983-1993)
• Engine: Bore 105.0mm / Stroke 115.0mm / Displacement 3.984L

Kubota M6970 / M7580 / M7970 Series (V3800 Engine):
• M6970DT — 71 HP V3800-DI 4-Cylinder 3.8L Diesel 4WD (2003-2008)
• M7580DT / M7580DTC — 75 HP V3800-DI-T Turbo Diesel 4WD (2003-2008)
• M7970DT — 80 HP V3800-DI-T 4-Cylinder 3.8L Turbo Diesel 4WD (2003-2008)

Kubota M7950 Series (V4300 Engine — 4-Cylinder 4.3L Diesel):
• M7950 / M7950C — 81 HP V4300 4-Cylinder 4.3L Diesel (1983-1993)
• M7950DT / M7950DTC — 81 HP V4300 4WD / 4WD Cab (1983-1993)
• M7950DTS / M7950H / M7950S / M7950W — 81 HP V4300 Variants (1983-1993)
• Engine: Bore 109.0mm / Stroke 115.0mm / Displacement 4.293L

Kubota M8540 / M8580 Series (V3800-DI-T Engine):
• M8540DT / DT1 / DTC / DTC1 / F / F1 / FC / FC1 — 85 HP V3800-DI-T (2008-2013)
• M8580DT / M8580DTC — 85 HP V3800-DI-T 4WD (2013-2017)

Kubota M8950 Series (V4300-TA Engine — 4-Cylinder 4.3L Turbo Diesel):
• M8950 / M8950C — 96 HP V4300-TA Turbo Diesel (1983-1993)
• M8950DT / M8950DTC / M8950DTS / M8950S — 96 HP V4300-TA Variants (1983-1993)
• Engine: Bore 109.0mm / Stroke 115.0mm / Displacement 4.293L (Turbocharged)

Kubota M8970 / M9540 Series (V3800-DI-T Engine):
• M8970DT — 96 HP V3800-DI-T 4-Cylinder 3.8L Turbo Diesel 4WD (2003-2008)
• M9540DT / DT1 / DTC / DTC1 / F / F1 / FC / FC1 — 95 HP V3800-DI-T (2008-2013)
• Engine: Bore 100.0mm / Stroke 120.0mm / Displacement 3.769L (Turbocharged)

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 10.3 lbs.
  • W14.5000” x H2.4000” x L14.6000”
