International Harvester :
• 375564R91 (12 inch Woven Clutch Disc — Early Number)
• 375564R92 (Woven Disc Revision)
• 384395R92 (Cerametallic Disc — 4 Pad )
• 384395R94 (Cerametallic Disc — Primary Revision)
• 394395R93 (Alternate Designation)
Cross-Reference:
• Hy-Capacity 384395 (4 Pad Standard)
• Hy-Capacity 384395 HD6 (6 Pad Heavy Duty)
Related Clutch Components (Sold Separately):
• Clutch Kit — Stens 1712-7076 (Disc + Pressure Plate)
• Pressure Plate — 12 inch (Separate Part Number)
• Release Bearing — Separate Part Number
• Pilot Bearing — Separate Part Number
NOT Compatible With:
• IH 1066 / 1086 / 1206 / 1256 — Uses 13 inch or larger disc
• Farmall H / M / Super H / Super M — Different spline configuration
• Farmall A / B / C / Super A / Super C — Uses 9 inch disc

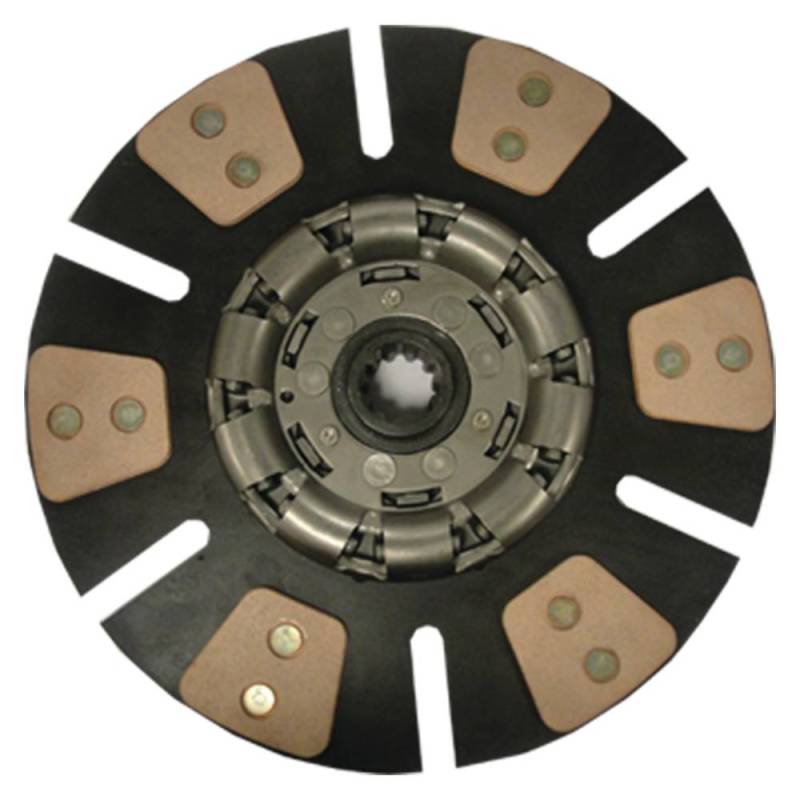

Product Specifications:
• Type: Clutch Disc — Transmission (Main Clutch)
• Friction Material: Cerametallic (6 Pad — Ceramic/Metallic Blend)
• Outer Diameter: 12 inch
• Hub Bore: 1-3/16 inch (1.1875 inch)
• Hub Splines: 11
• Hub Type: Sprung (With Torsional Damper Springs)
• Application: IH Super MTA through 3688 — Row-Crop and Industrial (1954-1985)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
