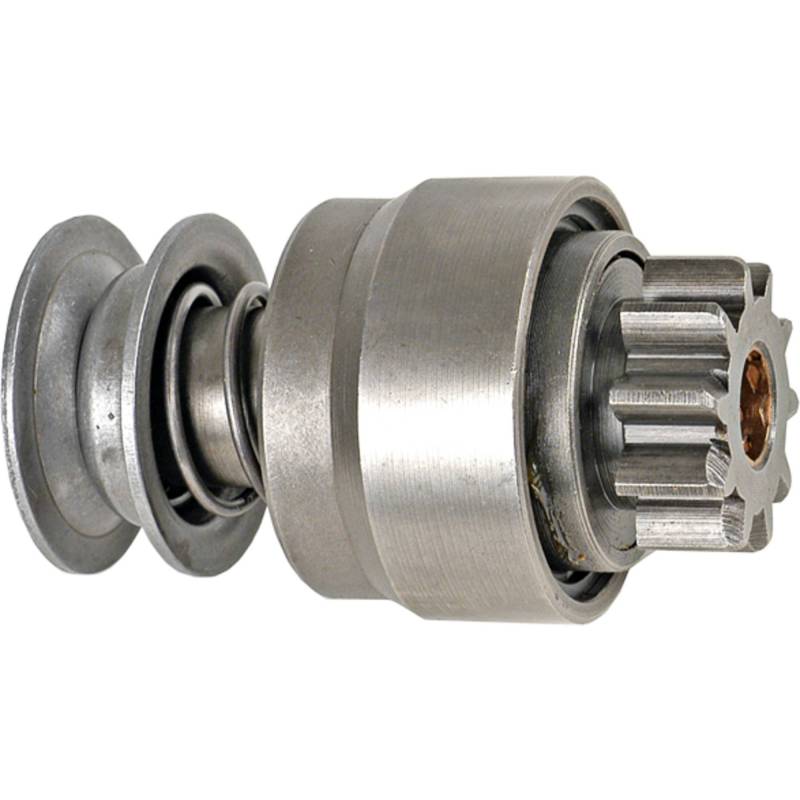

Starter Drive Assembly Compatible With Delco 10Mt 20Mt 27Mt 30Mt 35Mt Sd300 Starters 10 Tooth Ccw

Delco :
• 480434 (Starter Drive Assembly)
• 1877350 (Starter Drive Assembly)

Cross-Reference:
• SDR5026 (Starter Drive)
• 4-479LH / 3-264 (Starter Drive)
• 54-159 / 61-01-3436 / 61-01-3476 (Starter Drive)

Facet Drives:
• 10004 / 10530 (Drive Assembly)

:
• Stens 220-12311 (Drive Assembly)
• 220-12028 / 220-12104 / 220-12109 / 220-12246 (Cross-Reference)
• 220-12409 / 220-12410 (Cross-Reference)

Product Specifications:
• Type: Starter Drive Assembly — Ratchet
• Rotation: Counter Clockwise (CCW)
• Number of Teeth: 10
• Inner Diameter (ID): 14.300mm
• Gear Outer Diameter (OD): 39.500mm
• Length: 96.500mm
• Number of Splines: 3
• Spline Type: Spiral
• Drive Type: Ratchet
• Specification: Non-Indexing Small Pinion
• Wet Clutch Seal: No
• Compatible Starters: Delco 10MT / 20MT / 22MT / 25MT / 27MT / 30MT / 35MT / SD300
• Application: International Harvester Tractors / Combines / Agricultural Equipment

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
