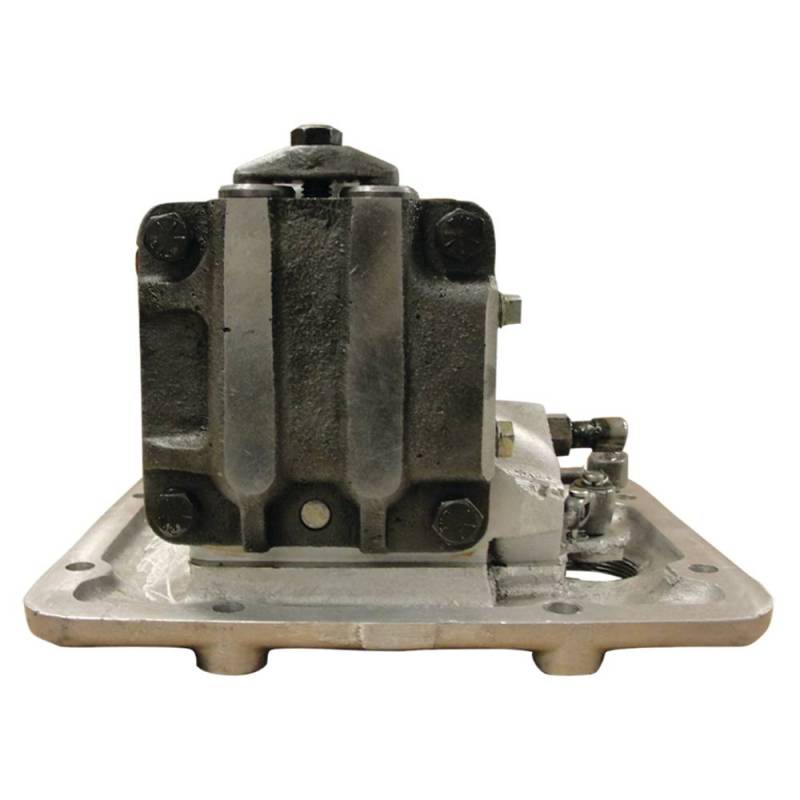

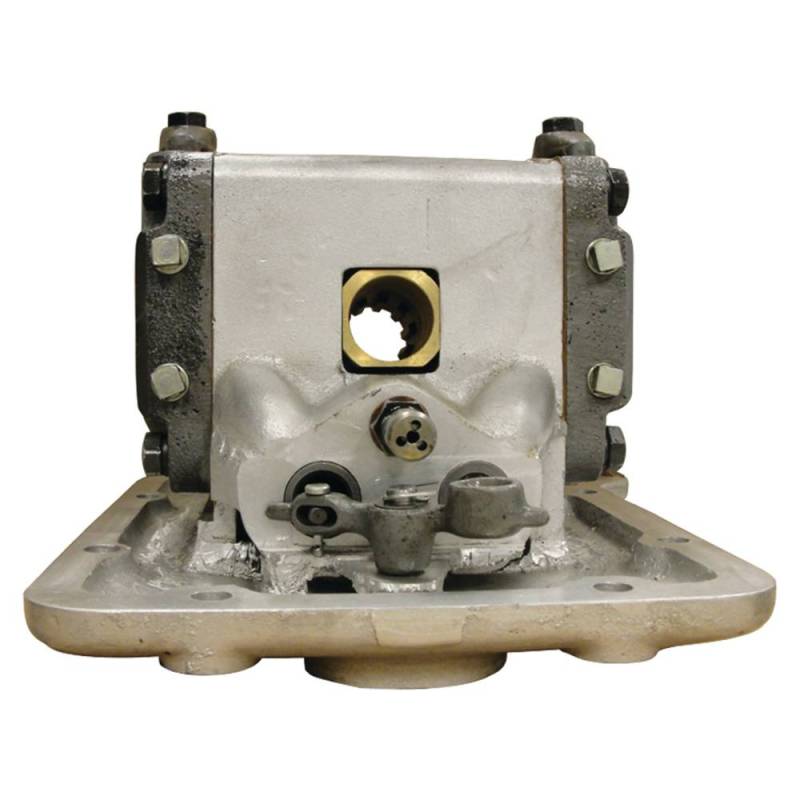

Hydraulic Pump Assembly Compatible With Ford 8N Tractor 1947 1948 1949 1950 1951 1952 3-Point Hitch

1101-1030A1

OEM PART NUMBERS:
• Ford: 8N605A / 8N605A-A
• Other: FDS2236 / 8NHYDPUMP

SPECIFICATIONS:
• Type: Complete Hydraulic Pump Assembly
• Drive Type: Splined — 12 Splines
• Volume: 23 cc
• Max PSI: 5000
• Pump Type: Single
• Relief Valve: Included
• Location: Rear End Housing (oil drain plug plate = pump housing)
• Width at Valve Chambers: 7-1/2"
• Weight: ~28 lbs
• Condition: New

FORD 8N APPLICATION:
• Ford 8N Tractor (1947-1952)
• 119.7ci Flathead I4 23HP
• 3-Point Hitch Hydraulic Lift System

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $1,345.54
Sale: $768.88
Save: 43%
Save: $576.66
Qty:
Free Shipping!

Description


FORD 8N TRACTOR (1947-1952):
• Ford 8N (1947-1952) — 119.7ci (2.0L) Flathead Inline 4-Cylinder 23HP

INSTALLATION DETAILS:
• Complete hydraulic pump assembly
• Mounts in rear end housing — oil drain plug plate serves as pump housing
• Width at valve chambers: 7-1/2 inches
• Weight: Approximately 28 lbs
• Minor grinding of pump housing opening may be needed for installation
• PTO shaft twisting inside pump is common on removal — if separation is difficult, consider replacement shaft

SPECIFICATIONS:
• Type: Single Hydraulic Pump (Complete Assembly)
• Drive: Splined — 12 Splines
• Volume: 23 cc
• Max PSI: 5000
• Relief Valve: Included
• Location: Rear End Housing
• Condition: New (NOT Remanufactured)

NOTE: This is the complete hydraulic pump assembly for the Ford 8N 3-point hitch system. Verify OEM part number before ordering.
