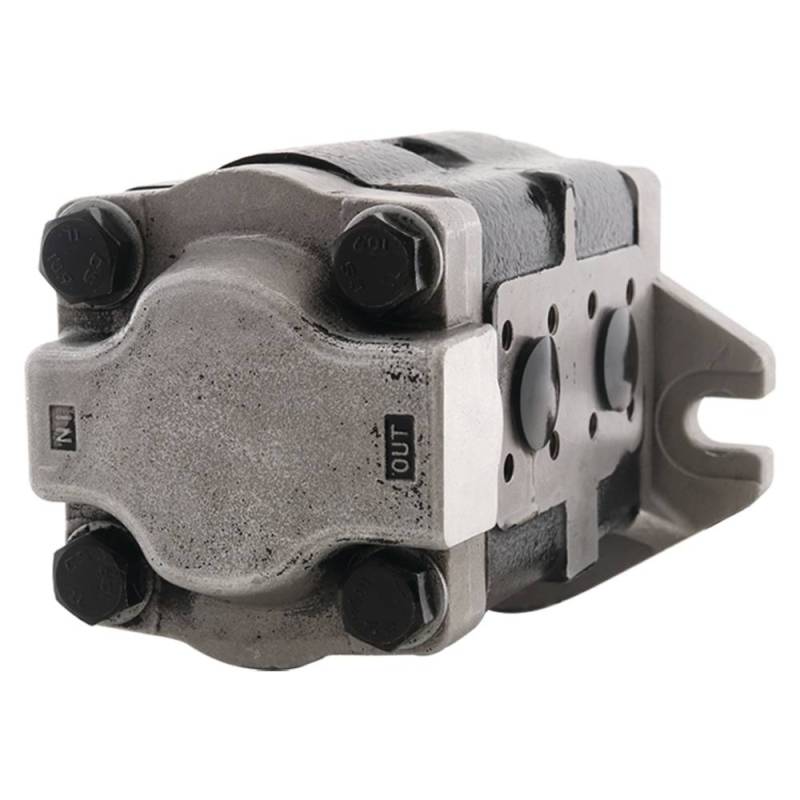

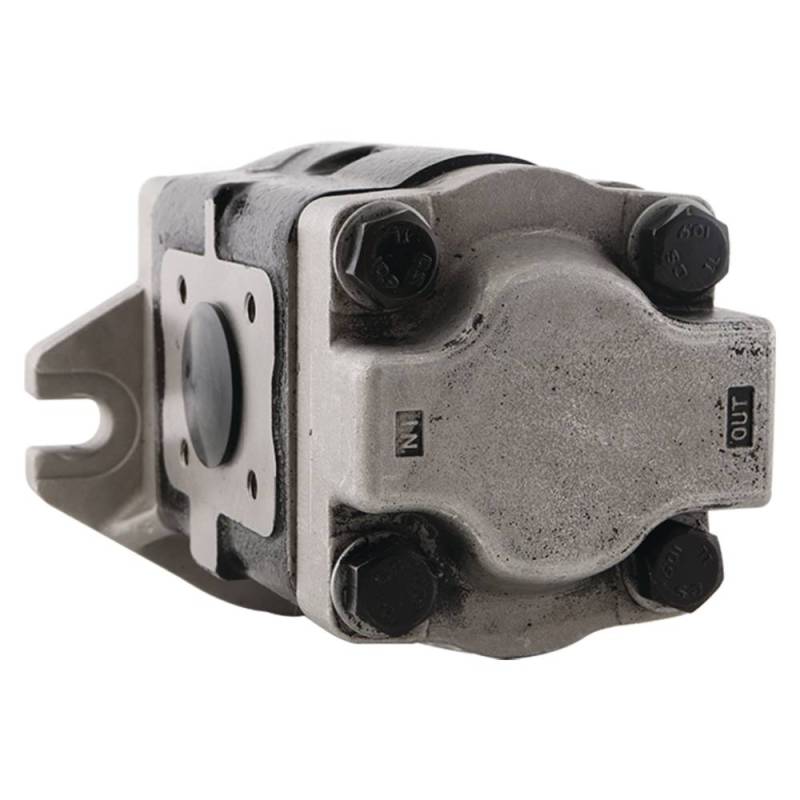

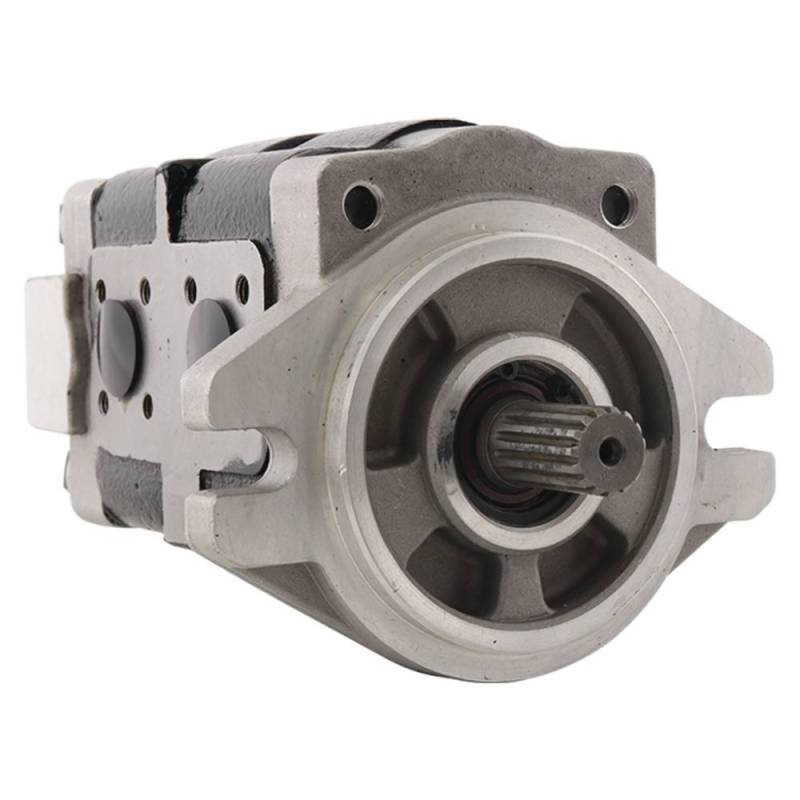

Hydraulic Gear Pump Tandem Double 16 Cc 8 Cc Displacement Compatible With Kubota M5040 M5140 M5660

1901-1001A6
Kubota :
• 3C001-82200 (Hydraulic Pump — Original Part Number)
• 3C001-82202 (Hydraulic Pump — Revision B)
• 3C001-82203 (Hydraulic Pump — Revision C)
• 3C001-82204 (Hydraulic Pump — Current Part Number)
• 3C00182200 / 3C00182202 / 3C00182203 / 3C00182204 (No-Dash Format)

:
• Stens 1901-1001 / Atlantic Quality Parts (Hydraulic Pump)
• Complete Tractor 1901-1001 (Hydraulic Pump — Kubota M-Series)
• Eparts E-3C001-82204 (Hydraulic Pump — Kubota M5040/M6040)
• All States Ag Parts (Hydraulic Pump — Kubota 3C001-82204)
• Abilene Machine AM3C001-82204 (Hydraulic Pump)

Product Specifications:
• Type: Tandem Double Hydraulic Gear Pump
• Front Section Displacement: 16 cc (0.98 cu in)
• Rear Section Displacement: 8 cc (0.49 cu in)
• Weight: 11.86 lbs (5.4 kg)
• Construction: Cast Iron Housing — Steel Gears
• Mounting: Direct Bolt-On Replacement
• Application: Kubota M5040 / M5140 / M5660 / M6040 / M6060 / M7040 / M7060 / M8540

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $2,421.30
Sale: $1,383.60
Save: 43%
Save: $1,037.70
Qty:
Free Shipping!

Description

Kubota M5040 Series (52 HP) — 2007-2012:
• M5040DT / M5040DT1 / M5040DTC / M5040DTC1
• M5040F / M5040F1 / M5040FC / M5040FC1
• M5040HD / M5040HD1 / M5040HDC / M5040HDC1

Kubota M5140 Series (52 HP) — 2007-2012:
• M5140DT / M5140DTC / M5140F / M5140FC / M5140HD / M5140HDC

Kubota M5660 Series (59 HP) — 2008-2013:
• M5660SUH / M5660SUHD

Kubota M6040 Series (64 HP) — 2007-2013:
• M6040DT / M6040DT1 / M6040DTC / M6040DTC1
• M6040F / M6040F1 / M6040FC / M6040FC1
• M6040HD / M6040HD1 / M6040HDC / M6040HDC1
• M6040HDNB / M6040HDNB1

Kubota M6060 Series (64 HP) — 2013-2018:
• M6060HD / M6060HDC / M6060HFC

Kubota M7040 Series (71 HP) — 2007-2013:
• M7040DT / M7040DT1 / M7040DTC / M7040DTC1
• M7040F / M7040F1 / M7040FC / M7040FC1
• M7040HD / M7040HD1 / M7040HDC / M7040HDC1 / M7040HDCLTD
• M7040HDNB / M7040HDNB1 / M7040HDNBC
• M7040SUH / M7040SUHD

Kubota M7060 Series (71 HP) — 2013-2018:
• M7060HD / M7060HDC / M7060HFC

Kubota M8540 Series (85 HP) — 2008-2013:
• M8540HDNB / M8540HDNB1 / M8540HDNBC / M8540HDNBPC

Pump Specifications:
• Type: Tandem Double Hydraulic Gear Pump
• Front Section: 16 cc (0.98 cu in)
• Rear Section: 8 cc (0.49 cu in)
• Weight: 11.86 lbs (5.4 kg)
• Construction: Cast Iron Housing — Steel Gears
• Application: Power Steering and Hydraulic System

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W6.5000” x H6.2000” x L8.1000”
  • Free Shipping!
