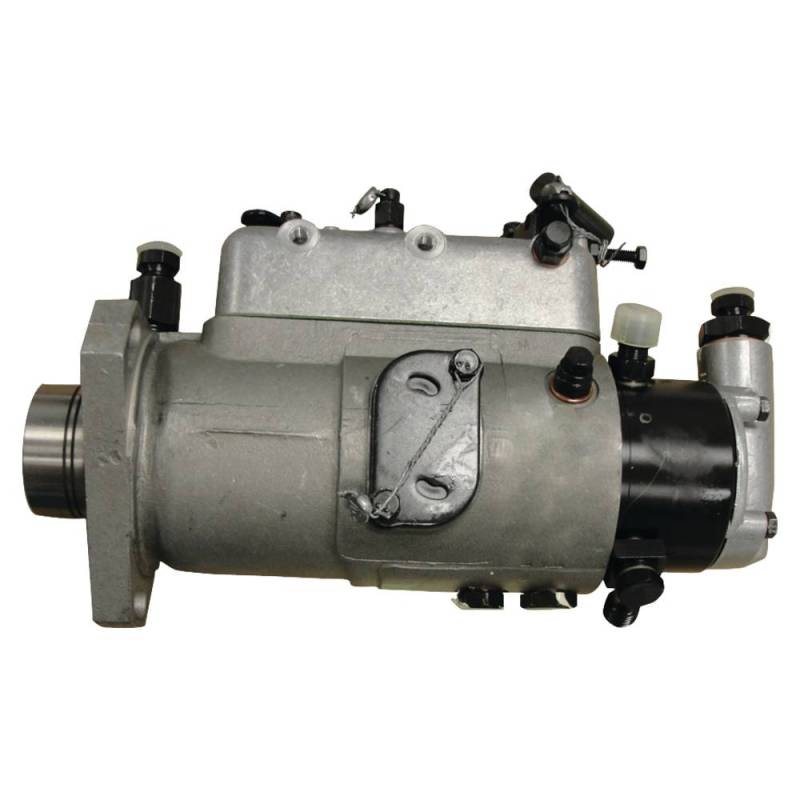

Cav Dpa Fuel Injection Pump Perkins A3.152 Compatible With 1960-1965 Massey Ferguson 35 50 Massey

OEM PART NUMBERS:
• Massey Ferguson: 881306M91 / 881306V91
• Massey Ferguson: 890981M91
• Massey Ferguson: 3639020M1
• Massey Ferguson: 1447168M91
• Massey Ferguson: HM881306
• CAV / Lucas / Delphi: 3230F030 / 3230030
• CAV / Lucas / Delphi: 3241F030
• CAV (rebuild): 3830F030
• CAV Cross: 3232158 / 3232178 / 3232F158
• CAV / Perkins Ref: 36185 / 36823 / 36827 / 36962
• Landini: 136962
• Lucas Setting Code: LW58/600/2/2390

SPECIFICATIONS:
• Type: CAV DPA Rotary Fuel Injection Pump
• Engine: Perkins A3.152 / A3.144 (Indirect Injection, 3-Cyl Diesel, 2.5L 152ci)
• Cylinders: 3
• CAV Number: 3230F030 (must match original exactly)
• Rotation: CW (Clockwise)
• Mounting: Three Hole Mount
• Max Pump Speed: 2500 RPM
• Governor: Mechanical
• Max Peak Injection Pressure: 500 bar
• Max Plunger Stroke: 1.5mm
• Plunger Diameter: 8.5mm
• No. of Plungers: 2 | Pumping Outlets: 3
• Max Power per Engine Cylinder: 20kW
• Automatic Advance: No | Hydraulic Timing Device: No
• Gasket: Included
• Condition: New

APPLICATIONS:
• MF 35 (3-Cyl Diesel) — Perkins A3.152 37HP (1960-1965)
• MF 50 / Massey Harris 50 — Perkins A3.152 45HP
• MF 202 / 203 / 204 / 205 Industrial — Perkins A3.152 (Indirect Injection)
• Landini w/ Perkins A3.152

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
