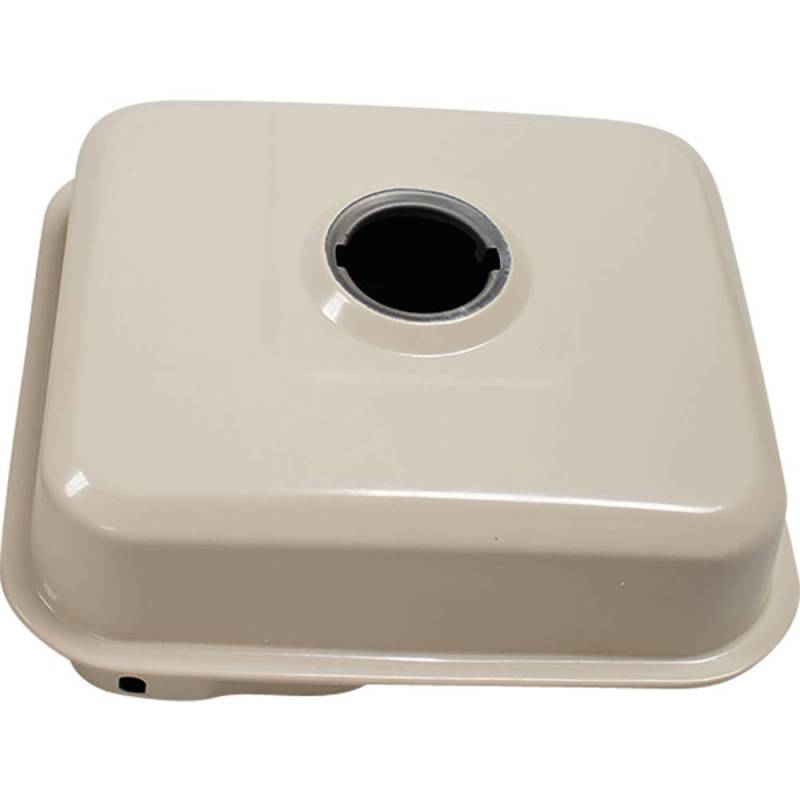

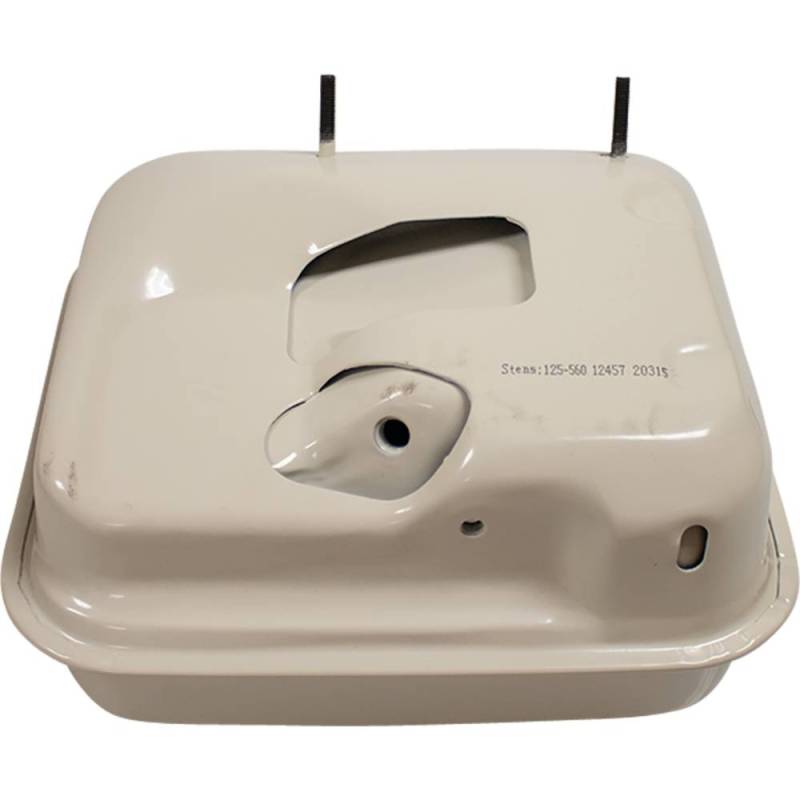

Fuel Tank 3.6 Quart 2 Inch Filler Neck Polyethylene Compatible With Honda Gx140 Gx160 Gx200 Snapper

125-560A1
Honda Numbers:
• 17510-ZE1-030ZA • 17510-ZE1-020ZA • 17510-Z0T-010ZC
• Honda Code: 3683661 / 8644015

Numbers:
• Oregon 07-600

Product Specifications:
• Capacity: 3.6 Quarts (0.95 Gallons / 3.6 Liters)
• Filler Neck ID: 2 in (51mm)
• Material: High-Density Polyethylene (HDPE)
• Dimensions: 10 in x 10 in x 8 in (W x D x H)
• Fuel Line Connection: 3/8 in
• Cap Type: 1/4 Turn Vented
• Includes: Tank, Cap, Strainer, Fuel Line Connector
• Ethanol Limit: 10% Maximum (E10)
• Maximum Fill: 3/4 Full

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $109.76
Sale: $62.72
Save: 43%
Save: $47.04
Qty:
Free Shipping!

Description

Honda Engines:
• GX140 Cyclone (5 HP, 144cc) — Single-Cylinder OHV 4-Stroke — 1983-Present
• GX160 (5.5 HP, 163cc) — All K1 Variants (QA2, QX2, QMX2, TX2, SX/B)
• GX200 (6.5 HP, 196cc) — All Variants Including GX200D-QAPW

Snapper Rear-Tine Tillers:
• CICFR5505HV — 16.5 in Rear-Tine Tiller (5.5 HP)
• ICFR5505BV — 16.5 in Rear-Tine Tiller (5.5 HP)
• CP215518HV

Troy-Bilt Tillers:
• 21A-665B766 Pro-Line FRT Rear-Tine Tiller — 2007-2015

Details

Shipping Information

  • Item Requires Shipping
  • 2.9 lbs.
  • W9.0000” x H6.2000” x L9.6000”
  • Free Shipping!
