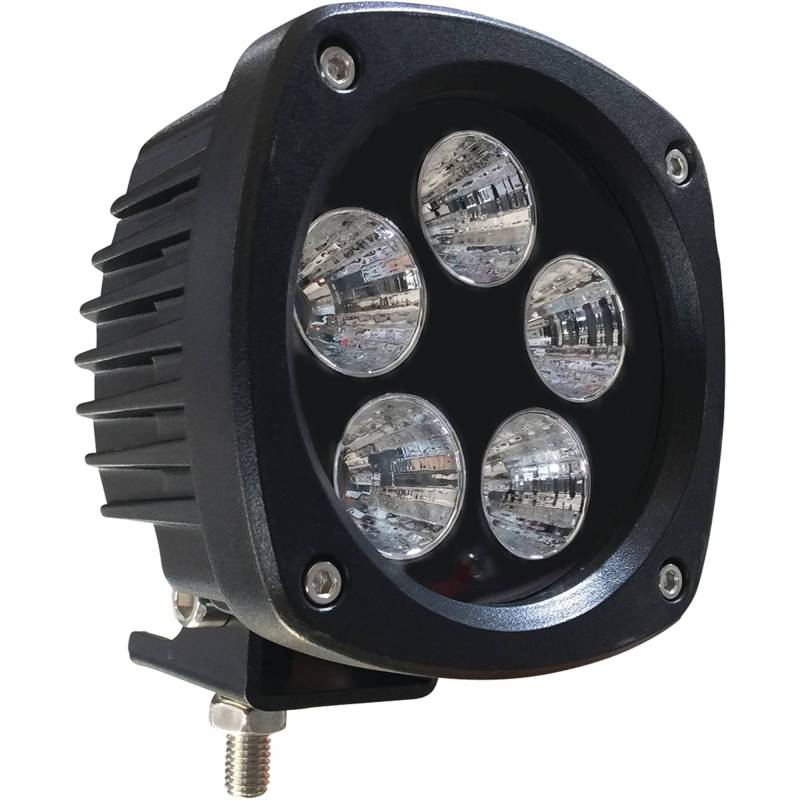

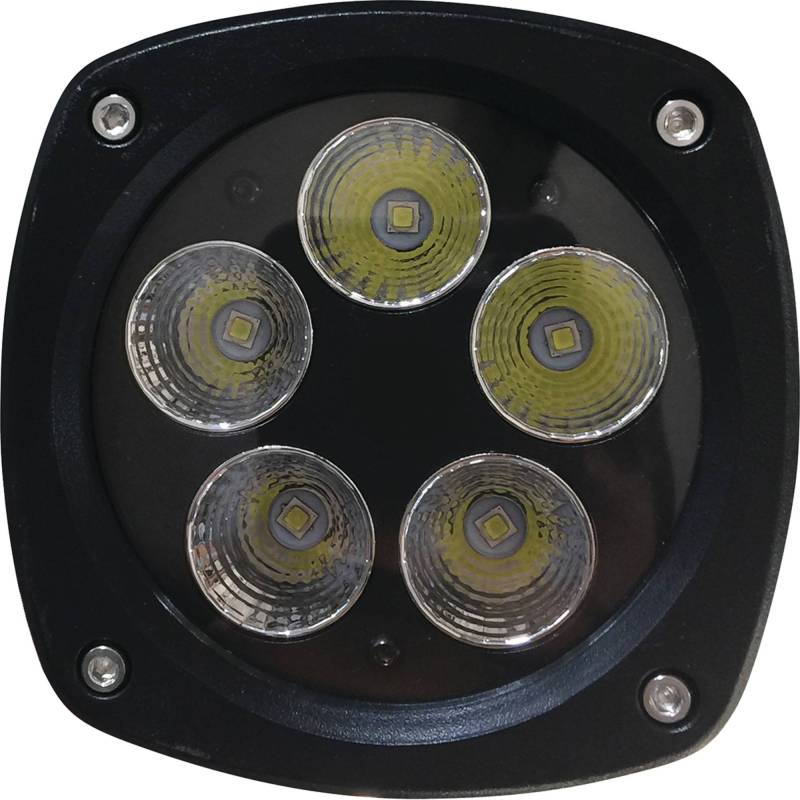

Led Flood Light Compatible With Caterpillar 902 906H 908H 914G 924G 930H 938H 950G 966H 972H 980H

TL500FA5
OEM PART NUMBERS:
• Caterpillar: 383-8634 / 386-1717 / 386-1718 / 214-2968 / 290-5749 / 254-8155 / 346-9593 / 388-6274 / 234-4323-4329 / 388-6291-6294 / 386-1722 / 386-1723 / 319-7377-7382 / 201-1422 / 201-1423 / 424-5603 / 212-9347 / 214-2696 / 384-9610 / 219-6482-6486 / 272-6641 / 417-0977 / 359-3426-3446 / 332-9402 / 347-9427 / 168-1953-1960 / 171-2065-2066 / 180-1300 / 227-5978-5979 / 257-3168-3171 / 147-0319 / 153-2073 / 161-0908 / 161-3509 / 162-3294 / 164-7600 / 353-9420 / 366-7803 / 381-8979 / 157-0305
• Case IH: 87555142 / 84236850 / 87584890 / 47682620 / 47682629
• John Deere: AT305931 / AT443224 / AT443223 / AT135486 / AT135485
• Komatsu: 37A-06-12430 / 423-06-33130
• Gehl: 241117

SPECIFICATIONS:
• Product Type: LED Flood Light — Compact Square
• Generation: 2
• Light Pattern: Flood — 60° Beam Angle
• Lumens: 6,900
• Wattage: 50W
• Amperage: 4.1A
• Voltage: 9-32V DC
• Dimensions: 4-1/4" L × 4-1/2" W × 3" D
• Connection: Deutsch Style with Pigtail Jumper

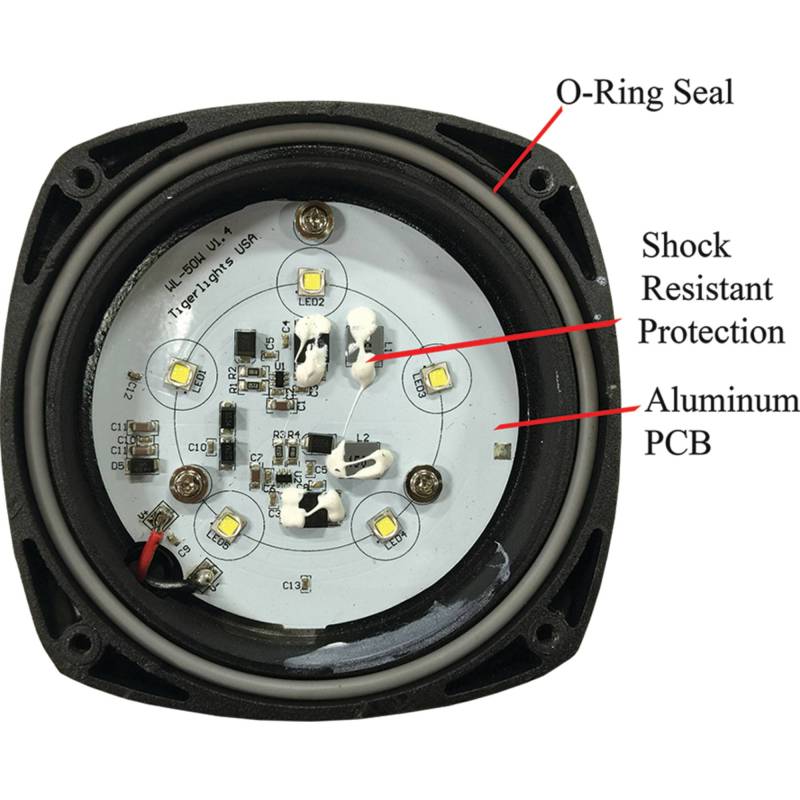

• Housing: Die-Cast Aluminum
• Lens: Polycarbonate
• Waterproof: IP68 Rated
• Certifications: RoHS / EMC Filtered
• Lifespan: 50,000+ Hours
• Warranty: Limited Lifetime
• Includes: Stainless Steel Hardware and Mounting Bracket
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $286.16
Sale: $163.52
Save: 43%
Save: $122.64
Qty:
Free Shipping!

Description

CATERPILLAR MOTOR GRADERS:
• 12H/12HNA/12K/12M/12M2/12M2AWD/12M3/12M3AWD
• 120HNA/120K/120K2/120M/120M2/120M2AWD/120MAWD
• 135HNA/140H/140HNA/140K/140K2/140M/140M2/140M2AWD/140M3/140M3AWD
• 143H/14H/14LAWD/14M/160H/160HNA/160K/160M/160M2/160M3
• 163H/16H/16M/16M3/18M3/24M

CATERPILLAR OFF-HIGHWAY TRUCKS:
• 725/730/735/740/770/772/775F/776D/777D/784B/785B/789/789B/797/844

CATERPILLAR BACKHOE LOADERS:
• 416D/420D/424D/428D/432D/442D

CATERPILLAR SKID STEERS / COMPACT TRACK LOADERS:
• 216B/226B/226B2/226B3/232B2/236B2/246C/247B/252B/256C
• 262B/262C/268B/272C/272D/272D XHP

CATERPILLAR WHEEL LOADERS:
• 902/906/906H/907H/908/908H/914G/924G/928G/930G/930H
• 938G/938H/950G/962G/966G/966H/972G/972H/980H/990/990H

CATERPILLAR EXCAVATORS / FORESTRY / SCRAPERS:
• 301.5/301.6/301.8/302.5/303.5E2CR/304ECR/305.5E2CR/305E2CR
• 308E2CRSB/320CLU/320CU/330B/345DL
• 511/521/522/532/541/543/545/551/552/584/1290T/2290
• 385B-L/5130/5230/5412/5522
• 627F/627G/631D/633D/637D/639D/651E/963C/973C

Details

Shipping Information

  • Item Requires Shipping
  • 2.3 lbs.
  • W5.2500” x H4.2500” x L8.2500”
  • Free Shipping!
