OEM PART NUMBERS:
• Parker: FEM-502-8FP
SPECIFICATIONS:
• Type: Flat Face Hydraulic Quick Connect Nipple (Male Half)
• Series: FEM Series (Non-Spill, Flat Face)
• Body Size: 1/2 Inch
• Port End: 1/2 Inch NPT (1/2-14 NPSF Female Pipe Thread)
• Rated Pressure: 3625 PSI (250 Bar)
• Rated Flow: 12 GPM
• Valve Type: Double Shut-Off, Non-Spill
• Face Type: Flat Face (Flush Face)
• Sleeve: Push to Connect
• Material: Steel
• Seals: Nitrile / Polyurethane
• Operating Temperature: -40°F to +250°F
• Spillage: 0.020 ml Max Per Disconnect
• Air Inclusion: 0.070 ml Max Per Disconnect
• Standard: ISO 16028 / HTMA
• Compatibility: Connects with FEM Series Couplers
• Condition: New
APPLICATION:
• Skid Steer Loaders (Thomas T105-T320 and General Auxiliary Hydraulics)
• Construction Equipment (Compact Track Loaders, Excavators, Backhoes)
• Agricultural Equipment (Tractors, Loaders, Implements)
• Forestry, Industrial Hydraulics, and Mobile Equipment

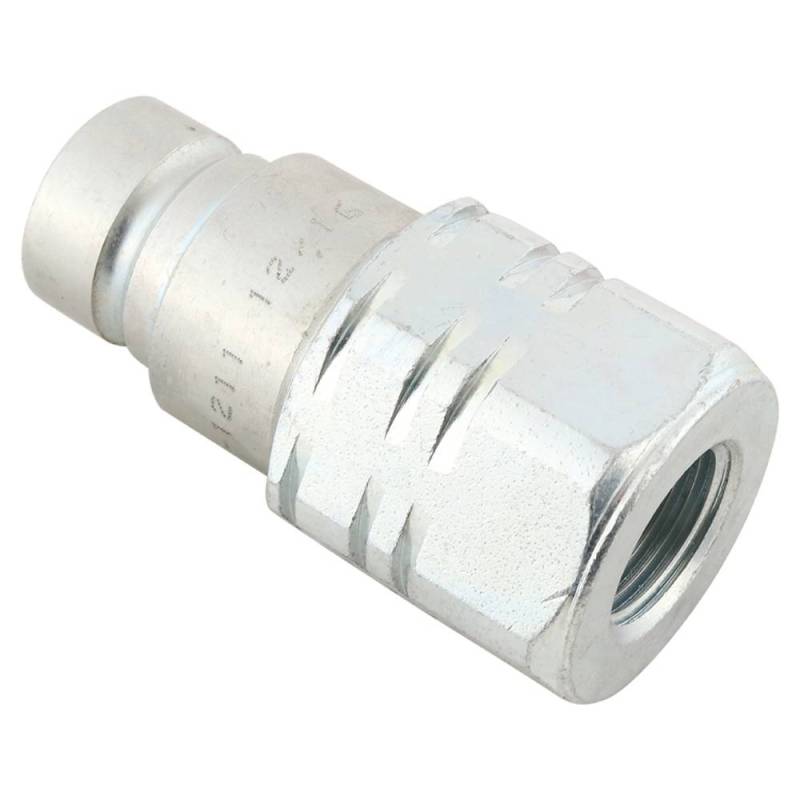

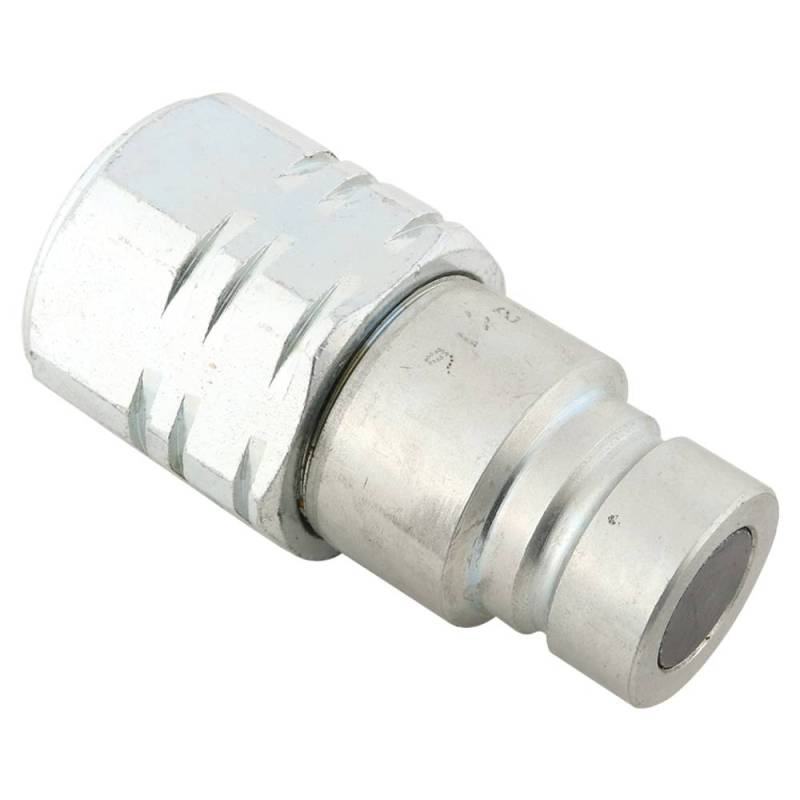

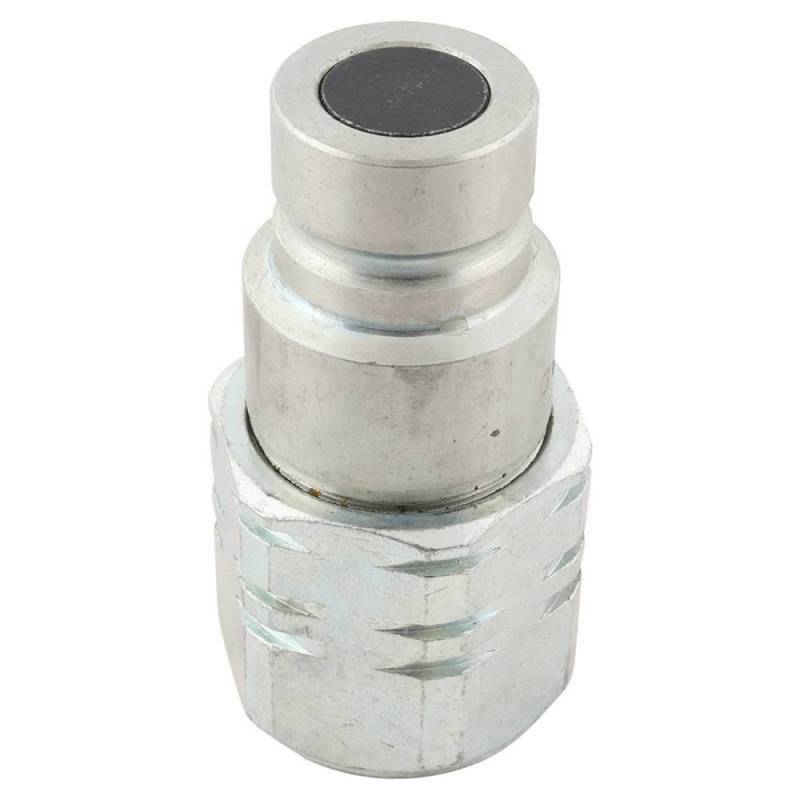

1/2 Inch Flat Face Hydraulic Quick Connect Nipple - FEM Series ISO 16028 HTMA
Brand new FEM Series flat face hydraulic quick connect nipple (male half) with 1/2-inch NPT female pipe thread port (1/2-14 NPSF). Features double shut-off non-spill design that minimizes spillage (0.020 ml max) and air inclusion (0.070 ml max) during connection and disconnection. Push to connect sleeve with steel body, nitrile/polyurethane seals, and flat face design rated at 3625 PSI (250 bar) with 12 GPM flow capacity. Operating temperature range of -40°F to +250°F. ISO 16028 / HTMA compliant — globally interchangeable with other flat face couplings meeting ISO 16028 standard. Ideal for skid steer loaders, construction equipment, agricultural machinery, and industrial hydraulic applications. Direct OEM replacement for Parker FEM-502-8FP.
