OEM PART NUMBERS:
• 15117542 / 15117-542
• 658-15117542
• 266014006542
• Cross Reference: 343-153
SPECIFICATIONS:

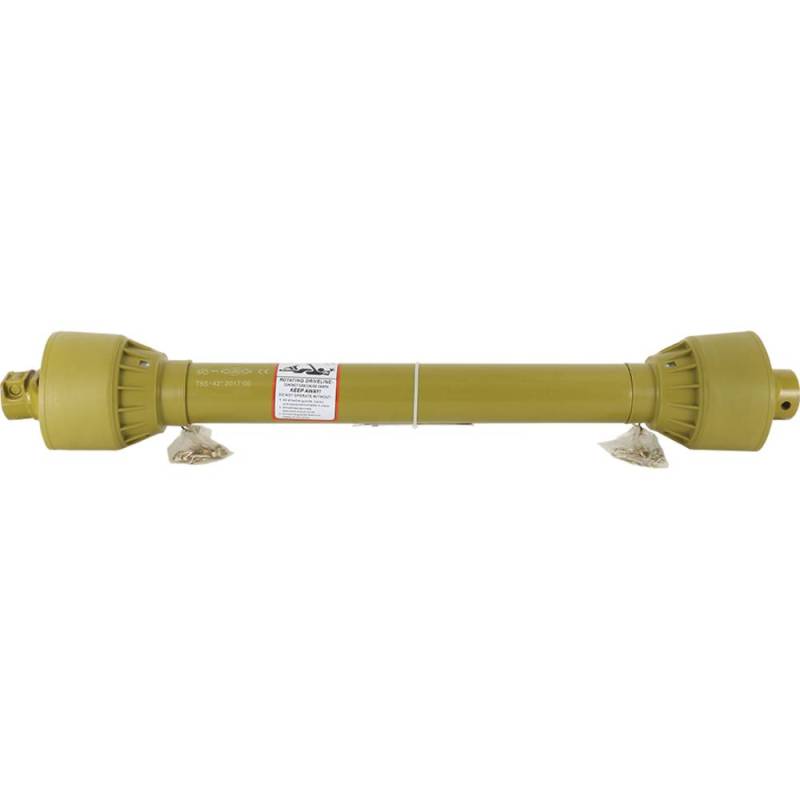

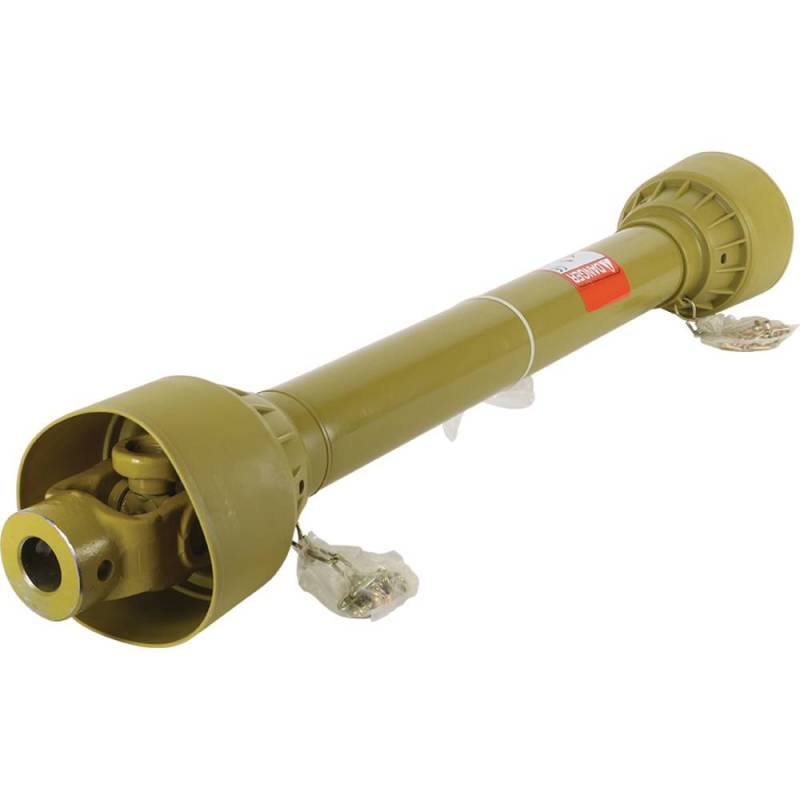

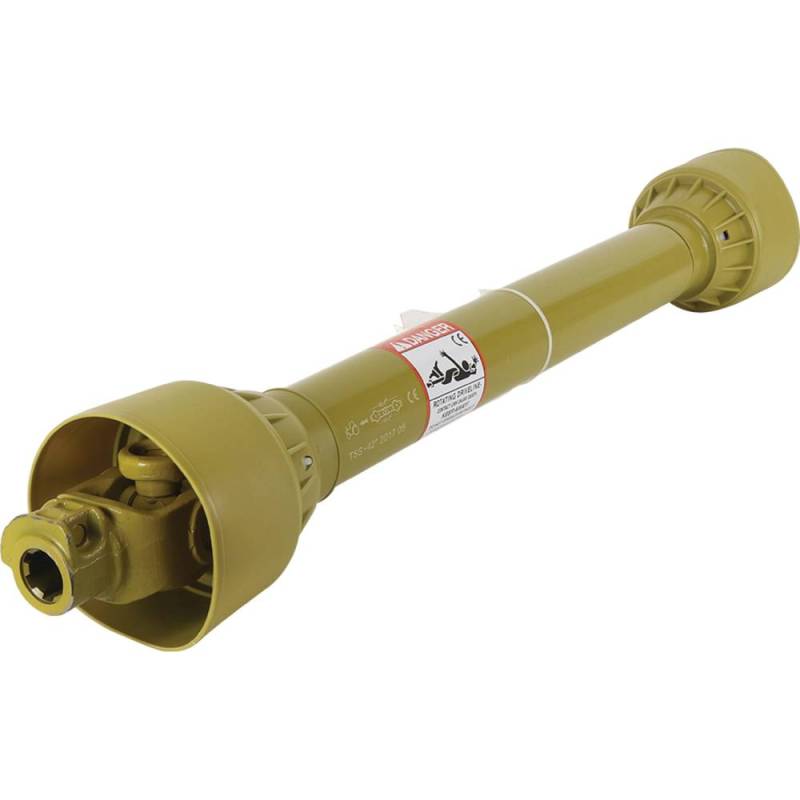

• Type: PTO Driveline Shaft — Series 5 Tri-Tube with Shear Bolt
• Collapsed Length: 42"
• Tractor End: 1-3/8" 6 Spline Quick Disconnect
• Implement End: 1-3/8" Round Bore with 1/2" Hole (Shear Bolt)
• Shear Bolt Required: 1/2" Grade 2 (Not Included)
• RPM: 540
• PTO Rated Horsepower: 47 HP
• Torque: 620 Nm at 540 RPM
• Tube Type: Tri-Tube (Triangular)
• Universal Joint Material: 20CrMnTi Carburized Steel
• Inner Shaft Material: Q345 Steel
• Safety Shield: Full-Length Guard Included
• Cross & Bearing Kits: Replaceable
• Certification: CE Certified
• Condition: New
COMPATIBLE IMPLEMENT TYPES:
• Rotary Cutters (Bush Hog, Land Pride, Woods, King Kutter, Howse, Rhino, County Line)
• Finish Mowers (Land Pride FDR Series)
• Brush Cutters and Brush Hogs
• Rotary Tillers up to 47 HP
• Post Hole Diggers
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
