PART NUMBERS:
• Stens: 3013-6001, 30136001
SPECIFICATIONS:
• Series: 4 (4S)
• PTO Rated HP: 35 HP at 540 RPM
• Drive Tube Type: Tri-Tube (Tri-Lobe)
• Collapsed Overall Length: 37-3/8 Inches (950mm)
• Maximum Extended Length: 48 Inches (1220mm)
• PTO Speed: 540 RPM

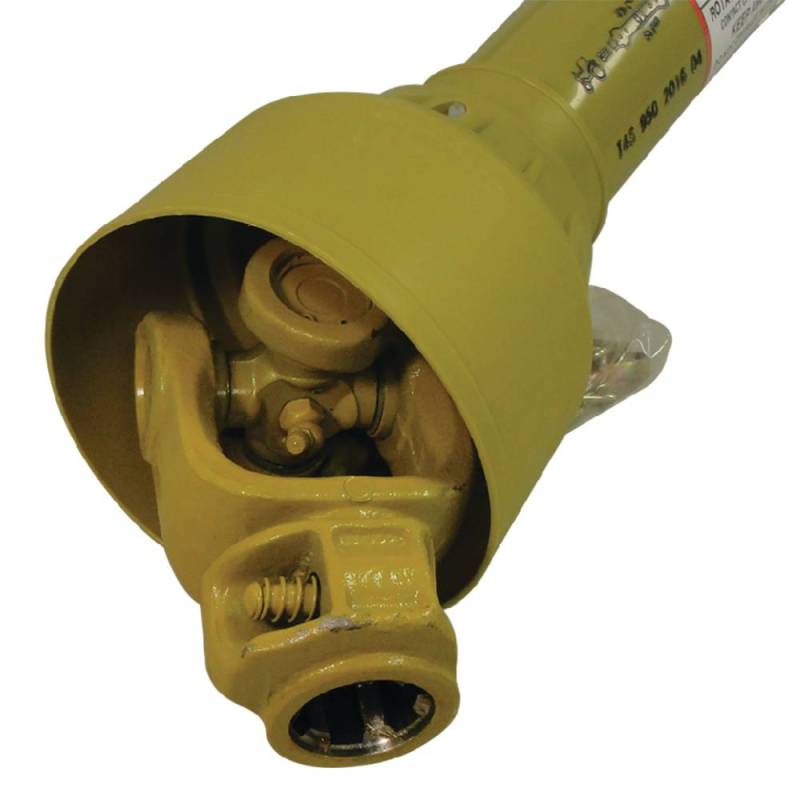

• Tractor End: 1-3/8" x 6 Spline Push Lock Coupler

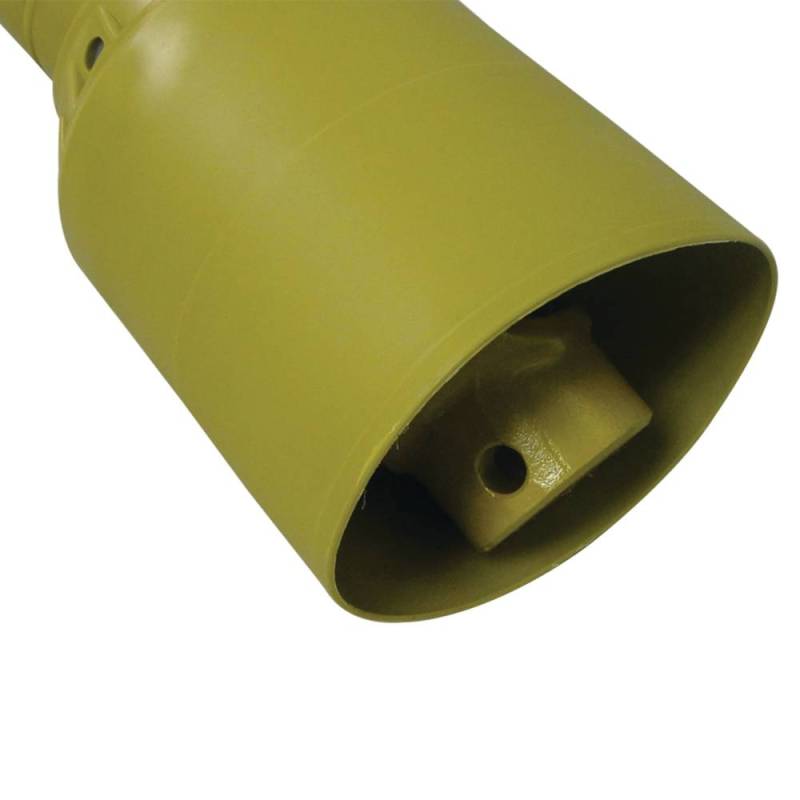

• Implement End: 1-3/8" Smooth Bore (Round)
• Shear Bolt: Requires 1/2" Grade 2 Shear Bolt (not included)
• Inner Diameter: 1-3/8" Both Ends
• Number of Splines: 6 (Tractor End Only)
• Construction: Heavy-Duty Welded Steel
• Safety: Shear Bolt Overload Protection
APPLICATIONS:
• Universal — Fits any tractor with 1-3/8" 6-spline 540 RPM PTO
• Implement end fits any 1-3/8" smooth bore (round) input shaft
• Rotary Cutters, Finish Mowers, Tillers, Post Hole Diggers
• Snowblowers, Hay Equipment, Wood Chippers, Spreaders
• John Deere, Kubota, New Holland, Massey Ferguson, Ford, Case IH
