OEM PART NUMBERS:
• Case IH: 20-1730T91
SPECIFICATIONS:

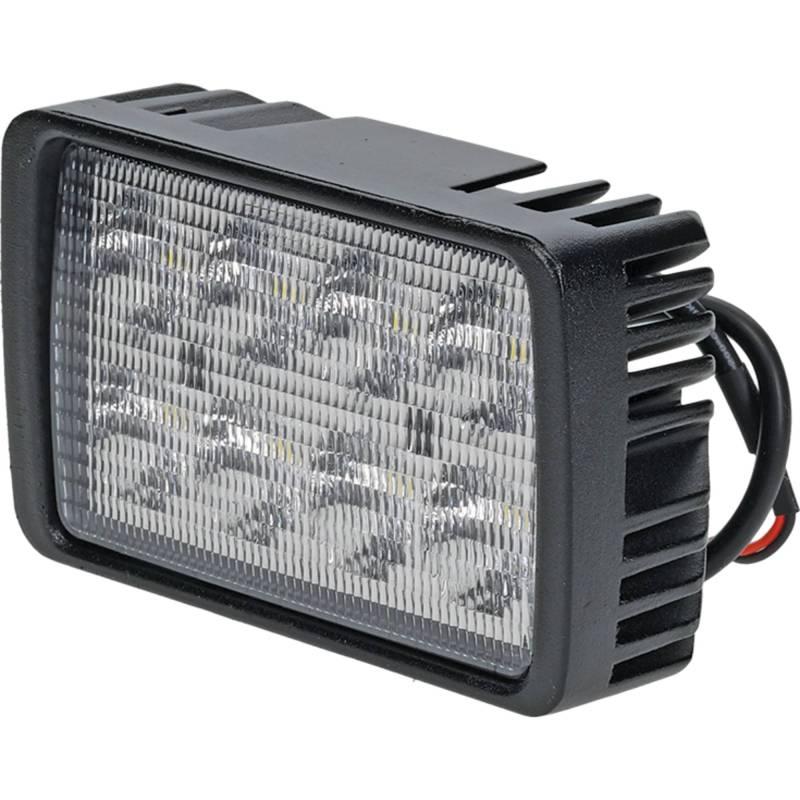

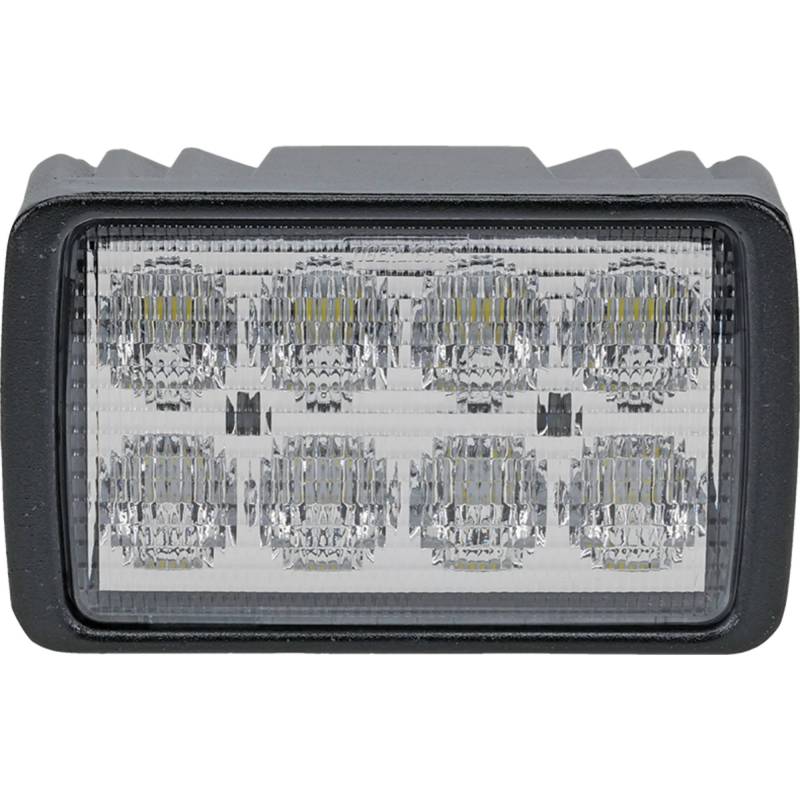

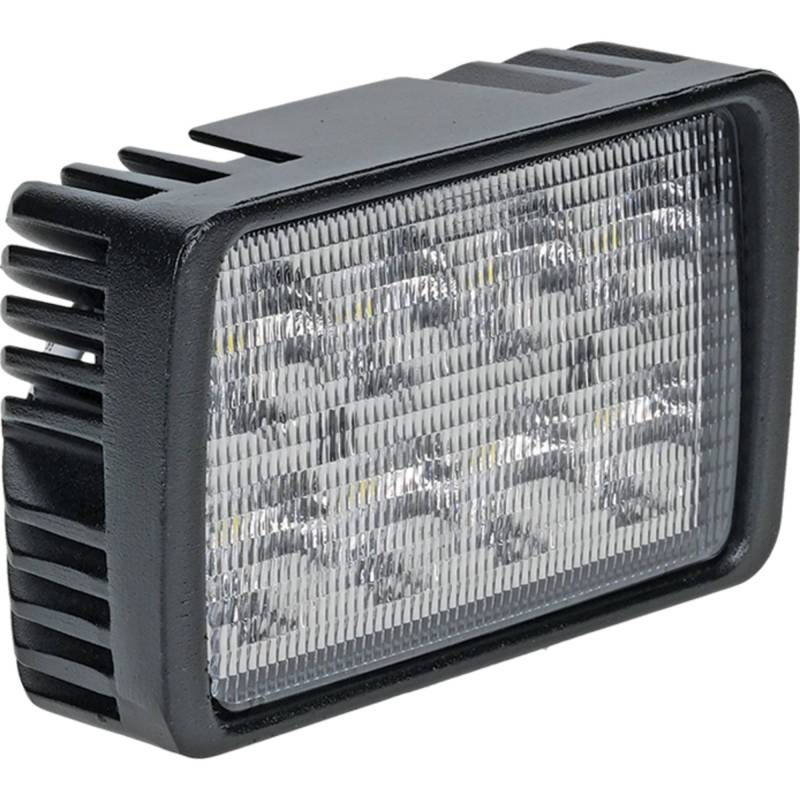

• Product Type: LED Fender Light with Hollow Bolt
• Light Pattern: Flood Beam
• Mount Type: Hollow Bolt Fender Mount
• Lumens: 3,600
• Wattage: 40W
• Amperage: 3.33A
• Voltage: 12-24V DC
• Length: 6 in
• Width: 3-1/2 in
• Depth: 3 in
• Weight: 2.8 lbs
• Housing: Die-Cast Aluminum with Heat Sink
• Lens: Polycarbonate
• IP68 Waterproof and Dustproof
• EMI/RFI Filtered
• Uses Original Wiring
• Includes: Deutsch Connector, Stainless Steel Hardware, Mounting Bracket
• Installation Note: Requires installing connector after running wires through hollow bolt
• Supersedes Case IH 20-1730T91
• Condition: New
APPLICATION:
• Case IH Steiger 9100/9200/9300 Series Tractors
• Case IH CX, Magnum, MX Series Tractors
• Ford New Holland T8, T8000, TG Series Tractors
FITS:
CASE IH STEIGER 9100 SERIES TRACTORS:
• 9110/9130/9150/9170/9180
CASE IH STEIGER 9200 SERIES TRACTORS:
• 9210/9230/9240/9260/9270/9280
CASE IH STEIGER 9300 SERIES TRACTORS:
• 9310/9330/9350/9370/9380/9390
CASE IH CX SERIES TRACTORS:
• CX50/CX60/CX70/CX80/CX90/CX100
CASE IH MAGNUM TRACTORS:
• Magnum 215/235/245/255/260/275/305/335
CASE IH MX SERIES (MAXXUM) TRACTORS:
• MX80C/MX90C/MX100/MX100C/MX110/MX120/MX135/MX150/MX170
• MX180/MX200/MX210/MX215/MX220/MX230/MX240/MX245
• MX255/MX270/MX275/MX285/MX305
FORD NEW HOLLAND T8000 SERIES TRACTORS:
• T8010/T8020/T8030/T8040/T8050
FORD NEW HOLLAND T8 SERIES TRACTORS:
• T8.275/T8.300/T8.320/T8.330/T8.350/T8.360/T8.380/T8.390/T8.410/T8.420/T8.435
FORD NEW HOLLAND TG SERIES TRACTORS:
• TG210/TG215/TG230/TG245/TG255/TG275/TG285/TG305
OEM PART NUMBERS:
• Case IH: 20-1730T91
SPECIFICATIONS:
• Product Type: LED Fender Light with Hollow Bolt
• Light Pattern: Flood Beam
• Mount Type: Hollow Bolt Fender Mount
• Lumens: 3,600
• Wattage: 40W
• Amperage: 3.33A
• Voltage: 12-24V DC
• Length: 6 in
• Width: 3-1/2 in
• Depth: 3 in
• Weight: 2.8 lbs
• Housing: Die-Cast Aluminum with Heat Sink
• Lens: Polycarbonate
• IP68 Waterproof and Dustproof
• EMI/RFI Filtered
• Uses Original Wiring
• Includes: Deutsch Connector, Stainless Steel Hardware, Mounting Bracket
• Installation Note: Requires installing connector after running wires through hollow bolt
• Supersedes Case IH 20-1730T91
• Condition: New
APPLICATION:
• Case IH Steiger 9100/9200/9300 Series Tractors
• Case IH CX, Magnum, MX Series Tractors
• Ford New Holland T8, T8000, TG Series Tractors
⚠️ Verify OEM part number from your original unit before ordering to ensure proper fitment.
