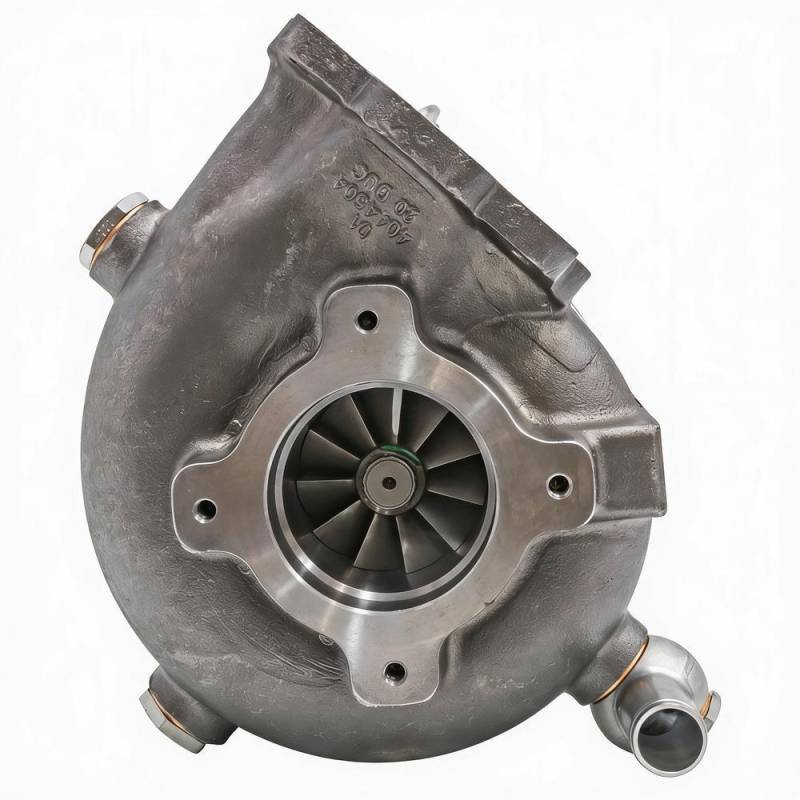

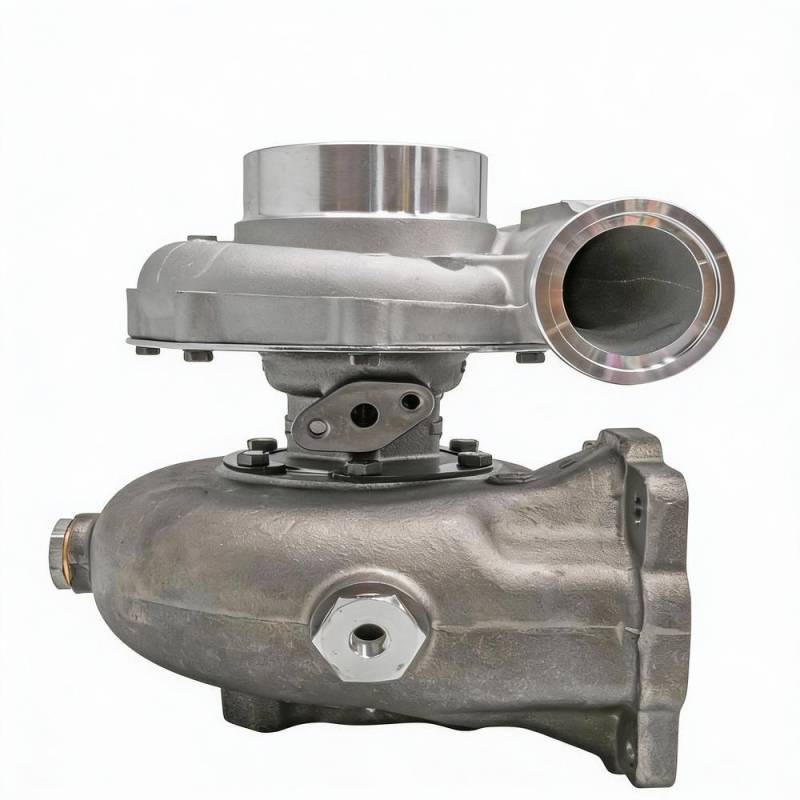

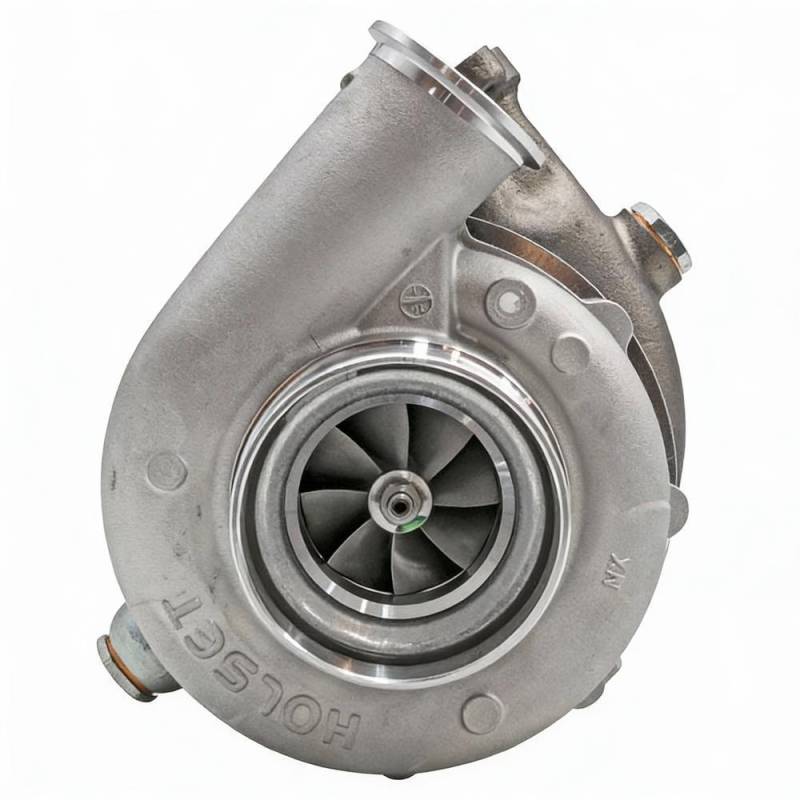

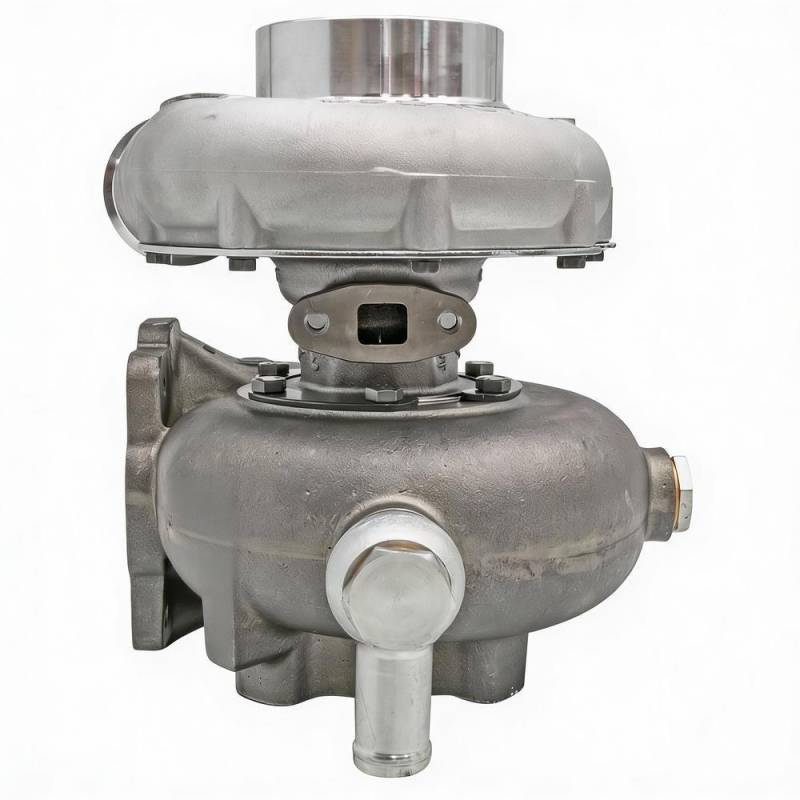

New OEM Replacement Turbocharger Compatible With Cummins 6Cta 6Cta 8.3L 430Hp 1996-2008 Marine By

PRODUCT TYPE: TURBOCHARGER

SPECIFICATIONS:
MODEL: H2D / H2DM
CONDITION: NEW
TYPE: FIXED GEOMETRY TURBOCHARGER
COOLING TYPE: WATER COOLED TURBINE HOUSING, OIL COOLED BEARING HOUSING
BEARING TYPE: JOURNAL BEARING
MANUFACTURER: HOLSET (CUMMINS TURBO TECHNOLOGIES)
ENGINE FITMENT: CUMMINS 6CTA, 6CTA M2
DISPLACEMENT: 8.3L (506 CUBIC INCHES)
POWER RATING: 430HP, 450HP
CHRA ASSEMBLY: 3545751H
COMPRESSOR WHEEL: 64MM INDUCER / 94MM EXDUCER (7+7 BLADES)
TURBINE WHEEL: 85.95MM INDUCER / 72MM EXDUCER (11 BLADES)
COMPRESSOR HOUSING ANGLE: 258°
TURBINE HOUSING ANGLE: 270°

REPLACES:
OEM: CUMMINS
OEM INTERCHANGE PART NUMBERS: 170-032-0153 170-032-1251 1700320153 1700321251 3538623 3538624 3545751 3545751H 3802886 3802886NX 3802886RX
