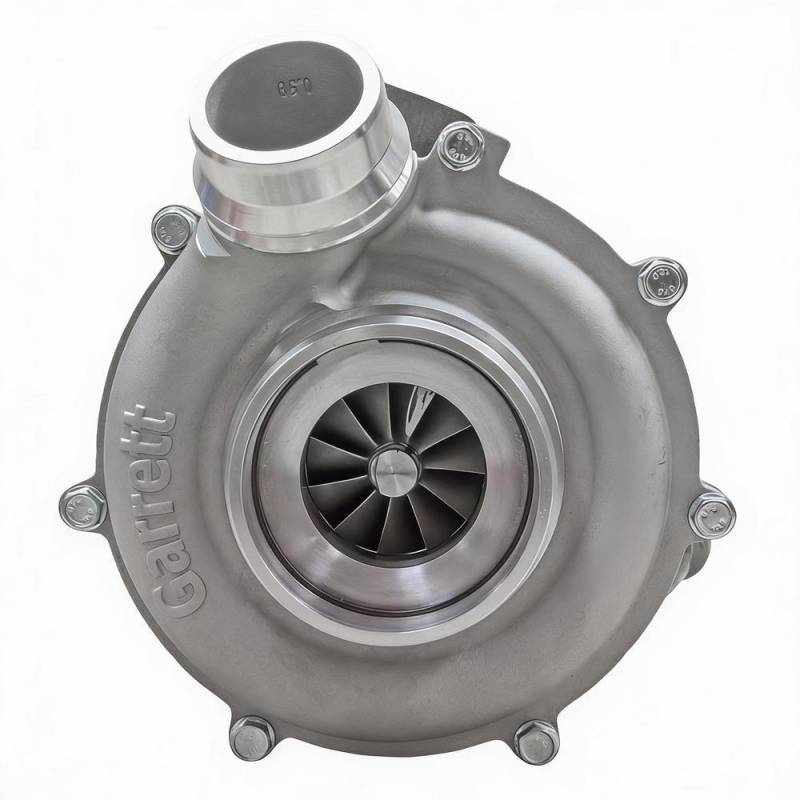

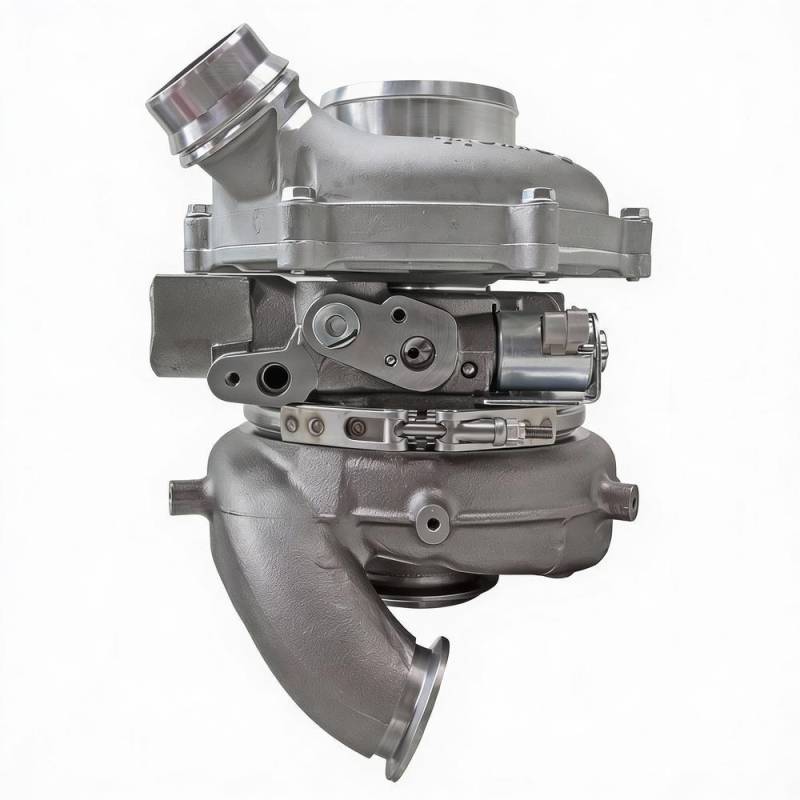

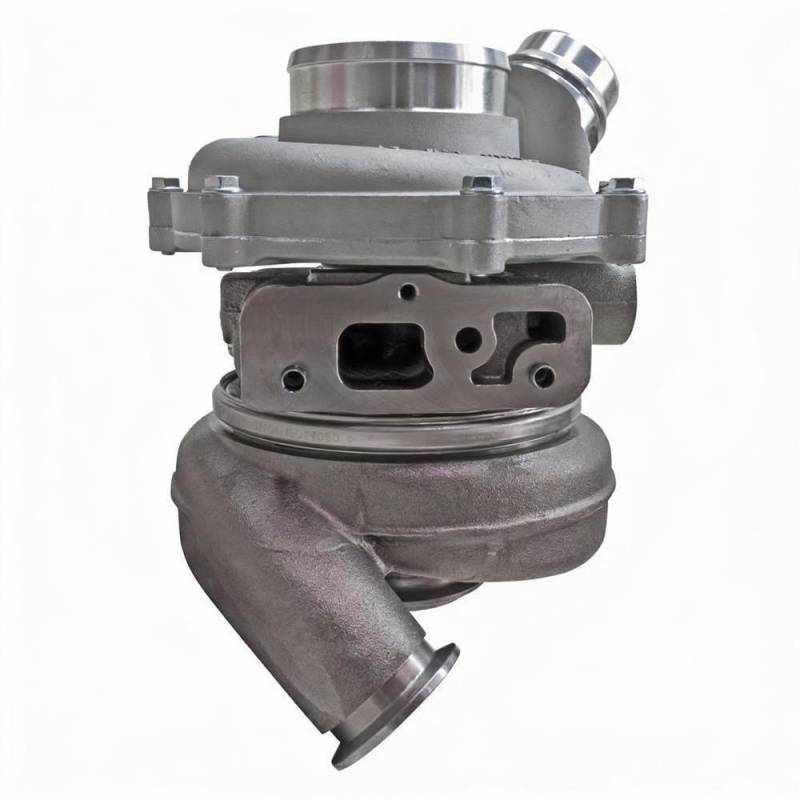

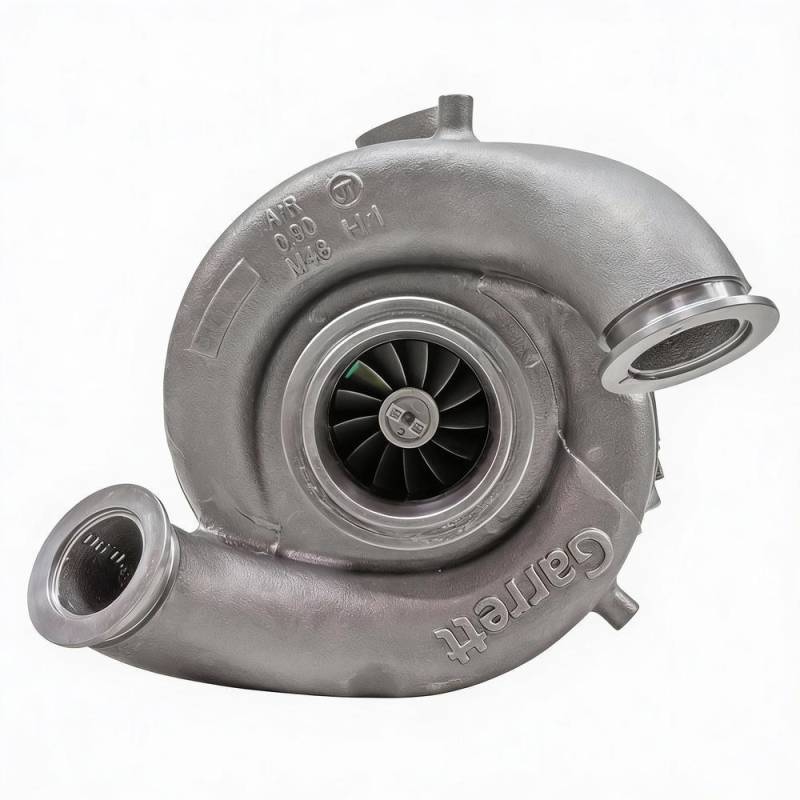

PRODUCT TYPE: TURBOCHARGER
SPECIFICATIONS:
MODEL: AVNT3788
CONDITION: NEW
TYPE: VGT (VARIABLE GEOMETRY TURBINE)
TECHNOLOGY: SINGLE SEQUENTIAL TURBO (SST) WITH A DOUBLE-SIDED COMPRESSOR WHEEL.
ACTUATION: ELECTRO-HYDRAULIC AVNT.
COMPRESSOR WHEEL: 61MM X 90.5MM, 11 BLADE.
TURBINE WHEEL: 70.5MM X 62.5MM, 13 BLADE.
COOLING: WATER COOLED BEARING HOUSING
BEARING SYSTEM: LOW-FRICTION BALL BEARING.
MANUFACTURER: GARRETT
ENGINE FITMENT: FORD 6.7L POWER STROKE V8 DIESEL
ENGINE POWER OUTPUT: 440 HP @ 2800 RPM.
ENGINE TORQUE OUTPUT: 860 FT-LB @ 1600 RPM.
REPLACES:
OEM: FORD
OEM INTERCHANGE PART NUMBERS: 100TBC672 100TBC672S 170-025-1669 170-025-3168 825249-0001 825249-5001 825249-5001S 825249-9001 892147-0001 892147-5001 892147-9001 892147-9001S FC3Q-9G438-AC FC3Z-6K682-A FC3Z-6K682-B HC3Q-9G438-AC TBC672 TBC672S
