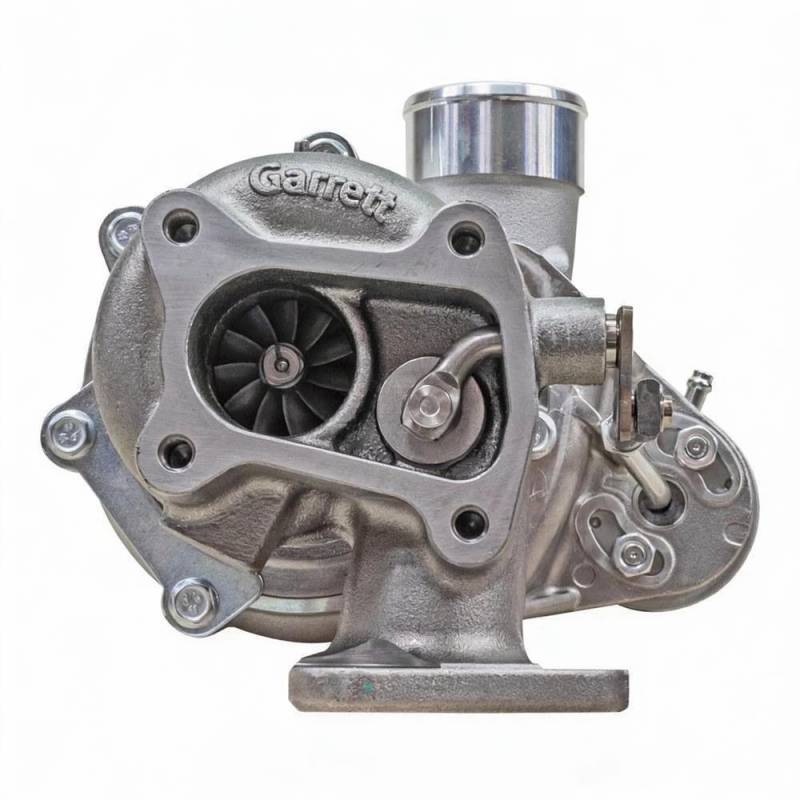

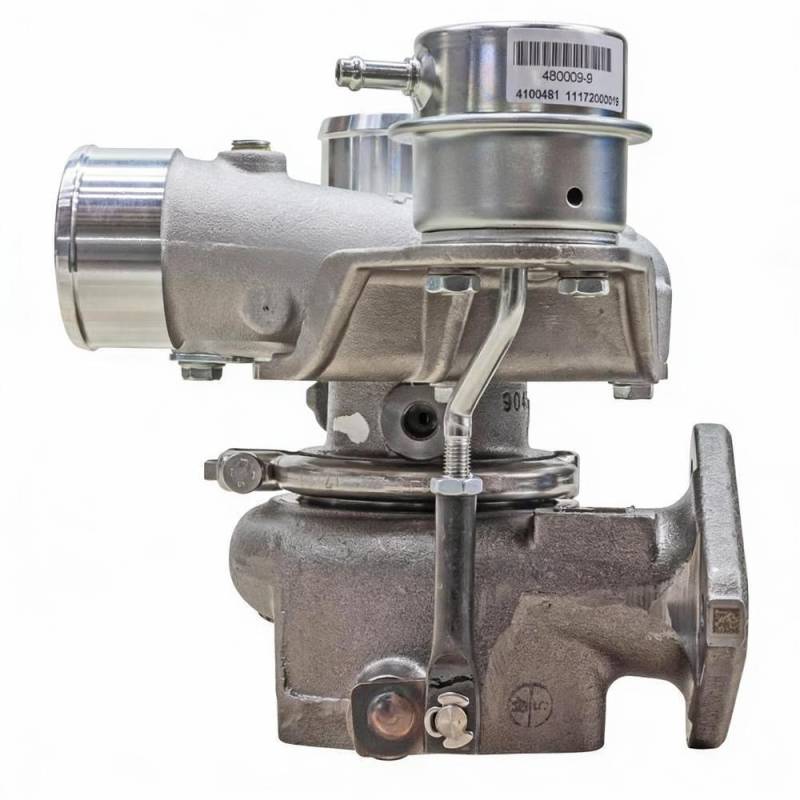

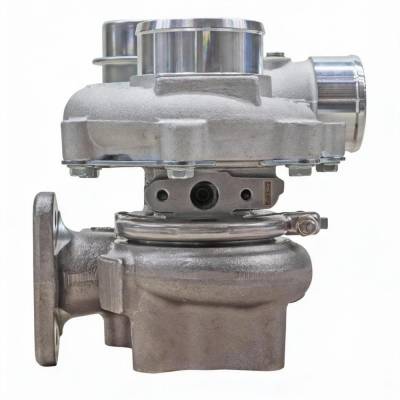

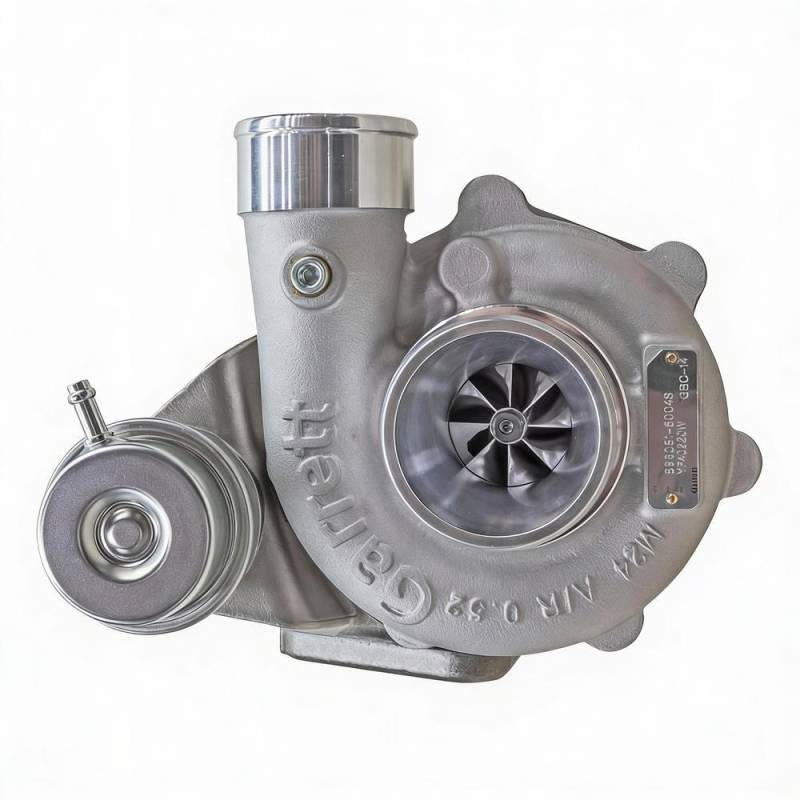

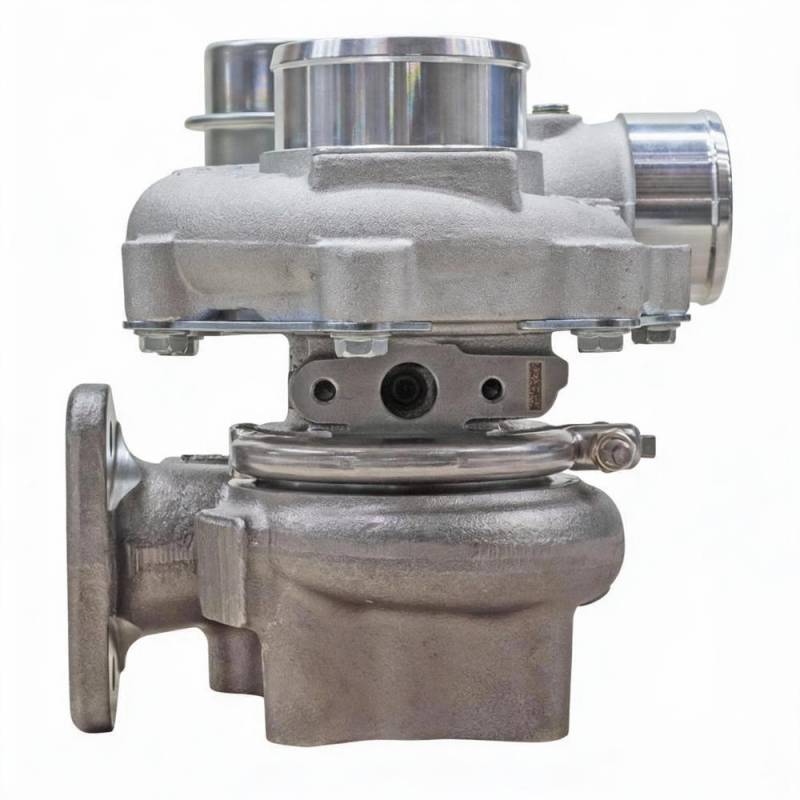

PRODUCT TYPE: TURBOCHARGER
SPECIFICATIONS:
MODEL: GBC14-200
CONDITION: NEW
TYPE: TURBOCHARGER
BEARING TYPE / GEAR TYPE: JOURNAL BEARING (360-DEGREE THRUST BEARING)
MANUFACTURER: GARRETT
ENGINE / EQUIPMENT FITMENT: UNIVERSAL FOR 0.4L - 1.0L DISPLACEMENT ENGINES
HORSEPOWER RATING: 140 - 200 HP
MAX RPM: 209,000
COOLING TYPE: OIL COOLED CENTER HOUSING
ROTATION: STANDARD (CLOCKWISE)
COMPRESSOR WHEEL INDUCER: 34 MM
COMPRESSOR WHEEL EXDUCER: 46 MM
COMPRESSOR WHEEL TRIM: 55
COMPRESSOR HOUSING A/R: 0.52
TURBINE WHEEL INDUCER: 39 MM
TURBINE WHEEL EXDUCER: 36 MM
TURBINE WHEEL TRIM: 84
TURBINE WHEEL MATERIAL: INCONEL
TURBINE HOUSING A/R: 0.45
TURBINE INLET FLANGE: 3-BOLT
TURBINE OUTLET FLANGE: 4-BOLT
WASTEGATE: INTERNALLY WASTEGATED (IWG)
ACTUATOR PRESSURE: 0.5 BAR (7 PSI)
REPLACES:
OEM: UNIVERSAL PERFORMANCE
OEM INTERCHANGE PART NUMBERS: 896051-0004 896051-4 896051-5004 896051-9004 896051-9004S 8960510004 8960515004
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
