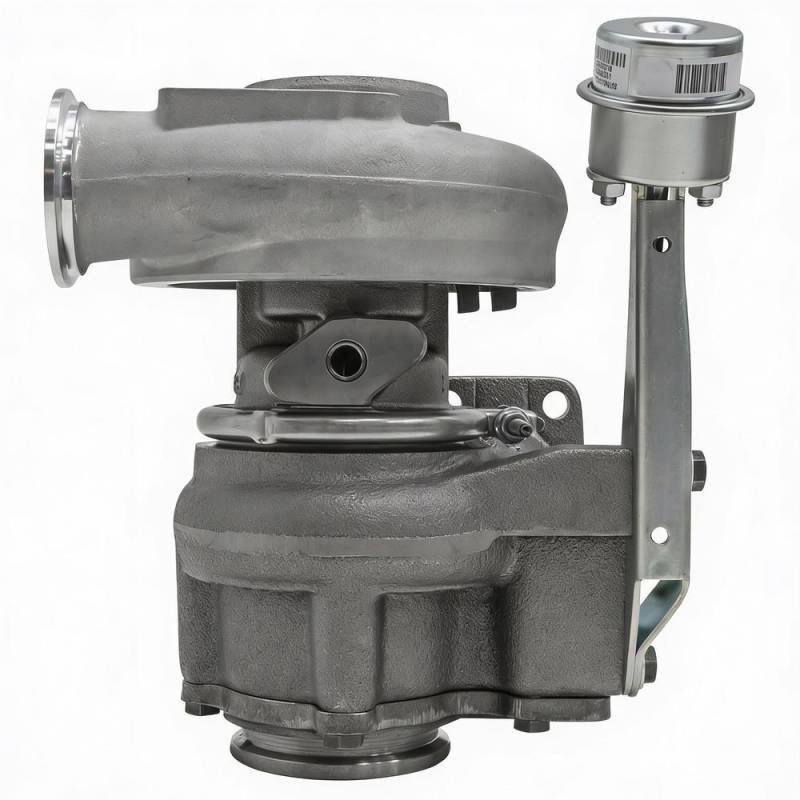

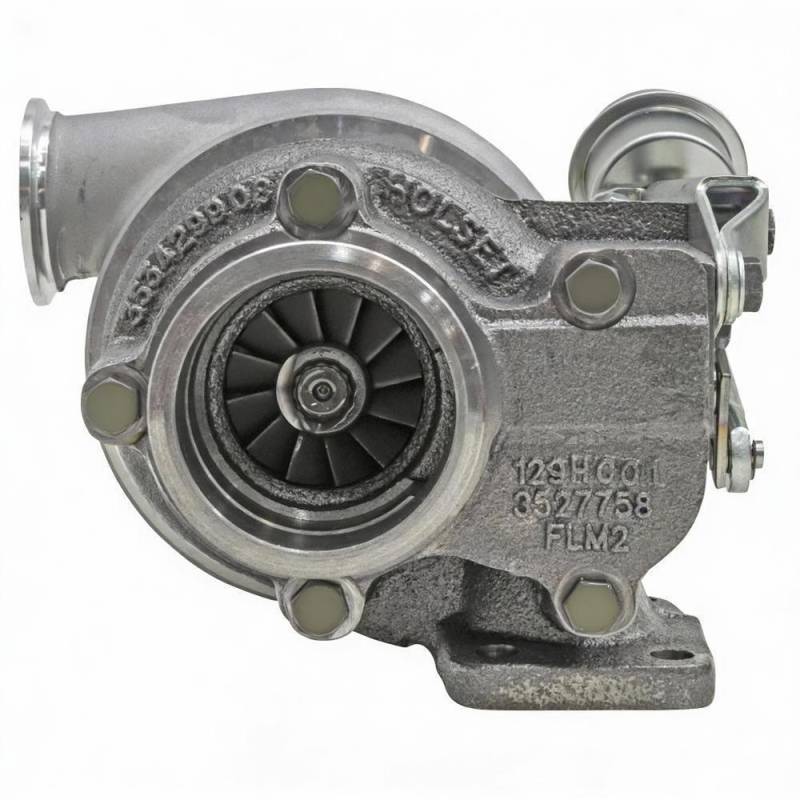

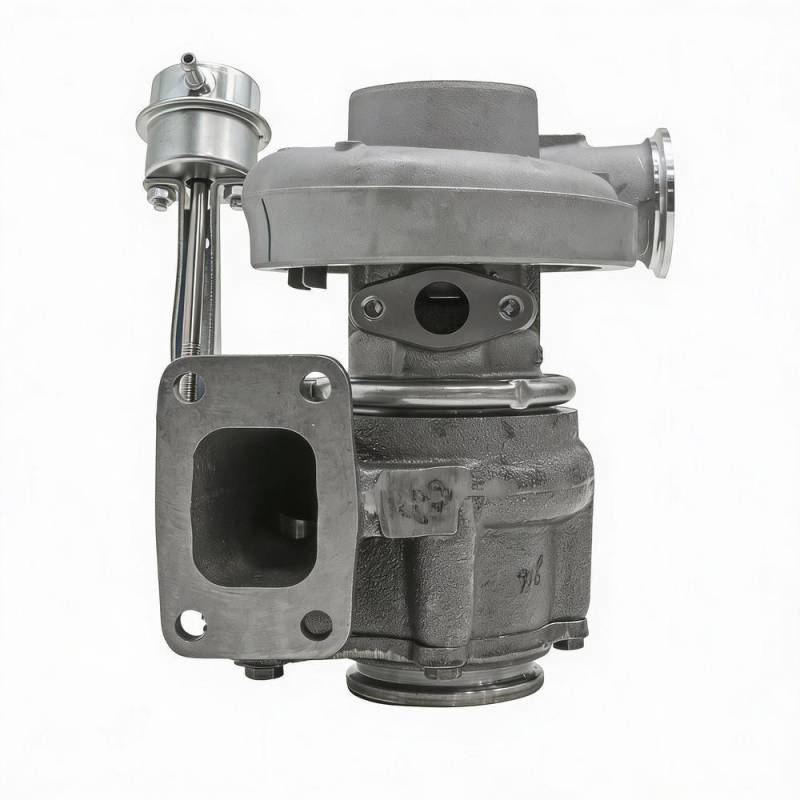

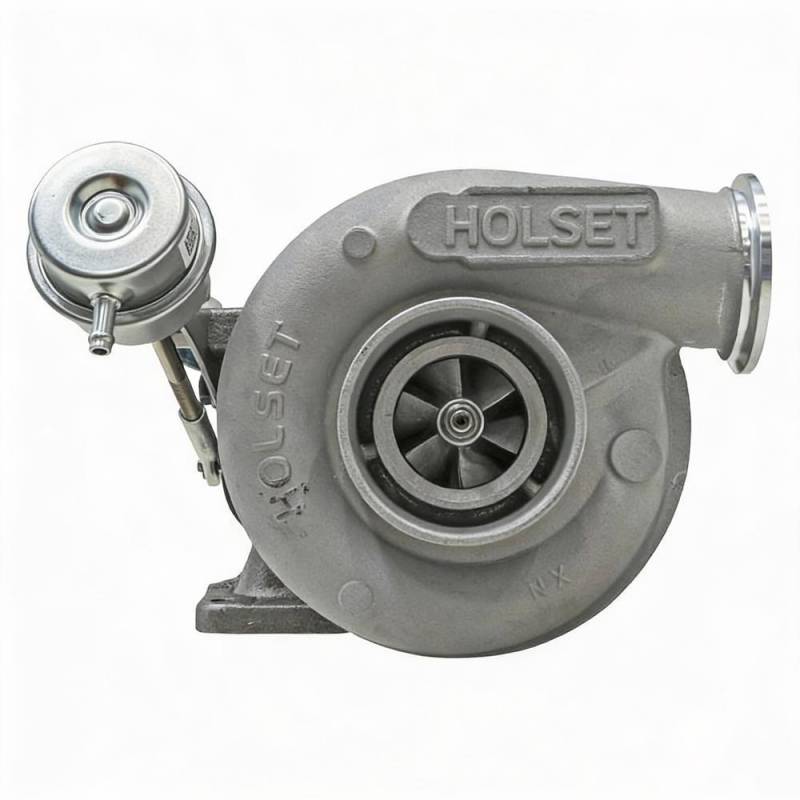

New OEM Replacement Turbocharger Compatible With Chevrolet P30 Step Van Cummins 4Bt 3.9L 1990-1993

PRODUCT TYPE: TURBOCHARGER

SPECIFICATIONS:
MODEL: HX30W
CONDITION: NEW
TYPE: WASTEGATED TURBOCHARGER
BEARING TYPE / GEAR TYPE: JOURNAL BEARING
MANUFACTURER: HOLSET
ENGINE / EQUIPMENT FITMENT: CUMMINS 4BT / 4BTA 3.9L DIESEL (110HP-130HP)
COMPRESSOR WHEEL INDUCER: 44 MM
TURBINE WHEEL EXDUCER: 52 MM
TURBINE WHEEL MAJOR DIAMETER: 65 MM
TURBINE HOUSING SIZE: 6 CM²
TURBINE INLET FLANGE: T3 SINGLE ENTRY
COMPRESSOR INLET: 3 IN (76 MM)
COMPRESSOR OUTLET: 2.5 IN V-BAND
ACTUATOR: PNEUMATIC WASTEGATE ACTUATOR
COOLING TYPE: OIL COOLED

REPLACES:
OEM: CUMMINS
OEM INTERCHANGE PART NUMBERS: 3533125 3533126 3533128 3539334 3539335 3590124 3590125 3590126 3592306 3592307 3593406 3593407 3593408 3800734 3800734NX 3800734RX 3802646 3802646NX 3802646RX 3802950 3802950NX 3802950RX 4025417 402541700 4025417NX 4025417RX

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
