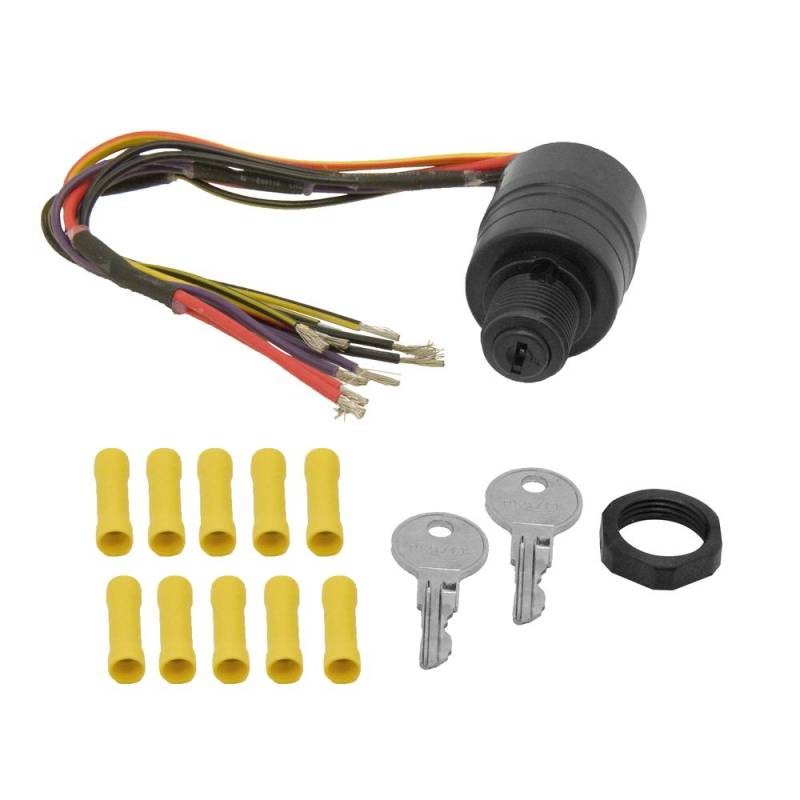

New Push-To-Choke Ignition Switch Compatible With 1998-2016 Mariner Mercury Sport Jet Pro Max Xb

MERCURY / MARINER V6 OUTBOARD PUSH-TO-CHOKE IGNITION KEY SWITCH (1998-2016):

MERCURY V6 SPORT JET — 2.5L (3.501" Bore) and 3L (3.6265" Bore) Platforms:
• Mercury Sport Jet 210 HP V6 3.501" Bore 2.5L 2-Stroke (2000-2005)
• Mercury Sport Jet 240 HP V6 3.501" Bore 2.5L 2-Stroke (2000-2006)
• Mercury Sport Jet 250 HP V6 3.6265" Bore 3L OptiMax DFI (2002-2006)

MERCURY V6 PRO MAX — 3L Carbureted High Performance:
• Mercury Pro Max 300 HP V6 3.625" Bore 3L Carbureted 2-Stroke (1998-2005)

MERCURY V6 XB — 3L Carbureted Performance:
• Mercury XB 250 HP V6 3.625" Bore 3L Carbureted 2-Stroke (2000-2004)

MERCURY V6 OPTIMAX — 3L Direct Fuel Injection (DFI):
• Mercury OptiMax 250 HP V6 3.6265" Bore 3L DFI 2-Stroke (2003-2006)
• Mercury OptiMax 300 HP V6 3.6265" Bore 3L DFI 2-Stroke (2015-2016)

MARINER V6 OUTBOARDS (Mercury-Sourced Equivalents):
• Mariner Sport Jet 210 HP V6 2.5L (2000-2005)
• Mariner Sport Jet 240 HP V6 2.5L (2000-2006)
• Mariner Sport Jet 250 HP V6 3L OptiMax (2002-2006)
• Mariner Pro Max 300 HP V6 3L (1998-2005)
• Mariner XB 250 HP V6 3L (2000-2004)
• Mariner OptiMax 250 HP V6 3L (2003-2006)
• Mariner OptiMax 300 HP V6 3L (2015-2016)

SPECIFICATIONS:
• Type: Magneto Ignition Key Switch with Push-to-Choke Integrated Function
• Positions: 3-Position (OFF / RUN / START)
• Wire/Terminal Configuration: 6-Wire / 6-Terminal (5 Tabs + 1 Threaded Boss)
• Voltage: 12V DC
• Amperage Rating: 7A Choke / 15A Ignition / 30A Solenoid (Maximum)
• Panel Mount: 5/8 inch Maximum Panel Thickness
• Body Material: Flame-Retardant ABS Plastic
• Terminals: Brass with Chrome Plating
• Mounting Hardware: Stainless Steel Screws
• Inner Seal: Between Cylinder Lock and Contact Plate (Weatherproof)
• Includes: 2 Ignition Keys
• Application: Side-Mount Remote Control Boxes / Front-of-Engine Boxes

MERCURY OEM PART NUMBERS:
• Mercury: 87-88107A5 / 8788107A5 (Primary Current OEM)
• Mercury: 87-88107 / 8788107 (Earlier OEM)
• Mercury: 17393 / 88107
• Mercury Quicksilver: 88107A5

INSTALLATION:
• Step 1: Disconnect battery negative cable for safety
• Step 2: Access existing ignition switch through control box panel
• Step 3: Disconnect 6 wires from old switch (note color positions before removal)
• Step 4: Remove old switch from 5/8" panel mounting hole
• Step 5: Install new switch in same panel hole
• Step 6: Connect 6 wires by color/terminal position to new switch
• Step 7: Test all 3 positions (OFF / RUN / START) and push-to-choke function
• Step 8: Reconnect battery and verify proper engine starting operation

NOTE: Verify your OEM part number before ordering. The 87-88107A5 push-to-choke design is specific to Mercury Marine carbureted and OptiMax DFI outboards (1994-2016). Different from Mercury 87-17009A5 ignition switch (no choke function — used on EFI/4-stroke). Confirm push-to-choke feature is present on your existing switch before ordering.
