OEM PART NUMBERS:
• WSM: 650-510 / 650510
• Moeller Marine: 042228-10 / 04222810
SPECIFICATIONS:

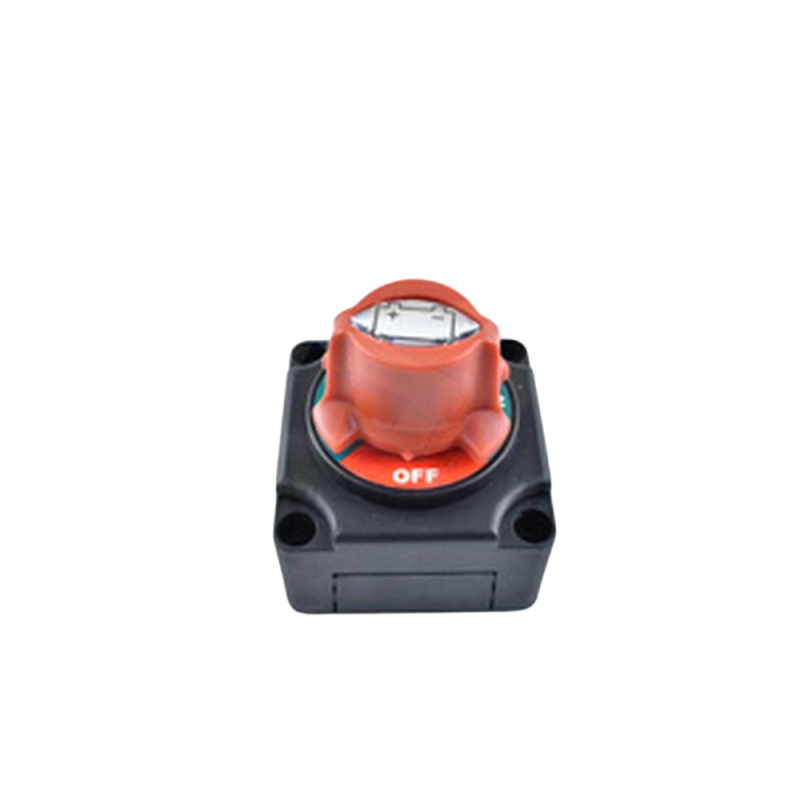

• Type: Disconnect Switch — Single Battery
• Function: One Battery On/Off Disconnect
• Switch Positions: 2-Position: ON / OFF
• Voltage Rating: 6-32V DC
• Continuous Rating: 250A Continuous
• Intermittent Rating: 360A Intermittent (5 min)
• Cranking Rating: 1000A (10 sec)
• Ignition Protected: Yes — Safe for Gasoline-Powered Boats
• ABYC / USCG Compliant: Yes — Meets ABYC & USCG Requirements
• Terminal Stud: 3/8" (M10) Tin-Plated Copper
• Cable Capacity: Accepts Up to 4/0 AWG Battery Cable
• Housing: Non-Metallic Corrosion-Resistant Polycarbonate
• Mounting: Surface Mount / Bulkhead Mount
• Condition: New
MARINE & POWERSPORTS APPLICATIONS:
• All Marine Outboard / Sterndrive / Inboard Engine Systems (6-32V DC)
• Mercury / Yamaha / Evinrude / Suzuki / Honda / Volvo Penta
• Sea-Doo / Yamaha WaveRunner / Kawasaki Jet Ski PWC
• Powerboats, Pontoons, Bass Boats, Fishing Boats, Cruisers
• RVs, ATVs, UTVs, Trucks, Agricultural Equipment
• Any Application Requiring On/Off Battery Disconnect (6-32V DC)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
