High Performance Pro Series Reed Valve Compatible With Yamaha Wave Venture 1100 Wave Raider 1100

(0) Reviews: Write first review
PRO-41A1
OEM PART NUMBERS:
• Yamaha: 63M-13610-00-00 / 63M1361000 (Reed Valve Assembly)
• Yamaha: 63M-W0004-00-00 / 63MW00040000 (Reed Set / Reed Petals)

SPECIFICATIONS:

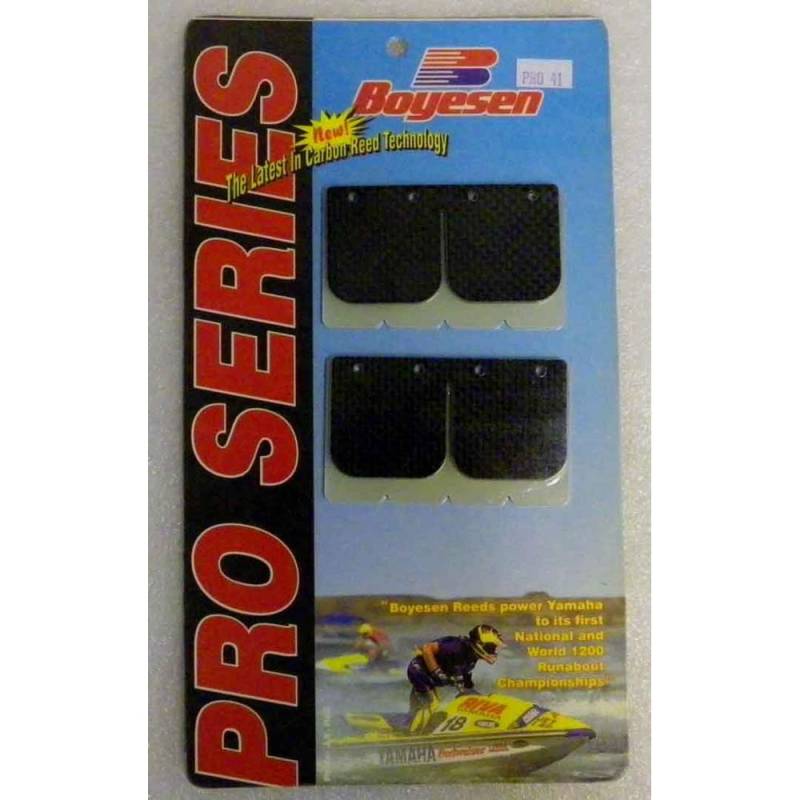

• Type: Pro Series High Performance Modified Reed Valve Petals
• Construction: Carbon Fiber Top Reed / Fiberglass-Epoxy Bottom Reed
• Design: Dual-Stage with Ported Bottom Reed — High Performance Line
• Series: Boyesen Pro Series — Modified / Racing Applications
• Intended For: Ported Exhausts, Raised Compression, Modified Timing, Big Bore Kits
• For Stock to Limited Engines: Use PRO-40
• Engine: Yamaha 63M 1051cc (1100cc) Inline 3-Cylinder 2-Stroke
• Bore x Stroke: 81.0mm x 68.0mm, 110HP @ 6,500 RPM (Stock)
• Carburetion: Triple Mikuni SBN 38mm
• Condition: New

YAMAHA APPLICATIONS:
• Wave Raider 1100 (RA1100) 1051cc (1995-1996)
• Wave Venture 1100 (WVT1100) 1051cc (1996-1997)
• Exciter 220 Jet Boat (EXT1100) Twin 63M Engines (1996-1998)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $288.33
Sale: $164.76
Save: 43%
Save: $123.57
Qty:
Free Shipping!

Description

YAMAHA WAVE RAIDER 1100 (1995-1996):
• Wave Raider 1100 (RA1100T) 1051cc Inline 3-Cylinder 2-Stroke Open-Loop Water-Cooled 81.0x68.0mm 110HP @ 6,500 RPM Triple Mikuni SBN 38mm Carbs CDI Oil Injection (1995)
• Wave Raider 1100 (RA1100U) 1051cc Inline 3-Cylinder 2-Stroke Open-Loop Water-Cooled 81.0x68.0mm 110HP @ 6,500 RPM Triple Mikuni SBN 38mm Carbs CDI Oil Injection (1996)
• 2-Seater Sit-Down PWC, SMC Hull, Axial-Flow Jet Pump, 540 lbs Dry Weight

YAMAHA WAVE VENTURE 1100 (1996-1997):
• Wave Venture 1100 (WVT1100U) 1051cc Inline 3-Cylinder 2-Stroke Open-Loop Water-Cooled 81.0x68.0mm 110HP @ 6,500 RPM Triple Mikuni SBN 38mm Carbs CDI Oil Injection (1996)
• Wave Venture 1100 (WVT1100V) 1051cc Inline 3-Cylinder 2-Stroke Open-Loop Water-Cooled 81.0x68.0mm 110HP @ 6,500 RPM Triple Mikuni SBN 38mm Carbs CDI Oil Injection (1997)
• 3-Seater Touring PWC, Deep-V Hull, 597 lbs Dry Weight

YAMAHA EXCITER 220 JET BOAT (1996-1998):
• Exciter 220 (EXT1100U) Twin-Engine Jet Boat w/63M 1051cc Triple 110HP Per Engine (1996)
• Exciter 220 (EXT1100V) Twin-Engine Jet Boat w/63M 1051cc Triple 110HP Per Engine (1997)
• Exciter 220 (EXT1100W) Twin-Engine Jet Boat w/63M 1051cc Triple 110HP Per Engine (1998)
• Combined 220HP (110HP x 2), Triple Mikuni SBN 38mm Carbs Per Engine, CDI, Oil Injection

ENGINE SPECIFICATIONS (ALL MODELS):
• Yamaha 63M 1100cc (1051cc actual) 2-Stroke 3-Cylinder Marine Engine
• 81.0mm Bore x 68.0mm Stroke, Reed-Valve Induction
• 110 Horsepower @ 6,500 RPM (Stock)
• Triple Mikuni SBN 38mm Carburetors, CDI Ignition
• Open-Loop Water Cooling, Oil Injection System
• Engine Code: 63M
• NOTE: PRO-41 High Performance line for modified/racing engines. For stock to limited engines, use PRO-40.
