Platinum Piston Kit Compatible With 2020-2025 Sea-Doo Fish Pro Sport Trophy 170 1630Cc Rotax Ace

(0) Reviews: Write first review
010-866PKA4
OEM PART NUMBERS:
• Sea-Doo: 420686542 / 420686542

SPECIFICATIONS:
• Product: Platinum Piston Kit — Standard
• Bore Size: Standard — 100.00mm
• Engine: Rotax 1630 ACE — 1630cc 3-Cyl SOHC
• Bore × Stroke: 100.00mm × 69.2mm

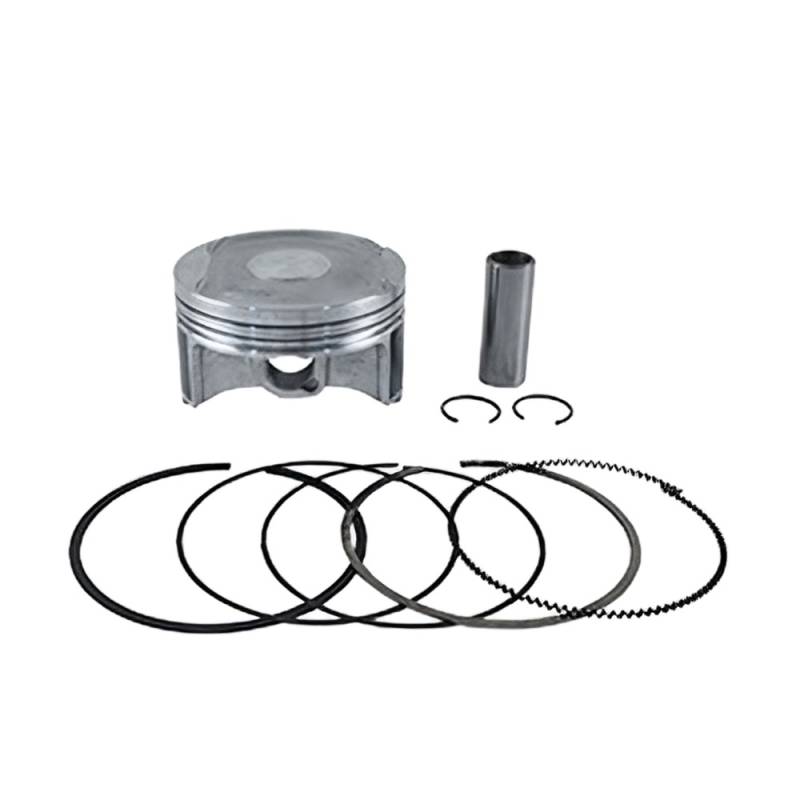

• Kit Contents: Piston, rings, wrist pin, circlips
• Application: Sea-Doo PWC with Rotax 1630 ACE (2020-2025)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $300.90
Sale: $171.94
Save: 43%
Save: $128.96
Qty:
Free Shipping!

Description

SEA-DOO BASE & COMPACT — 1630cc Rotax ACE 3-Cyl SOHC (2020-2025):
• Base 16-100 1630cc (2020-2025) — 100 HP
• Base 16-130 1630cc (2023-2025) — 130 HP
• Base 19-170 1630cc (2022-2025) — 170 HP
• Base Compact 100 1630cc (2022) — 100 HP
• Base Compact 130 1630cc (2023-2025) — 130 HP
100.00mm × 69.2mm | SOHC 12-Valve | Multi-point EFI

SEA-DOO CRUISE — 1630cc Rotax ACE (2022-2025):
• Cruise 18-100 1630cc (2022) — 100 HP
• Cruise 18-130 1630cc (2023-2025) — 130 HP
• Cruise 18-170 1630cc (2022-2025) — 170 HP
• Cruise 21-170 1630cc (2022-2025) — 170 HP
100.00mm × 69.2mm | Closed-loop cooling

SEA-DOO FISH PRO / EXPLORER — 1630cc Rotax ACE (2022-2025):
• Explorer Pro 170 1630cc (2023-2025) — 170 HP
• Fish 18-170 1630cc (2025) — 170 HP
• Fish Pro Scout 130 1630cc (2022-2025) — 130 HP
• Fish Pro Sport 170 1630cc (2022-2025) — 170 HP
• Fish Pro Trophy 170 1630cc (2022-2025) — 170 HP
100.00mm × 69.2mm | Dry-sump lubrication

SEA-DOO GTI 1630 — (2020-2025):
• GTI 130 Rental 1630cc (2020) — 130 HP
• GTI SE 130 1630cc (2020-2025) — 130 HP
• GTI SE 170 1630cc (2020-2025) — 170 HP
• GTI STD 130 1630cc (2020-2025) — 130 HP
Same Rotax 1630 ACE engine platform

SEA-DOO GTX / WAKE / SPORT — 1630cc Rotax ACE (2020-2025):
• GTX Fish Pro 170 1630cc (2020-2021) — 170 HP
• GTX PRO 130 Rental 1630cc (2021-2025) — 130 HP
• GTX STD 170 1630cc (2020-2025) — 170 HP
• GTX STDR 130 1630cc (2023) — 130 HP
• Sport Compact 170 1630cc (2022-2025) — 170 HP
• Wake STD 170 1630cc (2020-2025) — 170 HP
100.00mm × 69.2mm | 100/130/170 HP depending on ECU map

ENGINE SPECIFICATIONS — ROTAX 1630 ACE:
• Displacement: 1630cc
• Configuration: 4-Stroke Inline 3-Cylinder SOHC 12-Valve
• Bore × Stroke: 100.00mm × 69.2mm
• Fuel System: Multi-point Electronic Fuel Injection
• Cooling: Closed-loop liquid
• Lubrication: Dry-sump
• HP: 100 / 130 / 170 HP (ECU-dependent)
