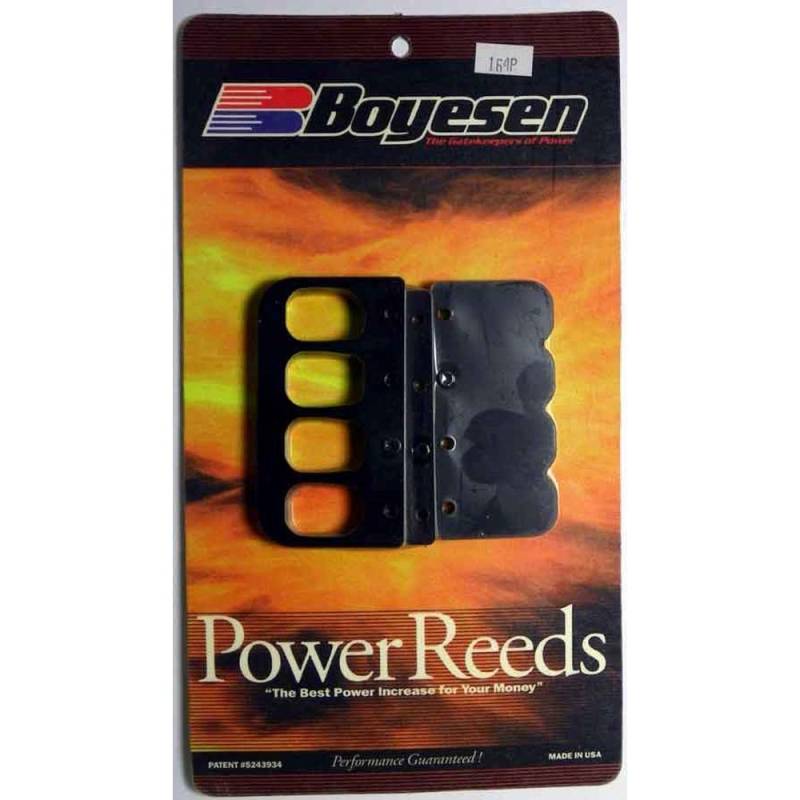

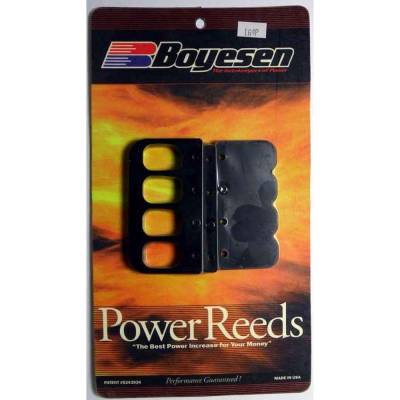

Intake Reed Petals Compatible With Johnson Evinrude V6 135 Hp Ficht Direct Injection 3.600 Bore 60

164PA1
OEM REFERENCE:
• BRP does not sell individual OEM reed petals for FICHT V6 engines
• Factory reed petals housed within OEM assemblies:
• Leaf Plate Assembly: 437591 / 0437591
• Reed Valve / Intake Manifold: 344830 / 0344830 (V6 FICHT)
• This aftermarket reed petal kit replaces OEM petals within those assemblies

SPECIFICATIONS:
• Type: Intake Reed Petals / Leaf Valves
• Engine Configuration: V6 (6-Cylinder) 60 Degree
• Bore: 3.600" / Stroke: 2.588"
• Displacement: ~158 Cu.In. / 2.6L (2588cc)
• Fuel System: FICHT RAM Direct Injection
• HP Range: 135, 150, 175
• Year Range: 1997-2006
• Contents: Full set of reed petals for all six cages on one engine
• Condition: New

EVINRUDE/JOHNSON V6 FICHT APPLICATIONS:
• 135HP FICHT V6 60° (1997-2006, 2003-2006)
• 150HP FICHT V6 60° (1997-2006)
• 175HP FICHT V6 60° (1997-2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $304.89
Sale: $174.22
Save: 43%
Save: $130.67
Qty:
Free Shipping!

Description

EVINRUDE/JOHNSON V6 FICHT DIRECT INJECTION — 3.600" BORE, 60 DEGREE:
• 135 HP V6 3.600" Bore 60° FICHT Direct Injection 2-Stroke (1997-2006)
- Model codes: E135F
• 135 HP V6 3.600" Bore 60° FICHT Direct Injection (2003-2006)
- Possible sub-model variant (BRP era)
• 150 HP V6 3.600" Bore 60° FICHT Direct Injection 2-Stroke (1997-2006)
- Model codes: E150F, E150L (Intruder)
- Early models (1997-1999) were most problematic
• 175 HP V6 3.600" Bore 60° FICHT Direct Injection (1997-2006)
- Model codes: E175F

ENGINE SPECIFICATIONS:
• Configuration: V6 (6-Cylinder) 60 Degree
• Bore: 3.600" (91.44mm)
• Stroke: 2.588" (65.74mm)
• Displacement: ~158 Cu.In. / 2588cc / 2.6L
• Fuel System: FICHT RAM Direct Injection
• Cycle: 2-Stroke

FITMENT NOTES:
• Fits V6 (6-cylinder) FICHT models ONLY
• Does NOT fit carbureted V6 60° models (see item 164)
• Does NOT fit V6 E-TEC direct injection models
• Does NOT fit V6 90° big bore looper (200-300HP)
• Does NOT fit V4 FICHT models (75-115HP, see item 144P)
• Kit includes: Full set of reed petals for all six cages on one engine
• FICHT introduced 1997, produced through 2006 before E-TEC replacement

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.2 lbs.
  • W6.0000” x H2.0000” x L10.0000”
  • Free Shipping!
