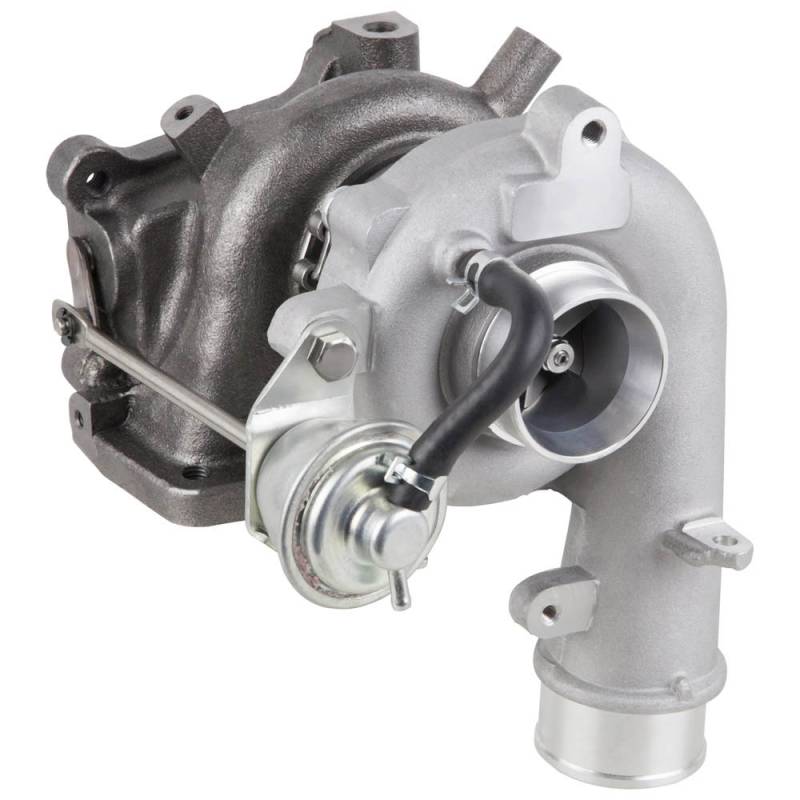

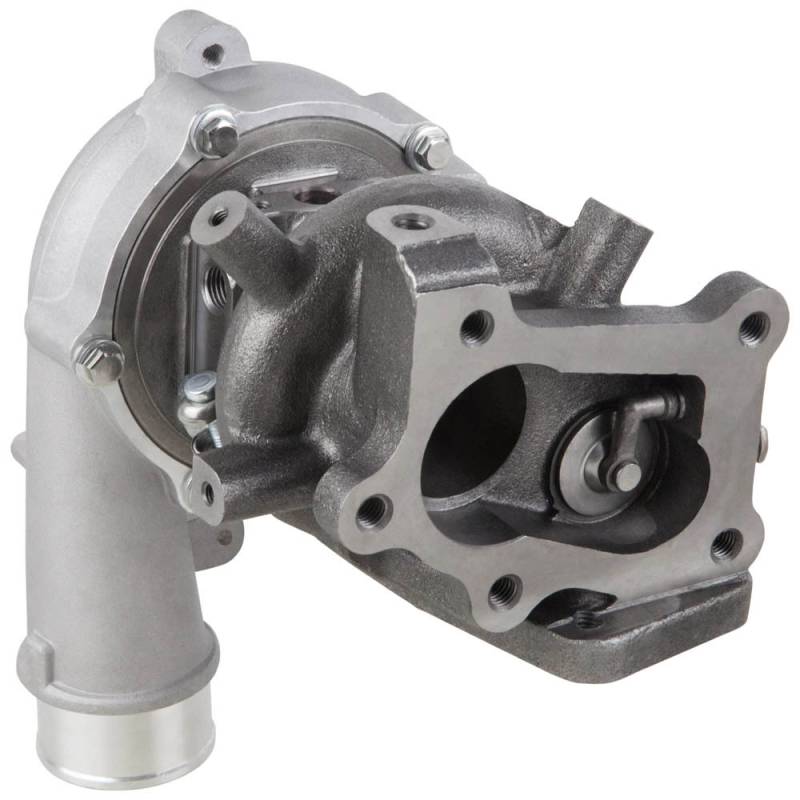

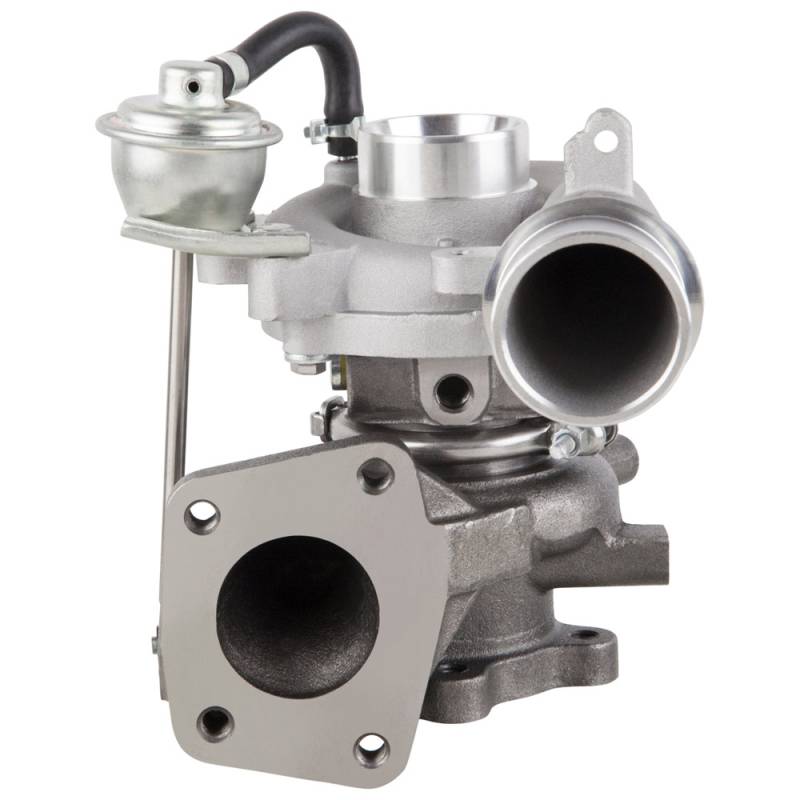

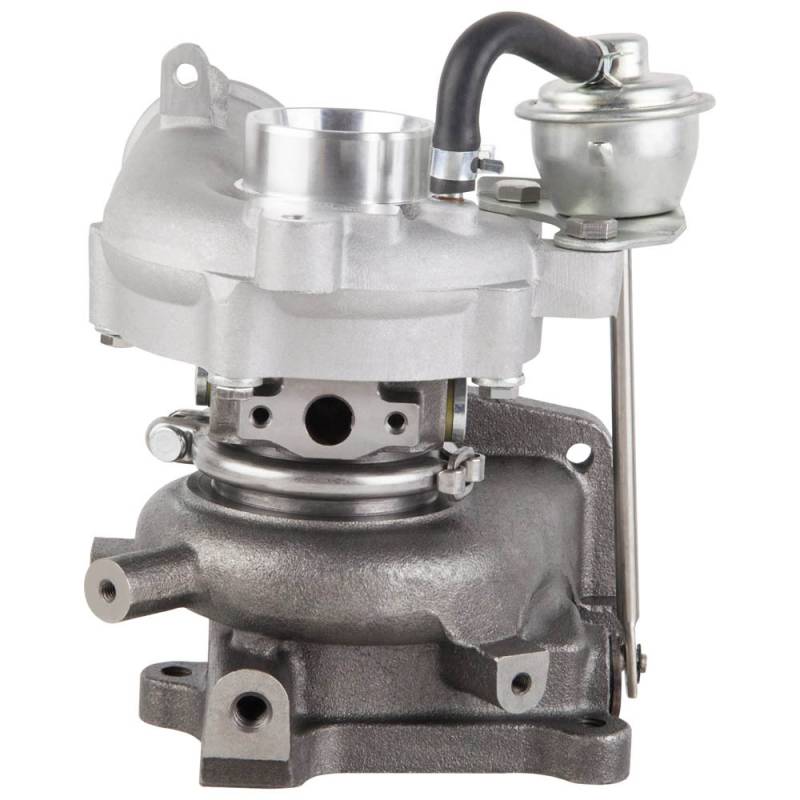

PRODUCT TYPE: TURBOCHARGER
SPECIFICATIONS:
MODEL: K04 / K0422-582
CONDITION: NEW
TYPE: TURBOCHARGER
BEARING TYPE / GEAR TYPE: JOURNAL BEARING
ENGINE / EQUIPMENT FITMENT: MAZDA 2.3L MZR DISI L3-VDT
WASTEGATE TYPE: VACUUM/PNEUMATIC WASTEGATE ACTUATOR
COOLING TYPE: OIL + WATER COOLED
COMPRESSOR WHEEL: 41.5MM INDUCER × 56MM EXDUCER
TURBINE WHEEL: 44MM INDUCER × 50MM EXDUCER
FLANGE TYPE: STANDARD K0422 (MAZDA-SPECIFIC)
INTAKE INLET/OUTLET: 2.25 IN / 2.25 IN
TURBINE HOUSING MATERIAL: DUCTILE IRON QT450-10
TURBINE WHEEL MATERIAL: K418 ALLOY
COMPRESSOR HOUSING MATERIAL: ZL104 ALUMINUM ALLOY
POWER OUTPUT: CAPABLE UP TO 300+ HP
REPLACES:
OEM: MAZDA, BORGWARNER/HITACHI
OEM INTERCHANGE PART NUMBERS: 14030168-101 14030168-102 14030168-103 14030168-104 14030168-105 14030168-106 14030168-107 14030168-108 14030168-109 2T-750 40-30168 40-30168AN 4030168 4030168AN 5304-710-9904 5304-710-9907 53047109904 53047109907 78-11315 7811315 800020NEW 847-1020 8471020 917-151 917151 K04-582 K0422-581 K0422-582 K1040197N K8040103R L133L13700F L33L13700B L33L13700C L33L13700E L33L13700F L3XC1370ZA L3Y11370ZC L3Y31370ZC L3Y41370ZA L3Y41370ZC L3Y51370Z L3Y61370Z L3YC1370Z L3YC1370ZA TBC578 TBC612
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
