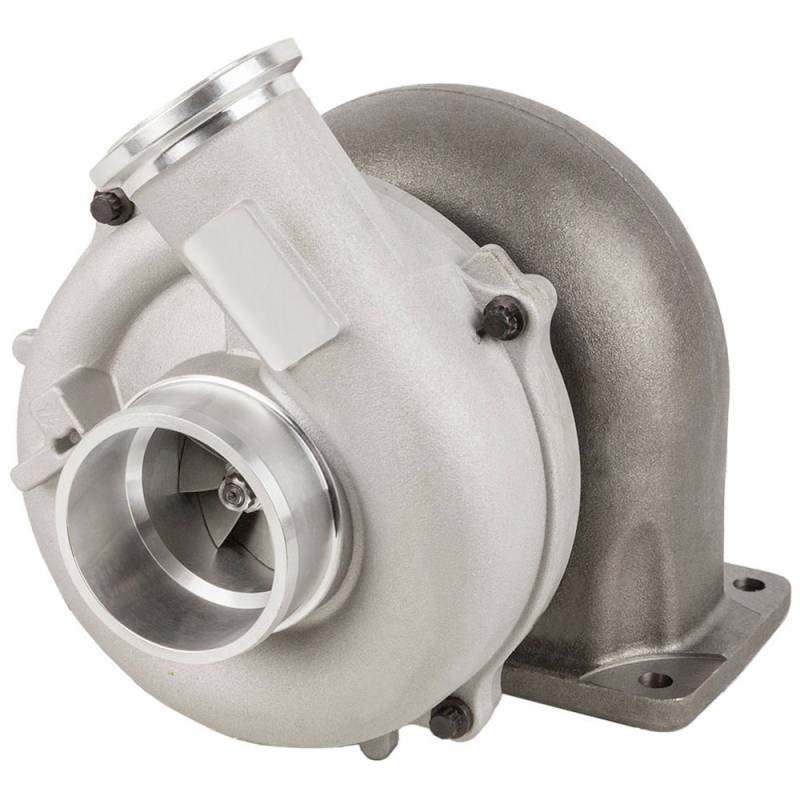

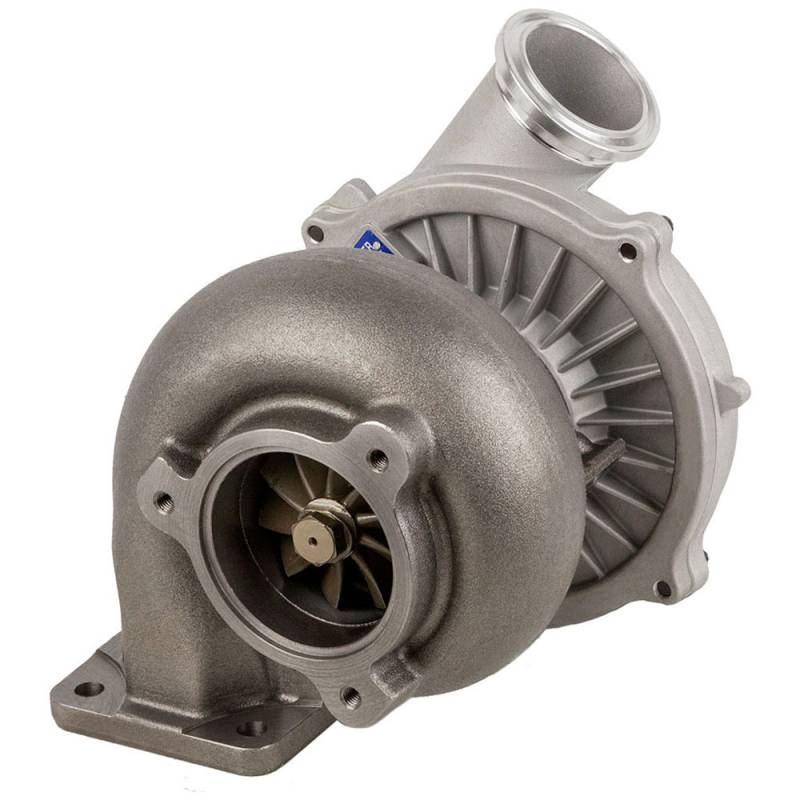

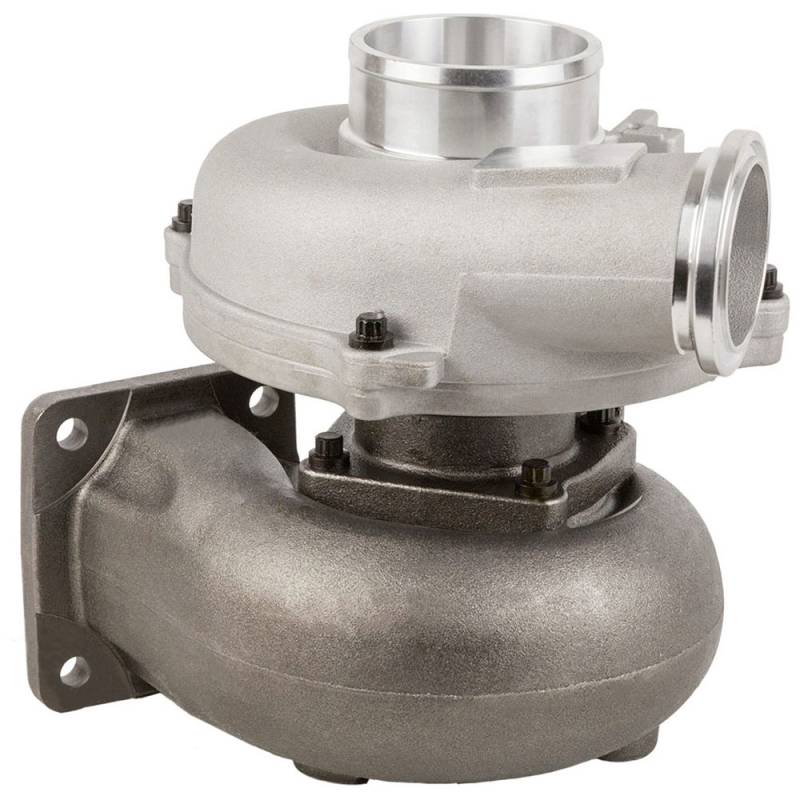

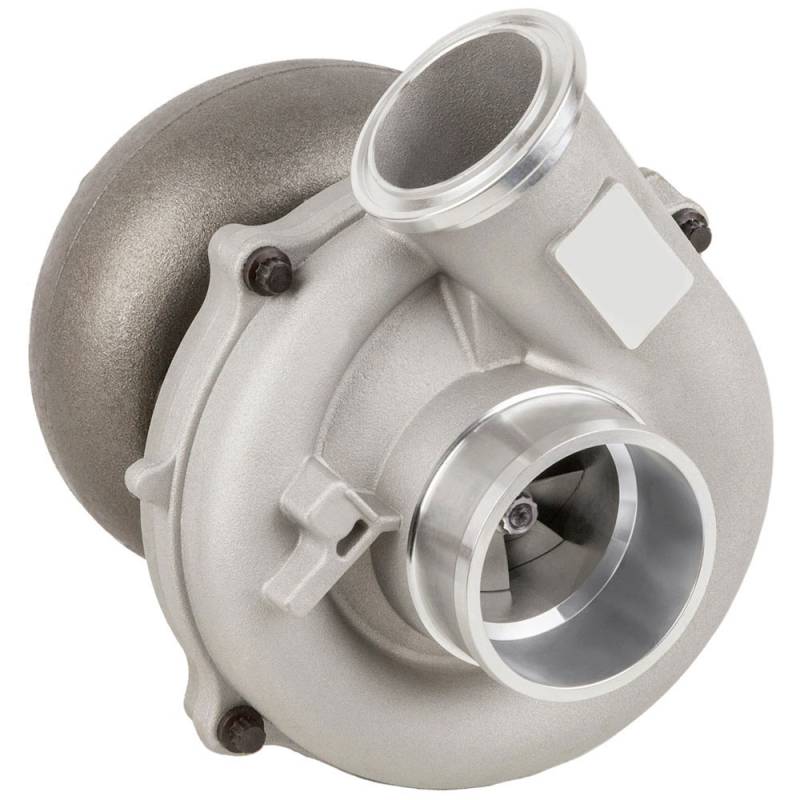

PRODUCT TYPE: TURBOCHARGER
SPECIFICATIONS:
MODEL: GARRETT TP38 / TP3801
CONDITION: NEW
TYPE: TURBOCHARGER
ENGINE FITMENT: FORD 7.3L POWERSTROKE DIESEL / NAVISTAR T444E
BEARING TYPE: JOURNAL BEARING (THRUST BEARING)
COOLING: OIL COOLED
GEOMETRY: FIXED GEOMETRY
COMPRESSOR WHEEL INDUCER: 59.87 MM (APPROX. 60 MM)
COMPRESSOR WHEEL EXDUCER: 80 MM
TURBINE WHEEL INDUCER: 76.2 MM
TURBINE WHEEL EXDUCER: 69.84 MM (APPROX. 70 MM)
TURBINE HOUSING A/R: 1.15
COMPRESSOR HOUSING A/R: 1.10
MAX RPM: UP TO 130,000
REPLACES:
OEM: FORD, NAVISTAR/INTERNATIONAL, GARRETT
OEM INTERCHANGE PART NUMBERS: 014TC24007100 014TC2615800 014TC26158000 100TBC566 100TBC566S 1080218R 144TC2400710 144TC24007100 170308 1820612C91 1822702C92 1822763C91 1822774C91 1822774C92 1822775C91 1822775C92 1822777C91 1822868C91 1822868C92 1822868C93 1822868C94 1822869C91 1822869C92 1822869C93 1822869C94 1823560C92 1825818C91 1825818C92 1831383C91 1831383C93 1831383C94 1831450C94 1831457C93 1831527C91 1833651C91 2N208 2T-205 2T-208 466057-0001 466057-0005 466057-0006 466057-5 466057-5001 466057-5005 466057-5005S 466057-9001 466057-9005 466057-9006 466163-0001 466163-0011 466163-0013 466163-11 466163-5011 466163-5011S 466163-9011 466163-9014 466819-5003 466819-5004S 468485-5001 468485-5004 468485-9001 468485-9004 702012-5012S 8122775C91 8122775C92 8152869C92 8152869C93 991822C92 991824C92 F4TZ6K682CARM F6TZ6K682ARM F81Z-6K682-BARM F81Z6K682BARM
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
