PRODUCT TYPE: TURBOCHARGER
SPECIFICATIONS:

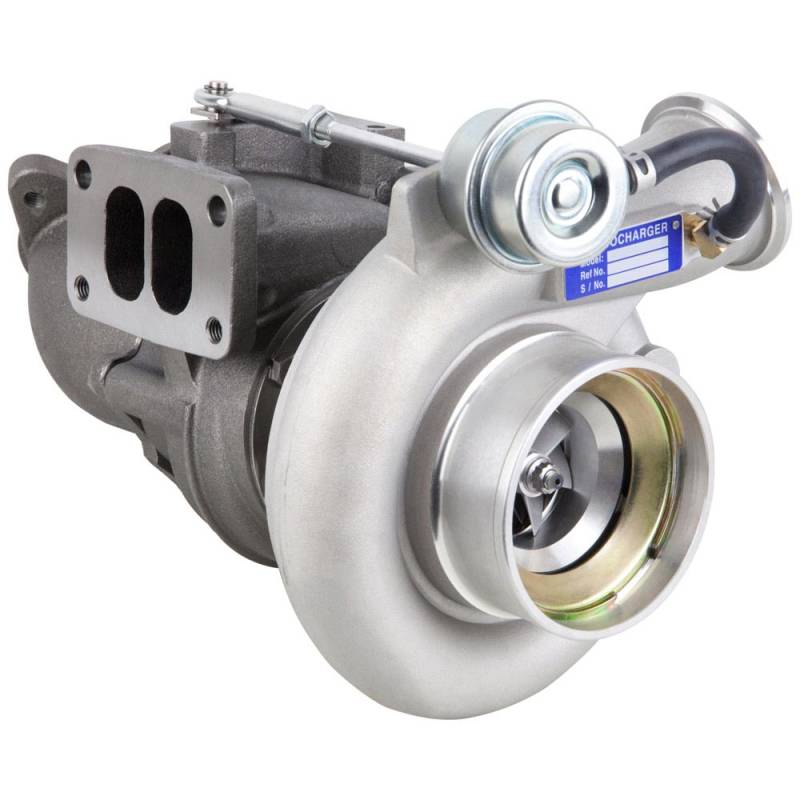

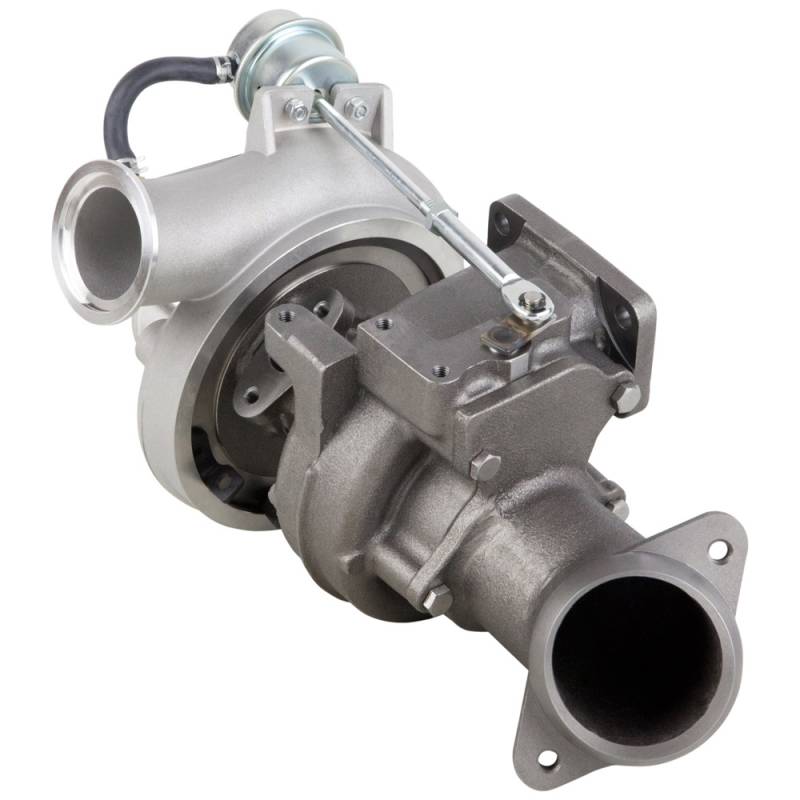

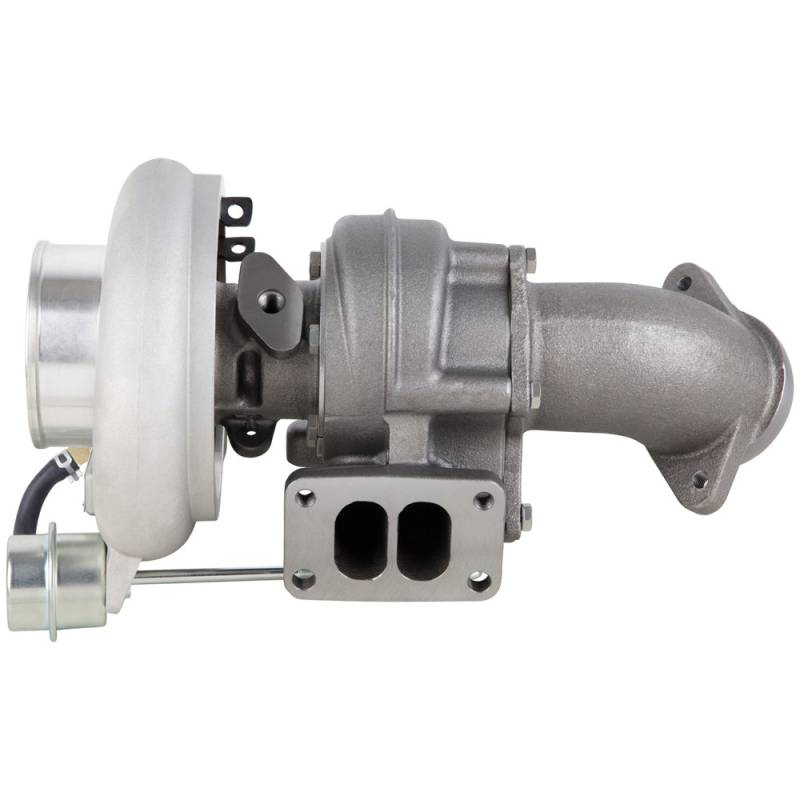

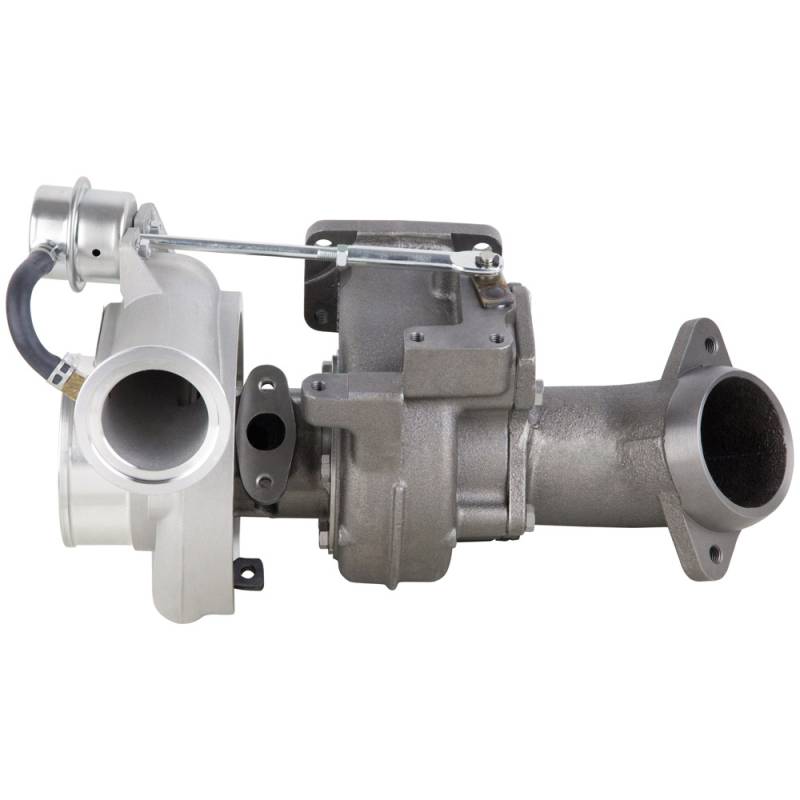

MODEL: HOLSET HX35W
CONDITION: NEW
TYPE: TURBOCHARGER
ENGINE FITMENT: CUMMINS 5.9L 6BT ISB (24-VALVE)
COMPRESSOR WHEEL: 54MM INDUCER / 82MM EXDUCER (APPROX.)
TURBINE WHEEL: 70MM INDUCER / 60MM EXDUCER (APPROX.)
TURBINE HOUSING: 8CM² OR SIMILAR, T3 DIVIDED (TWIN SCROLL) INLET FLANGE
COMPRESSOR INLET: 4" DIAMETER
COMPRESSOR OUTLET: V-BAND
TURBINE OUTLET: V-BAND
WASTEGATE: INTERNAL
BEARING TYPE: JOURNAL BEARING (WET FLOAT TYPE)
COOLING TYPE: OIL COOLED
HOUSING MATERIALS: DUCTILE IRON TURBINE HOUSING, CAST ALUMINUM COMPRESSOR HOUSING
ALLOY COMPONENTS: K418 ALLOY TURBINE WHEEL FOR HIGH-TEMPERATURE RESISTANCE
REPLACES:
OEM: HOLSET, CUMMINS, MOPAR
OEM INTERCHANGE PART NUMBERS: 100TBC568 100TBC568S 2N-305 2T-305 3538881 3538882 3590104 3590105 3592766 3592767 3774569 3774570 3800397 3800799 3802881 4033076H 5014203AA 5017509AA 667269 H8350107R R5014203AA R5017509AA TUR0359130N
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
