PRODUCT TYPE: TURBOCHARGER
SPECIFICATIONS:

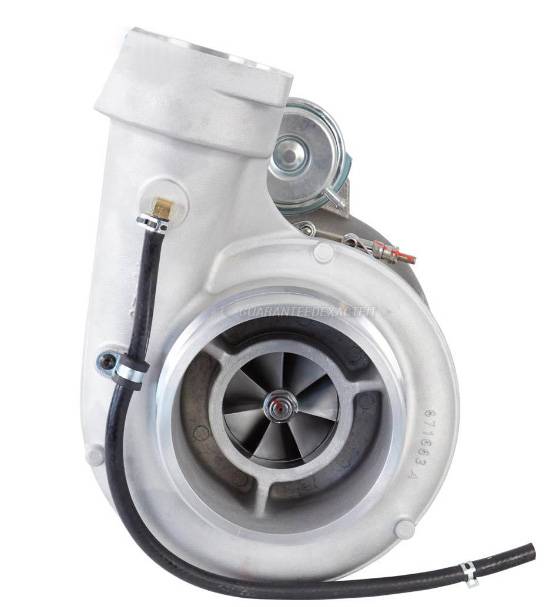

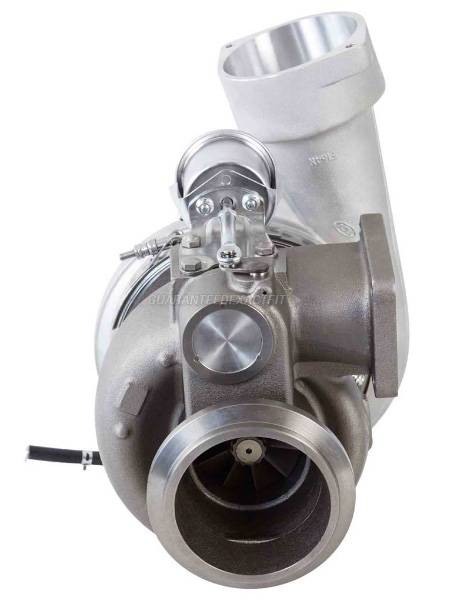

MODEL: GARRETT GT3782VA
CONDITION: NEW
TYPE: TURBOCHARGER
ENGINE FITMENT: FORD POWERSTROKE 6.0L DIESEL V8
TECHNOLOGY: ADVANCED VARIABLE NOZZLE TURBINE (AVNT) UTILIZING NINE MOVABLE VANES.
ACTUATION: PATENTED ELECTRO-HYDRAULIC ACTUATION WITH PROPORTIONAL SOLENOID FOR VARIABLE CONTROL.
COOLING TYPE: OIL COOLED
WASTEGATE: INTERNAL VARIABLE GEOMETRY
TURBINE WHEEL INDUCER: 72.5 MM
TURBINE WHEEL EXDUCER: 66.4 MM (FOR 2003 MODELS)
SPECIAL FEATURES: INCLUDES AN UPDATED UNISON RING, IMPROVED METALLURGY ON VANES FOR LONGER LIFE, AND A CENTER HOUSING WITH A MACHINED RECESS TO VENT MOISTURE AND REDUCE CORROSION.
REPLACES:
OEM: FORD, GARRETT, NAVISTAR / INTERNATIONAL HARVESTER (IH)
OEM INTERCHANGE PART NUMBERS: 3C3Z6K682AARM 3C3Z6K682BARM 3C3Z6K682CBRM 3C3Z6K682CCRM 4C3Z6K682AARM 4C3Z6K682ARM 4C3Z6K682BA 4C3Z6K682CBRM 4C3Z6K682CDRM 4C3Z6K682CCRM 5C3Z6K682AA 5C3Z6K682A 5C3Z6K682BA 5C3Z6K682CA 5C3Z6K682CARM 5C3Z6K682CCRM 5C3Z6K682DA 1832159C91 1832160C91 1832255C91 1837984C91 1837984C94 1840054C98 1843761C93 1845178C98 1845322C91 1846764C91 1846765C91 1846767C91 1848303C1 1854480C91 1854593C91 1858116C91 1870714C91 1876493C91 5010089C95 5010147R93 5010399R91 7205235005S 7205239003 7205239005 7253905001S 7253905002S 7253905003S 7253905006S 7253909001 7253909002 7253909006S 7432505013S 7432505014S 7432505024S 7432505025S 7432509001 7432509002 7432509004 7432509005 7432509013 7432509014 7432509024S 7724415001S 7724415002S 7774695001S 7774695002S
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
