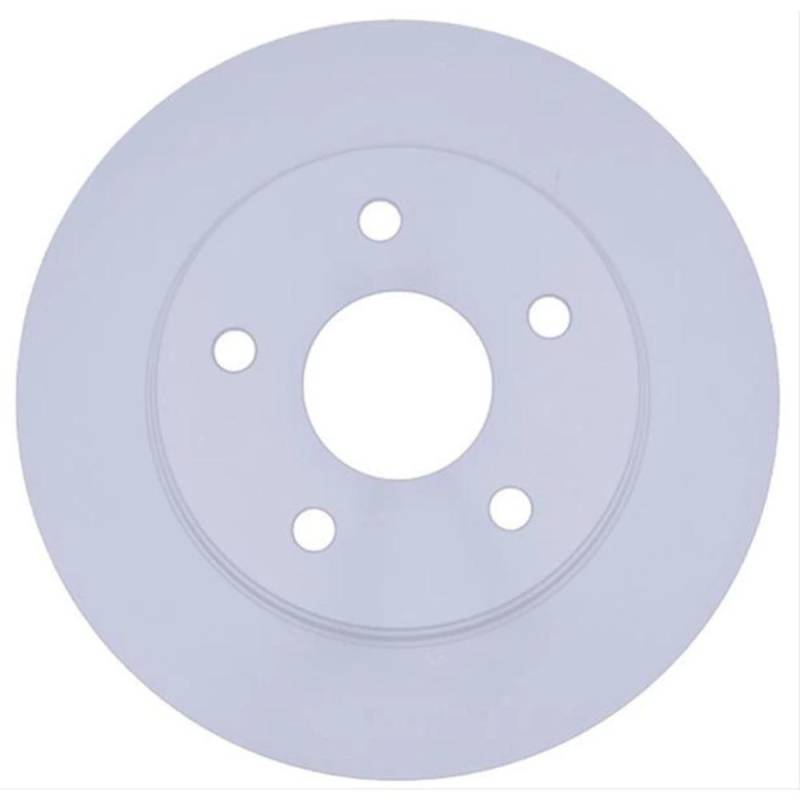

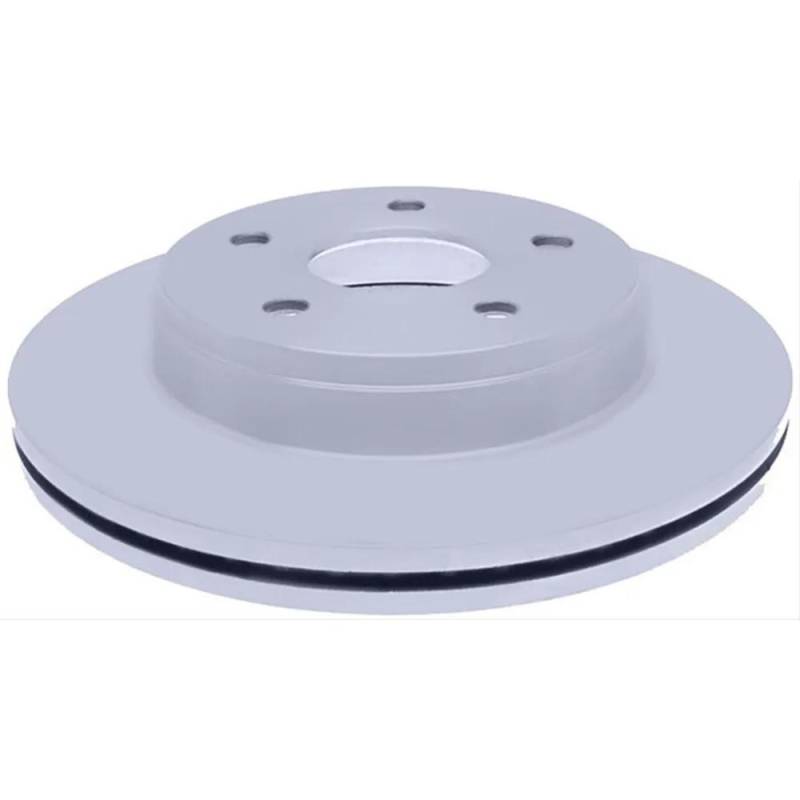

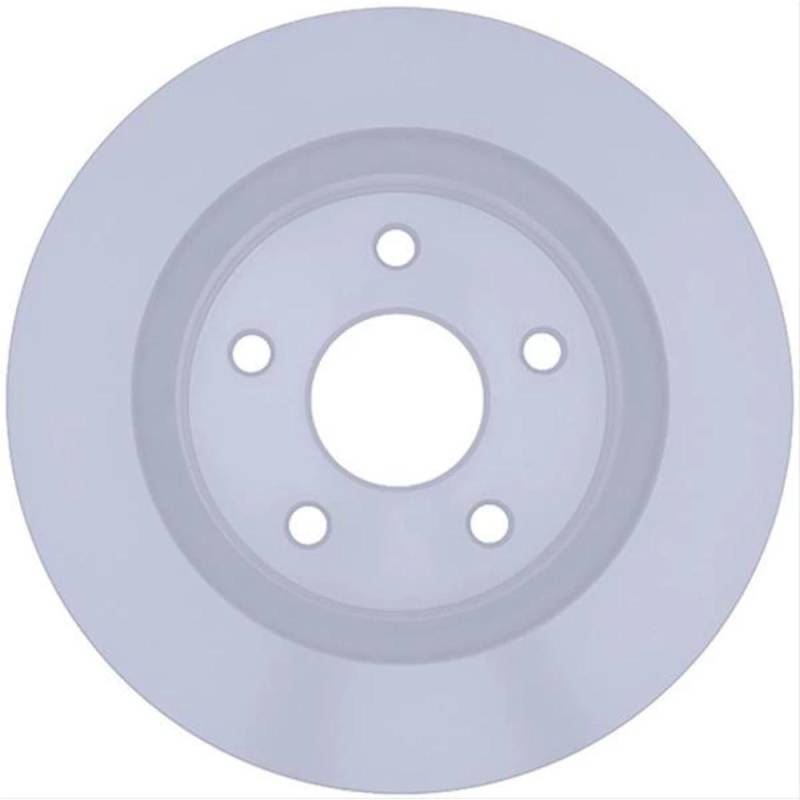

PRODUCT TYPE: BRAKE DISC
SPECIFICATIONS:
BOLT PATTERN: 5 X 5.5 IN. BOLT PATTERN
DISC CONSTRUCTION: VENTED
DISC DESIGN: PLAIN SURFACE
DISC DIAMETER: 336.04 MM
DISC FINISH: COATED
DISC MATERIAL: CARBON STEEL
NOTES: 2.65 IN. OVERALL HEIGHT; 1.10 IN. NOMINAL THICKNESS; 1.04 IN. DISCARD THICKNESS; 3.09 IN. MINIMUM CENTER HOLE DIAMETER; 3.09 IN. MAXIMUM CENTER HOLE DIAMETER; (5) BOLT HOLES; 5.5 IN. WHEEL BOLT HOLE MINIMUM DIAMETER; 0.68 IN. WHEEL BOLT HOLE MAXIMUM DIAMETER; 5.5 IN. WHEEL BOLT CIRCLE DIAMETER; CONVENTIONAL BRAKE ROTOR TYPE; STANDARD PERFORMANCE
NUMBEROF LUGS: 5 LUGS
POSITION: DRIVER OR PASSENGER SIDE FRONT
RECOMMENDED USE: OE REPLACEMENT
REPLACES:
MANUFACTURER PART NUMBER: RAY780073FZN
