New Right Rear Window Regulator With Motor Compatible With Mazda 5 Touring 4 Cyl 2.3L 5 Grand

REAR PASSENGER SIDE POWER WINDOW REGULATOR — COMPATIBLE WITH MAZDA 5 APPLICATIONS:

MAZDA 5 CR — FIRST NORTH AMERICAN GENERATION, 2.3L:
• Mazda 5 Sport 2.3L 4 Cylinder (2006-2010)
• Mazda 5 Touring 2.3L 4 Cylinder (2006-2010)
• Mazda 5 Grand Touring 2.3L 4 Cylinder (2007-2010)
• Mazda 5 GT 2.3L 4 Cylinder (2008-2010)
• Mazda 5 GS 2.3L 4 Cylinder (2008-2010)

MAZDA 5 CW — SECOND NORTH AMERICAN GENERATION, 2.5L:
• Mazda 5 Sport 2.5L 4 Cylinder (2012-2015)
• Mazda 5 Touring 2.5L 4 Cylinder (2012-2015)
• Mazda 5 Grand Touring 2.5L 4 Cylinder (2012-2015)
• Mazda 5 GT 2.5L 4 Cylinder (2012-2015)
• Mazda 5 GT 2.5L 4 Cylinder (2017)
• Mazda 5 GS 2.5L 4 Cylinder (2012-2017)

TRIM NAMES BY MARKET:
• Sport, Touring and Grand Touring are the United States trim names
• GS and GT are the Canadian trim names for the same vehicle
• Only GS and GT reach 2017, because the United States car ended after 2015

PLATFORM AND ENGINE FAMILIES COVERED:
• Mazda 5 CR body, 2006 through 2010
• Mazda 5 CW body, 2012 through 2017
• L3 2.3 Litre 4 Cylinder — Mazda 5 CR
• MZR 2.5 Litre 4 Cylinder — Mazda 5 CW

FITMENT RESTRICTIONS — READ BEFORE ORDERING:
• 2006-2010 and 2012-2017 ONLY. There is no 2011 Mazda 5 — the CW car arrived as a 2012 model, so the coverage runs 2006-2010 and then 2012-2017 with nothing between
• REAR PASSENGER SIDE RIGHT door only. The rear driver side and both front doors take different regulators

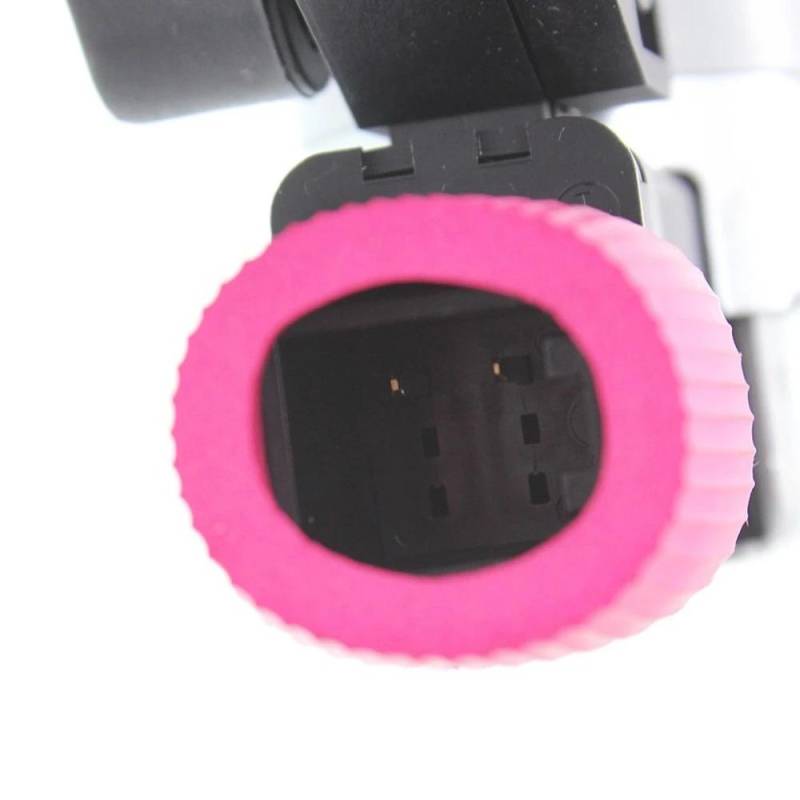

• 2 PIN connector. Match the plug on your old regulator before ordering
• The window MOTOR number GJ6A-58-58XC is also listed by Mazda against the Mazda 3, Mazda 6, CX-7, CX-9 and RX-8 from 2003 to 2015. That is the motor on its own — this complete regulator assembly does NOT fit those vehicles
• Sold individually. Glass, door panel and clips are not included

WHAT THIS ASSEMBLY IS:

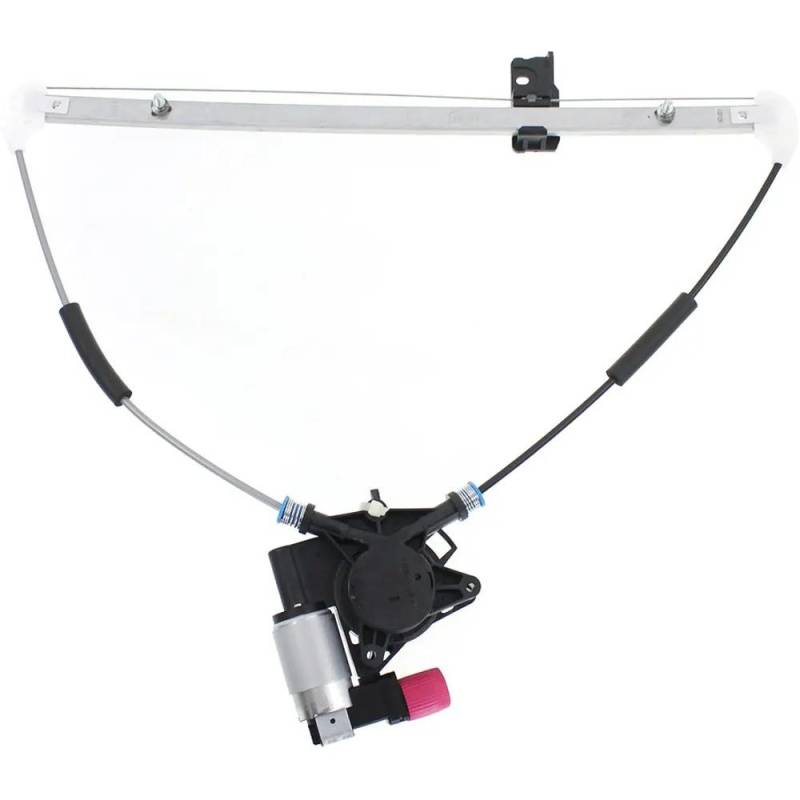

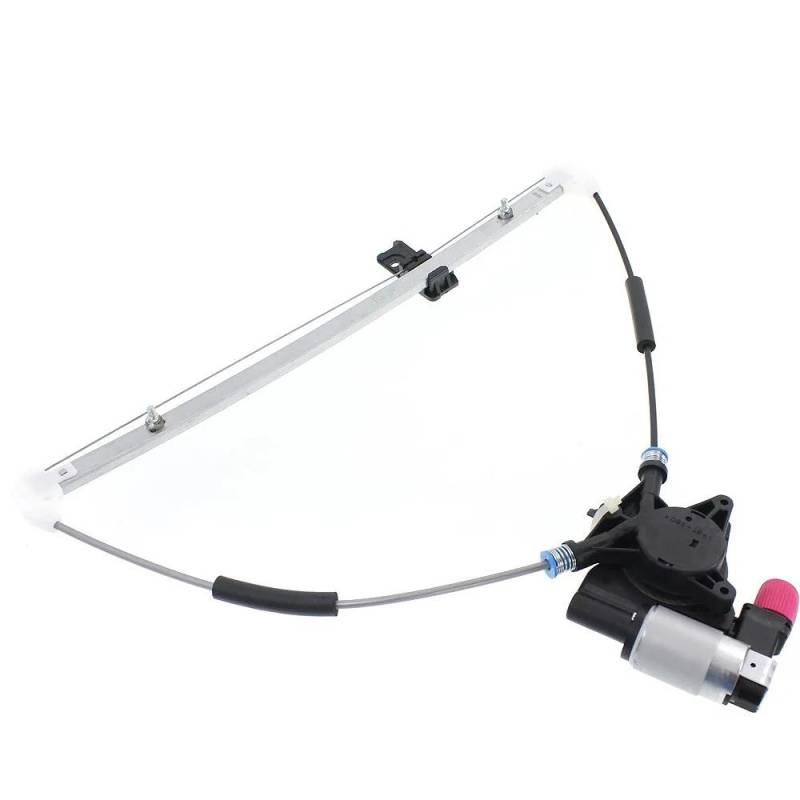

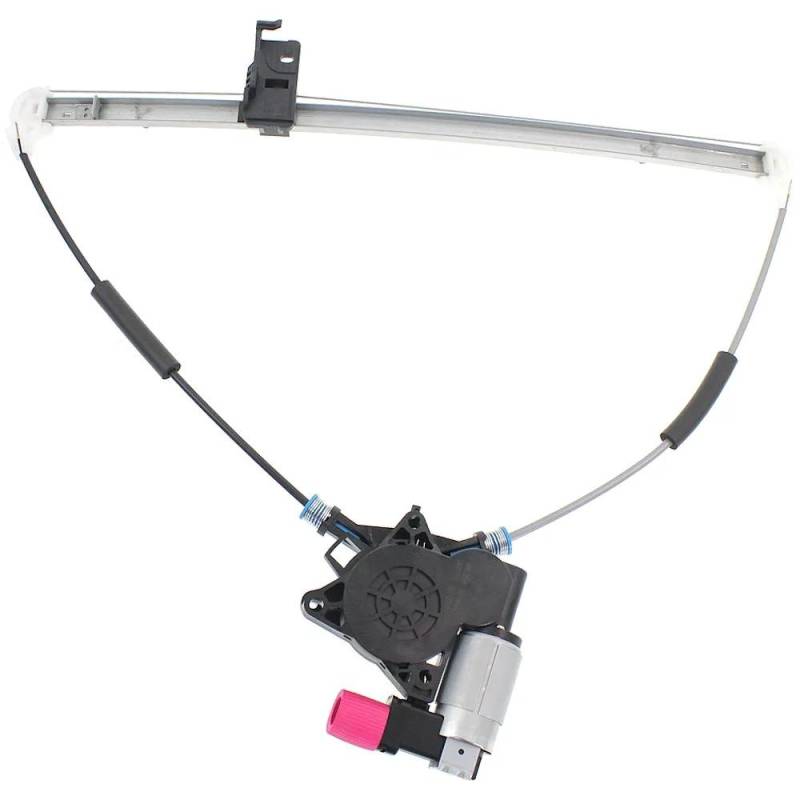

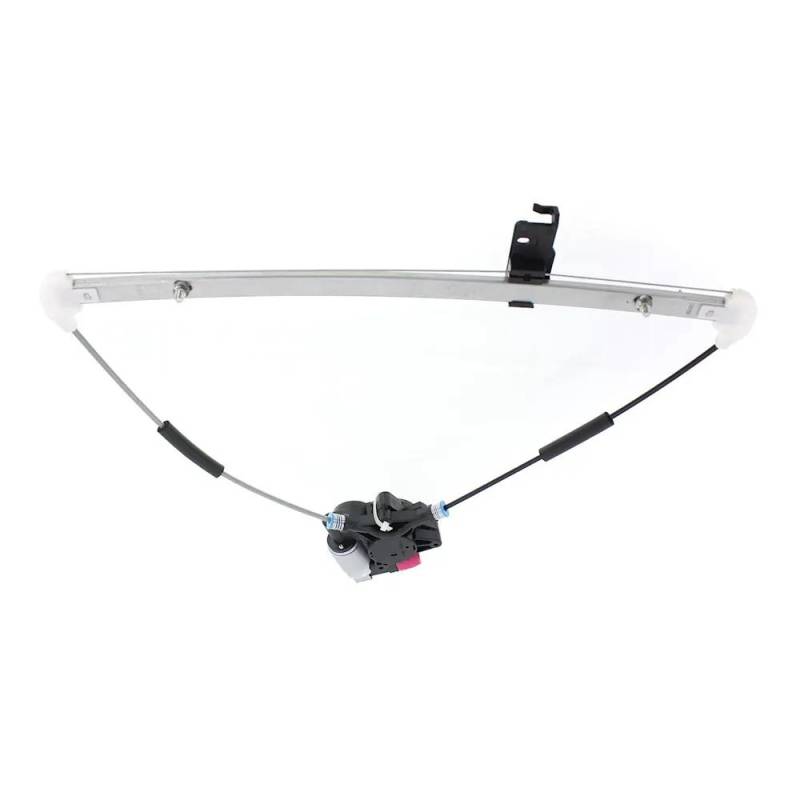

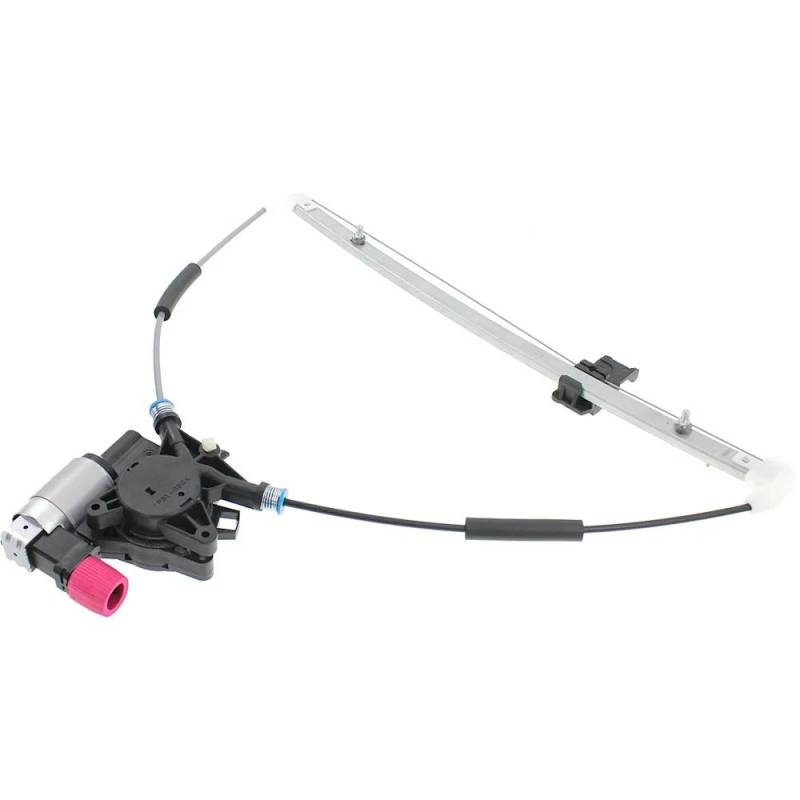

Mazda calls it the regulator, window. Owners call it the window regulator, window lift or window motor assembly. It is the scissor or cable mechanism inside the door that carries the glass up and down, and this one ships as a complete assembly with the power motor already fitted to it, so the old motor is not reused.
