OEM PART NUMBERS:
• Mazda: BP6Y3325XD (Early-spec primary)
• Mazda: BP6Y3325XE (Early-spec rev E)
• Mazda: BP6Y3325XF (Early-spec rev F)
• Mazda: C26Y3325XA (Late-spec rev A)
• Mazda: C26Y3325XB (Late-spec rev B)
• Mazda: C26Y3325XC (Late-spec rev C)
• Bosal: BR0994682X (Bosal OE-style catalog ref)

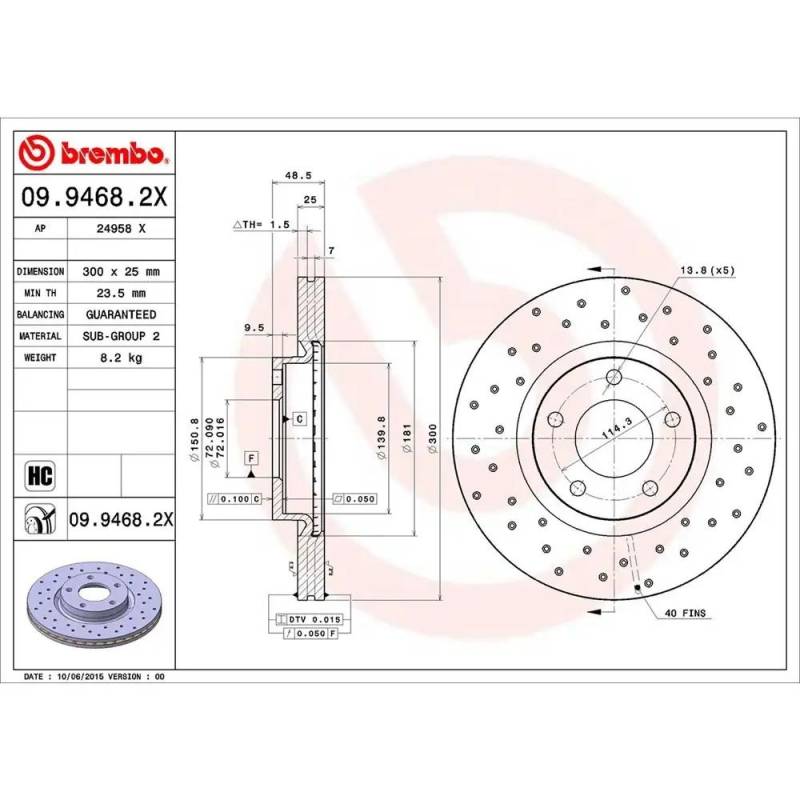

SPECIFICATIONS:

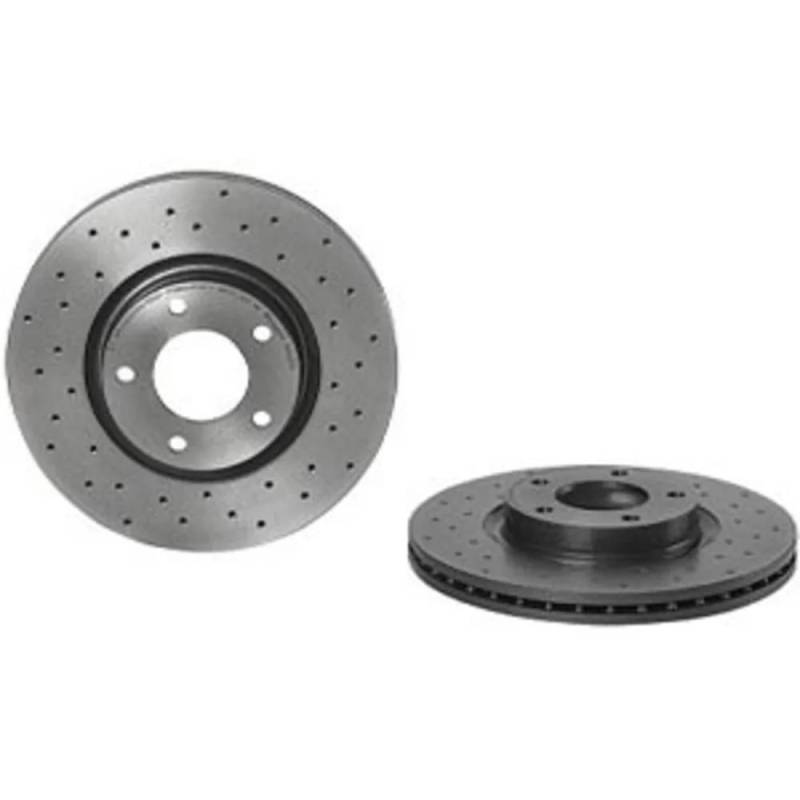

• Product: Front Brake Disc
• Type: Front Brake Disc (Vented)
• Position: Front (Driver or Passenger Side)
• Disc Diameter: 300 mm
• Disc Construction: Vented
• Disc Design: Cross-Drilled
• Disc Material: Cast Iron
• Disc Finish: UV Coated
• Number of Lugs: 5
• Disc Height: 48.5 mm
• Minimum Thickness: 23.5 mm
• Nominal Thickness: 25 mm
• Centering Diameter: 72 mm
• Wheel-Bolt Torque: 103 Nm
• Recommended Use: OE Replacement
• Product Fit: Direct Fit
• Platform / Engine Family: MZR L3-VE 2.3L I4
• Engine Notes: Front Brake Disc for 2004-2010 Mazda 3 (BK chassis 1st-gen) + 2006-2010 Mazda 5 (CR chassis 1st-gen C-segment minivan). 2.3L MZR L3-VE DOHC 16-valve NA inline-4 (153 hp gas). Cross-drilled 300 mm rotor, 5-lug, UV-coated. 6 real Mazda OEM PNs span BP6Y early-spec and C26Y late-spec supersession.
• Year Range: 2004-2010
• Condition: New
MAZDA APPLICATIONS:
• Mazda 3 S 2.3L (2004-2010)
• Mazda 3 SP23 2.3L (2005)
• Mazda 5 Grand Touring 2.3L (2007-2010)
• Mazda 5 Sport 2.3L (2006-2010)
• Mazda 5 Touring 2.3L (2006-2010)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
