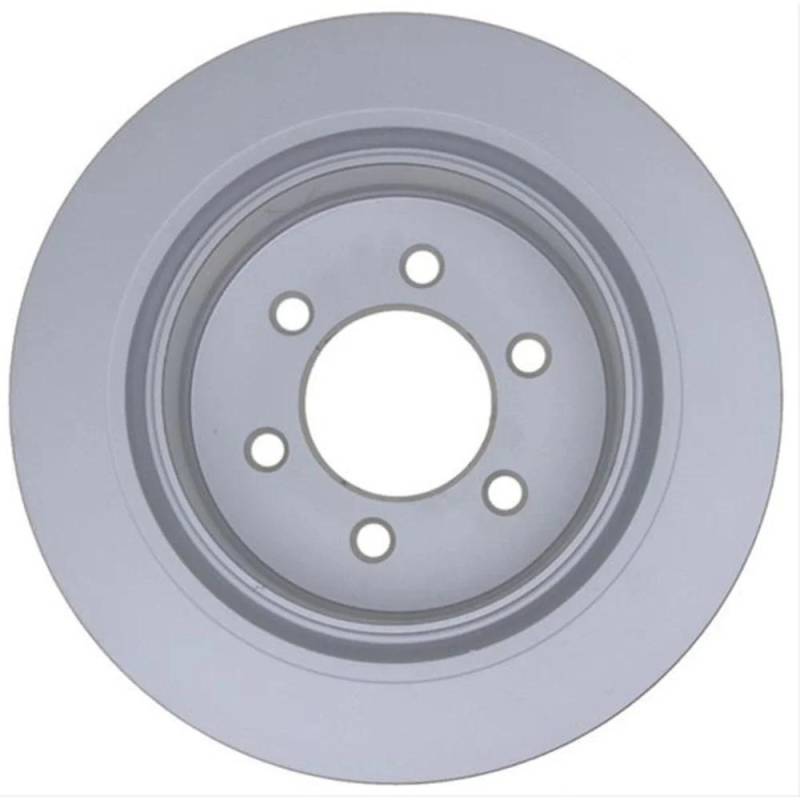

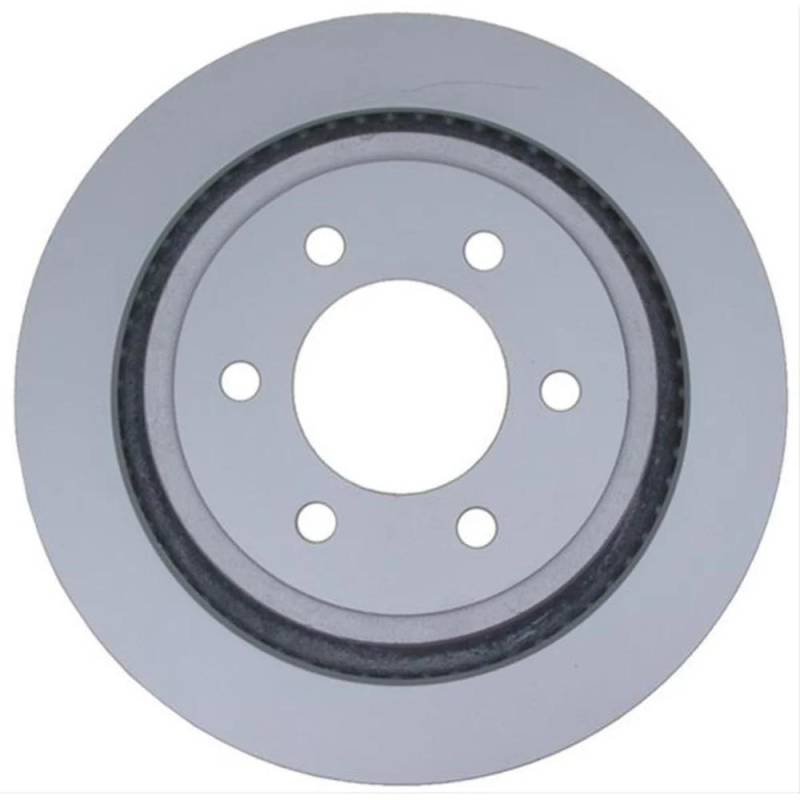

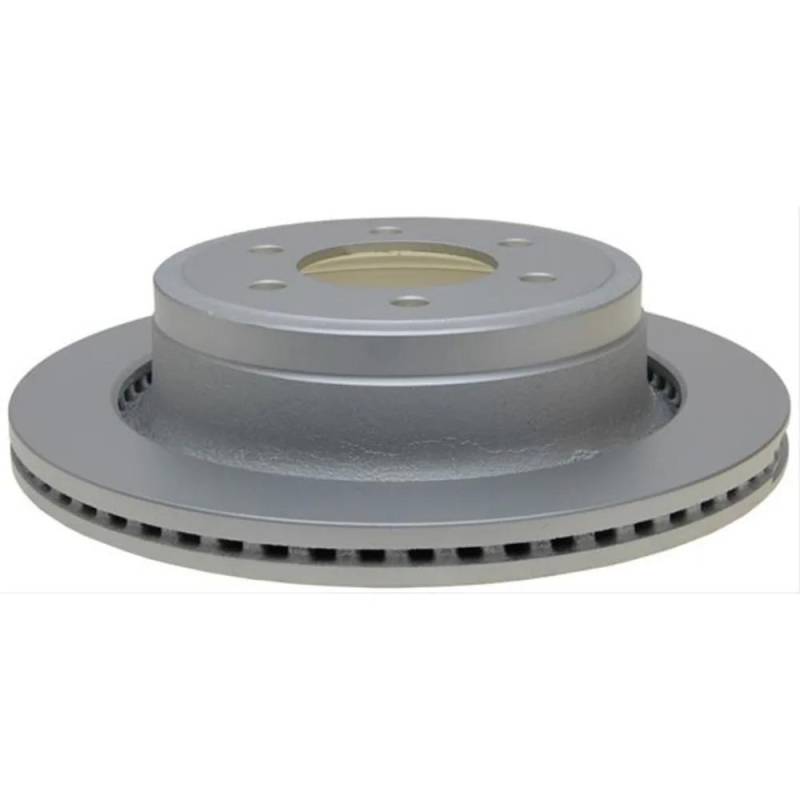

PRODUCT TYPE: BRAKE DISC
SPECIFICATIONS:
BOLT PATTERN: 6 X 5.32 IN. BOLT PATTERN
DISC CONSTRUCTION: VENTED
DISC DESIGN: PLAIN SURFACE
DISC DIAMETER: 348.23 MM
DISC FINISH: COATED
DISC MATERIAL: CARBON STEEL
NOTES: 3.14 IN. OVERALL HEIGHT; 0.98 IN. NOMINAL THICKNESS; 0.91 IN. DISCARD THICKNESS; 3.54 IN. MINIMUM CENTER HOLE DIAMETER; 3.55 IN. MAXIMUM CENTER HOLE DIAMETER; (6) BOLT HOLES; 0.61 IN. WHEEL BOLT HOLE MINIMUM DIAMETER; 0.63 IN. WHEEL BOLT HOLE MAXIMUM DIAMETER; 5.31 IN. WHEEL BOLT CIRCLE DIAMETER; DRUM-IN-HAT BRAKE ROTOR TYPE; STANDARD PERFORMANCE
NUMBEROF LUGS: 6 LUGS
POSITION: DRIVER OR PASSENGER SIDE REAR
RECOMMENDED USE: OE REPLACEMENT
REPLACES:
MANUFACTURER PART NUMBER: RAY680976FZN
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
