OEM PART NUMBERS:
• Cole Hersee (Littelfuse): 24712GS7BX / 24712-GS7-BX (Boxed)
• Cole Hersee (Littelfuse): 24712GS7 / 24712-GS7 (Replaces)
• Cole Hersee (Littelfuse): 24712GS7BP (Bulk Pack)
SPECIFICATIONS:

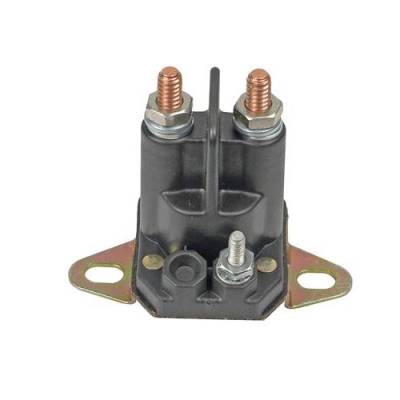

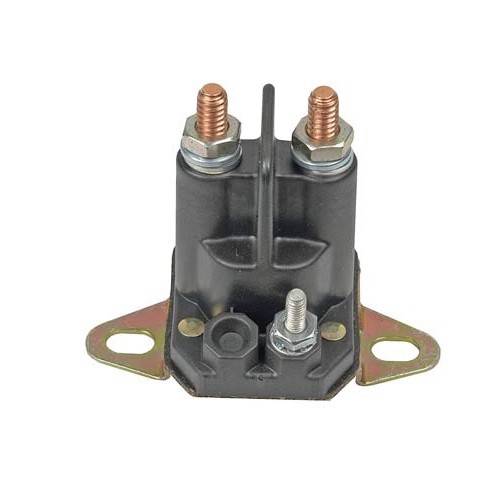

• Type: SPST Normally Open Intermittent Duty Solenoid Relay
• Voltage: 12V DC
• Continuous Current: 200 Amps
• Surge/Inrush Current: 300 Amps
• Duty Cycle: Intermittent
• Contact Material: Copper
• Housing Material: Plastic (Sealed / Grounded Coil)
• Contact Stud Threads: 1/4"-20 (hex nuts and lock washers included)
• Coil Terminal: (1) 8-32 Threaded Stud for Coil Excitation
• Number of Terminals: 3 Total (2 Battery/Motor Studs + 1 Coil Stud)
• Mounting: Flat 180 (F180) Metal Bracket
• Condition: New / Genuine Cole Hersee (Littelfuse) / Individually Boxed
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
