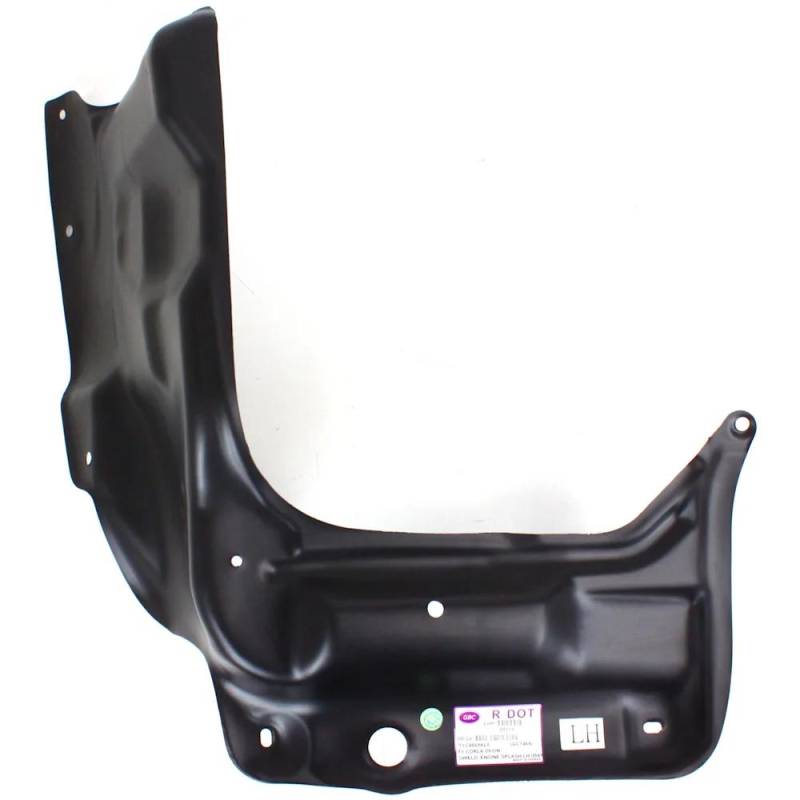

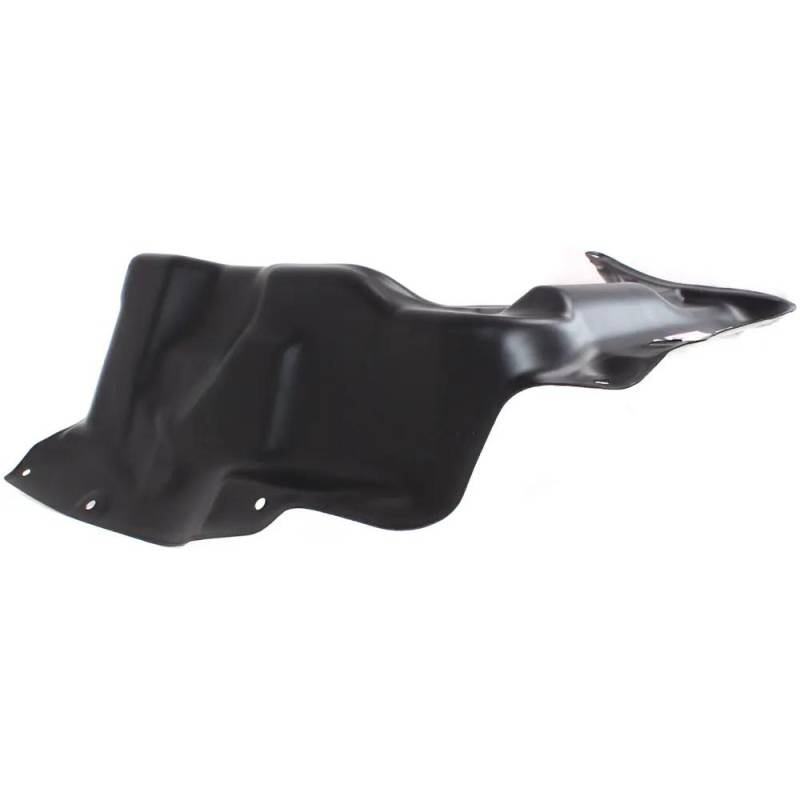

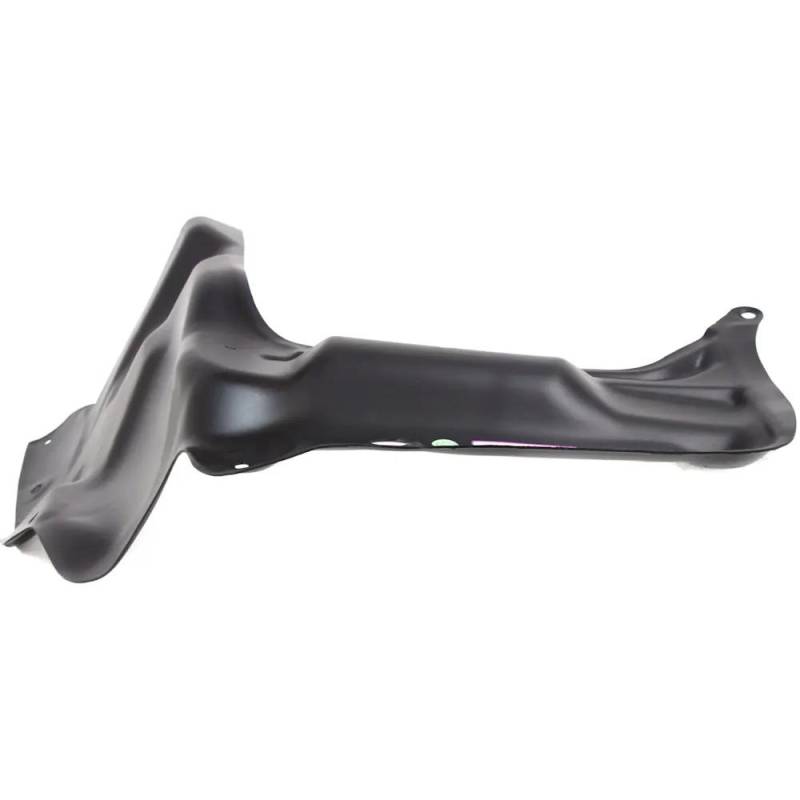

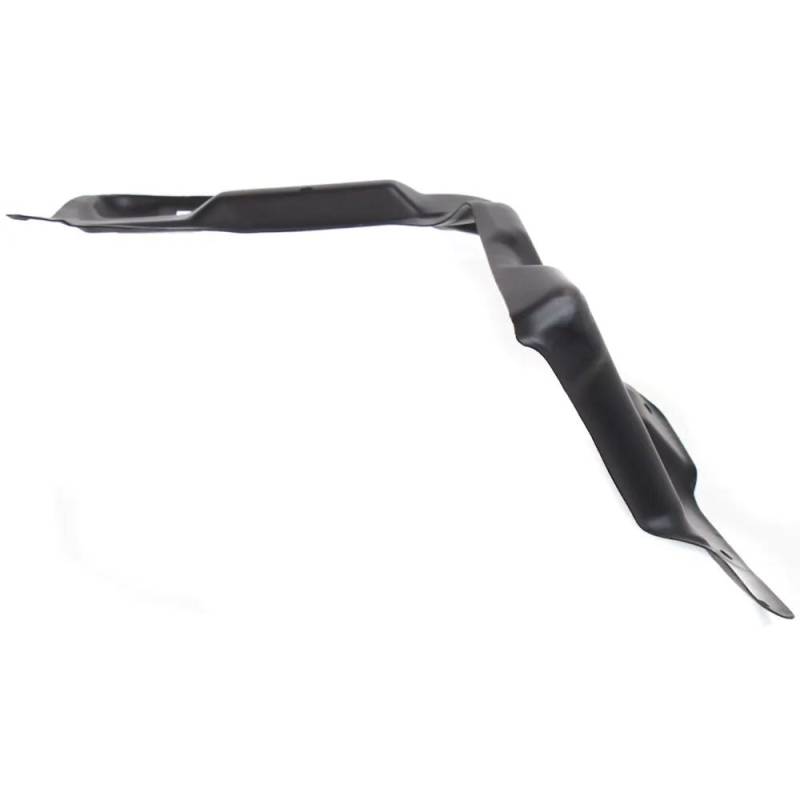

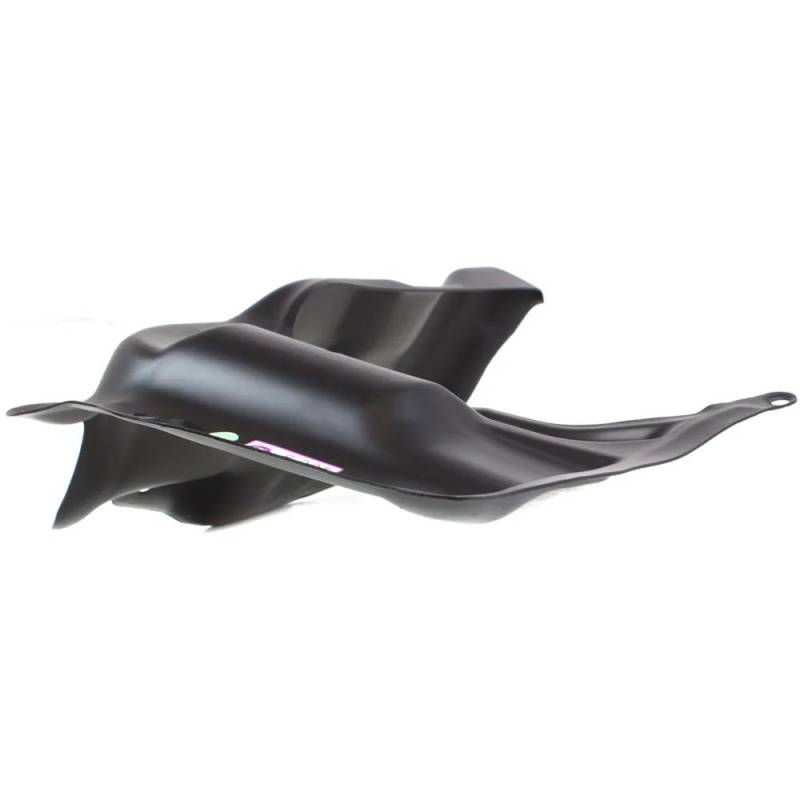

Engine Splash Shield Left Compatible With 2009-2014 Toyota Corolla L 1.8L (12-13) Le 1.8L (09-13) S

OEM PART NUMBERS:
• Toyota: 51442-02330 / 5144202330 (Left (Driver) Side)
• Apex: ARBT310105 (Catalog ref)

SPECIFICATIONS:
• Product: Engine Splash Shield Left
• Type: Engine Splash Shield / Fender Liner
• Position: Left (Driver Side)
• Material: Plastic
• Notes: Corolla E140 + Matrix E140 wagon (mostly auto trans)
• Recommended Use: OE Replacement
• Product Fit: Direct Fit
• Platform / Engine Family: 2AZ-FE 2ZR-FE
• Engine Notes: Left (driver-side) engine splash shield / fender liner for 2009-2014 Toyota Corolla E140 10th-gen sedan + Matrix E140 compact wagon — mirror of the right-side ARBT310104 unit. Engine families: 1.8L 2ZR-FE I4 (132 hp), 2.4L 2AZ-FE I4 (158 hp). Most fitment entries ship with automatic transaxle only. Catalog reference ARBT310105.
• Year Range: 2009-2014
• Condition: New

TOYOTA APPLICATIONS:
• Toyota Corolla Base 1.8L (2009-2011)
• Toyota Corolla CE 1.8L (2009-2013)
• Toyota Corolla L 1.8L (2012-2013)
• Toyota Corolla LE 1.8L (2009-2013)
• Toyota Corolla S 1.8L (2009-2013)
• Toyota Corolla XLE 1.8L (2009-2010)
• Toyota Corolla XRS 2.4L (2009-2012)
• Toyota Matrix AWD 2.4L (2011-2013)
• Toyota Matrix Base 1.8L (2009-2014)
• Toyota Matrix S 2.4L (2009-2013)
• Toyota Matrix XR 2.4L (2009-2010)
• Toyota Matrix XRS 2.4L (2009-2012)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
