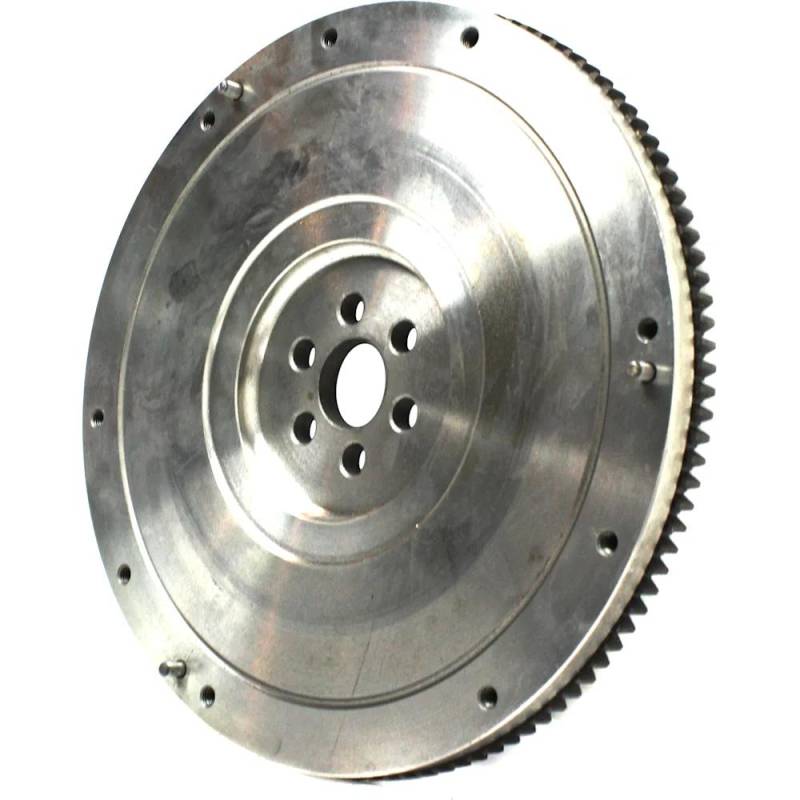

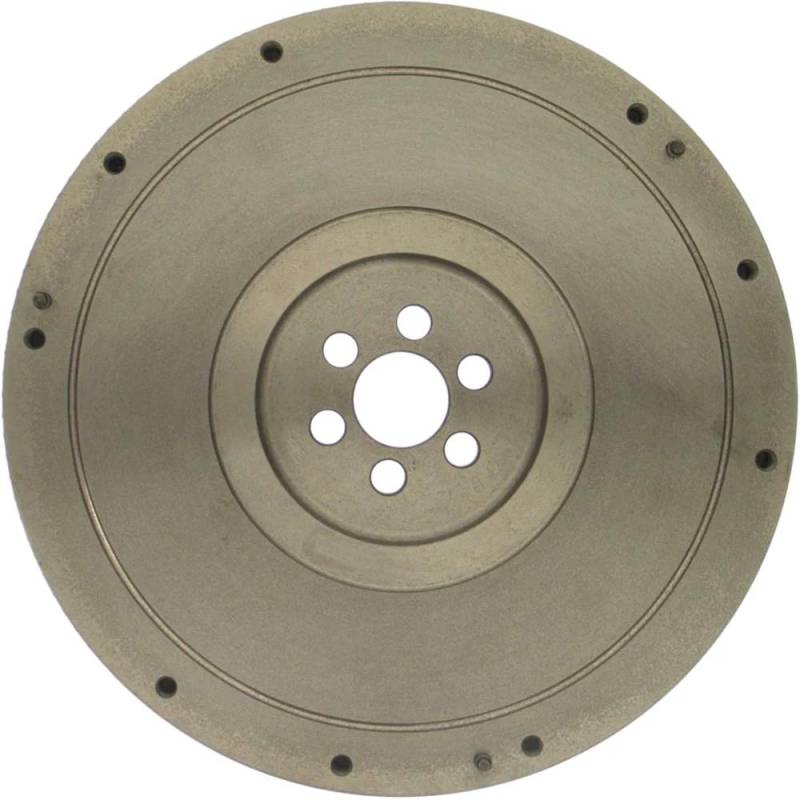

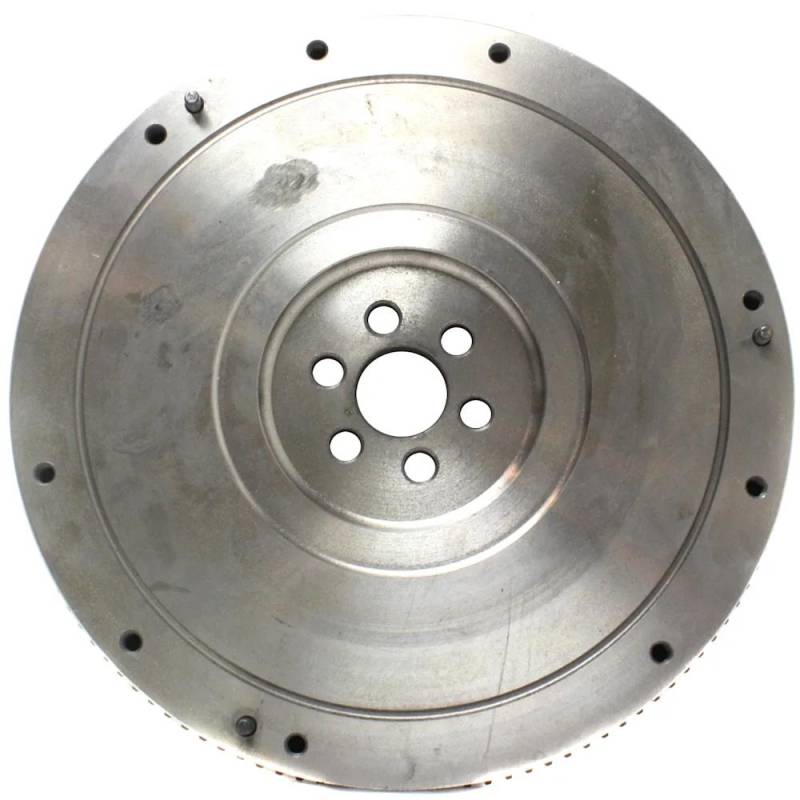

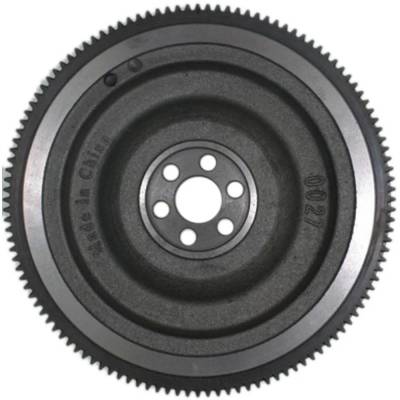

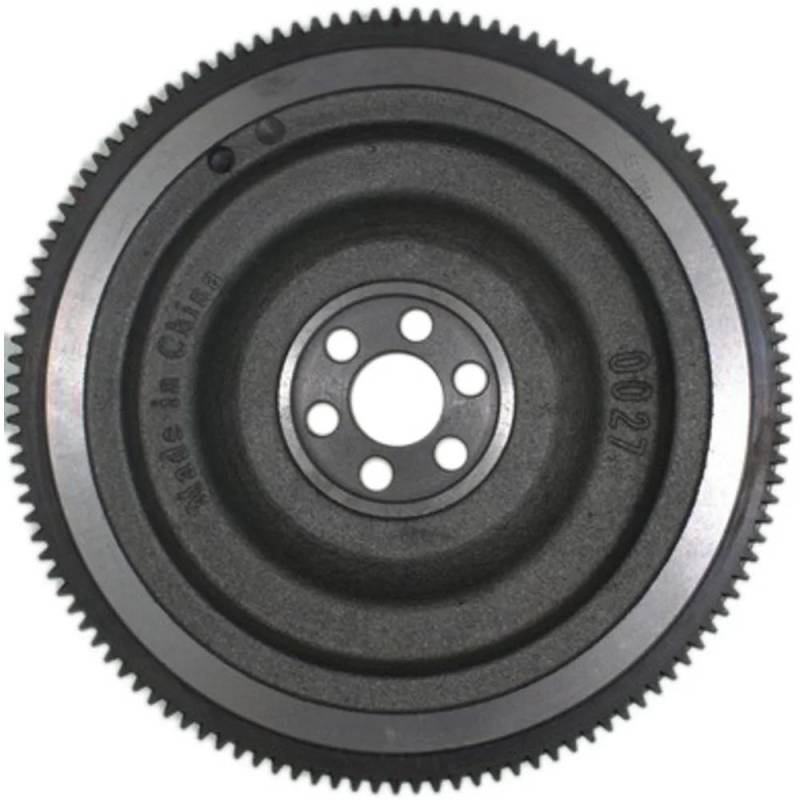

PRODUCT TYPE: FLYWHEEL
SPECIFICATIONS:
COVER PRESSURE PLATE MOUNTING BOLT HOLE DIAMETER: 8 MM
COVER PRESSURE PLATE MOUNTING HOLE DIAMETER: 8 MM
COVER PRESSURE PLATE MOUNTING HOLE TO FLYWHEEL QUANTITY: 9.0
DOWEL PIN DIAMETER COVER TO FLYWHEEL: 6 MM
DOWEL PIN QUANTITY COVER TO FLYWHEEL: 3.0
FLYWHEEL TO CRANKSHAFT BOLT CIRCLE DIAMETER: 12.5 MM
MATERIAL: CAST IRON
MOUNTING HOLE DIAMETER: 12.5 MM
MOUNTING HOLE QUANTITY: 6.0
PRODUCT FIT: DIRECT FIT
RECOMMENDED USE: OE REPLACEMENT
RING GEAR OUTSIDE DIAMETER: 306.3 MM
THICKNESS AT TEETH: 1.1 MM
TOOTH QUANTITY: 120 TOOTH COUNT
REPLACES:
MANUFACTURER PART NUMBER: S2NFW5301
OEM INTERCHANGE PART NUMBER 1: 1231085G06, 12310F4001, 12310F4004, 12310F4500, 12310N4256, 1231085G05
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
