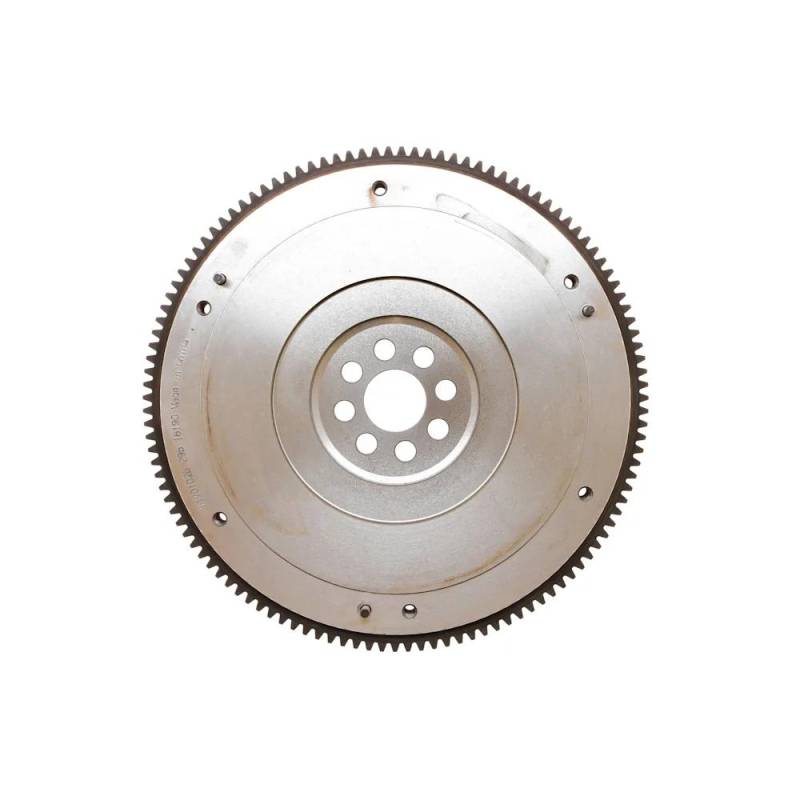

New Cast Iron Flywheel Compatible With Honda Cr-V Ex 4 Cyl 2.4L Element Lx 4 Cyl 2.4L Element Sc 4

PRODUCT TYPE: FLYWHEEL

SPECIFICATIONS:
COVER PRESSURE PLATE MOUNTING BOLT HOLE DIAMETER: 8 MM
COVER PRESSURE PLATE MOUNTING HOLE DIAMETER: 8 MM
COVER PRESSURE PLATE MOUNTING HOLE TO FLYWHEEL QUANTITY: 6.0
DOWEL PIN DIAMETER COVER TO FLYWHEEL: 6 MM
DOWEL PIN QUANTITY COVER TO FLYWHEEL: 3.0
FLYWHEEL TO CRANKSHAFT BOLT CIRCLE DIAMETER: 12.3 MM
MATERIAL: CAST IRON
MOUNTING HOLE DIAMETER: 12.3 MM
MOUNTING HOLE QUANTITY: 8.0
PRODUCT FIT: DIRECT FIT
RECOMMENDED USE: OE REPLACEMENT
RING GEAR OUTSIDE DIAMETER: 306 MM
THICKNESS AT TEETH: 1 MM
TOOTH QUANTITY: 119 TOOTH COUNT

REPLACES:
MANUFACTURER PART NUMBER: SAHNFW9142
OEM INTERCHANGE PART NUMBER 1: 22100PNB003
