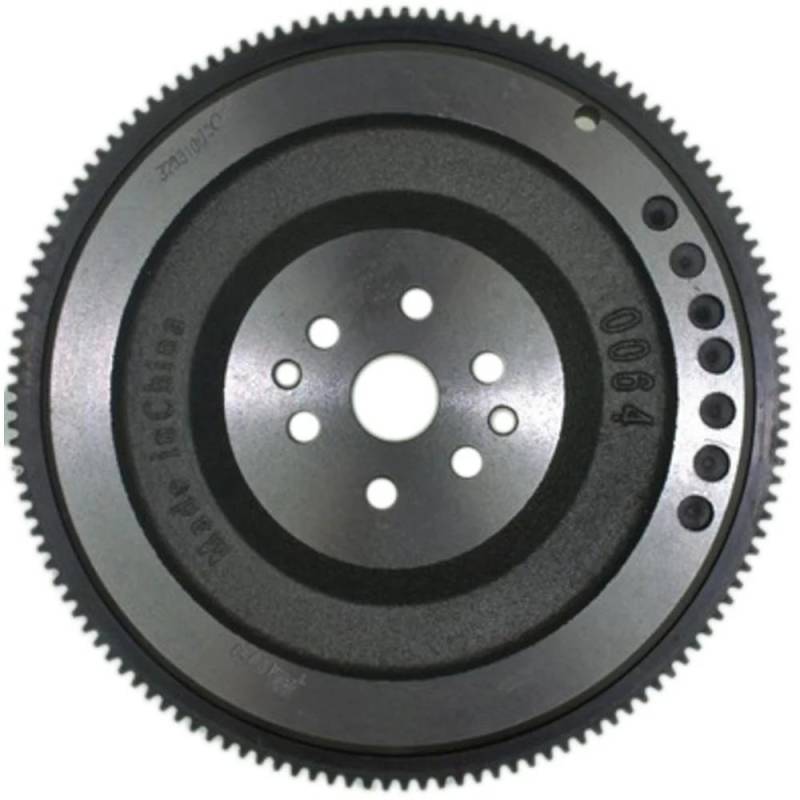

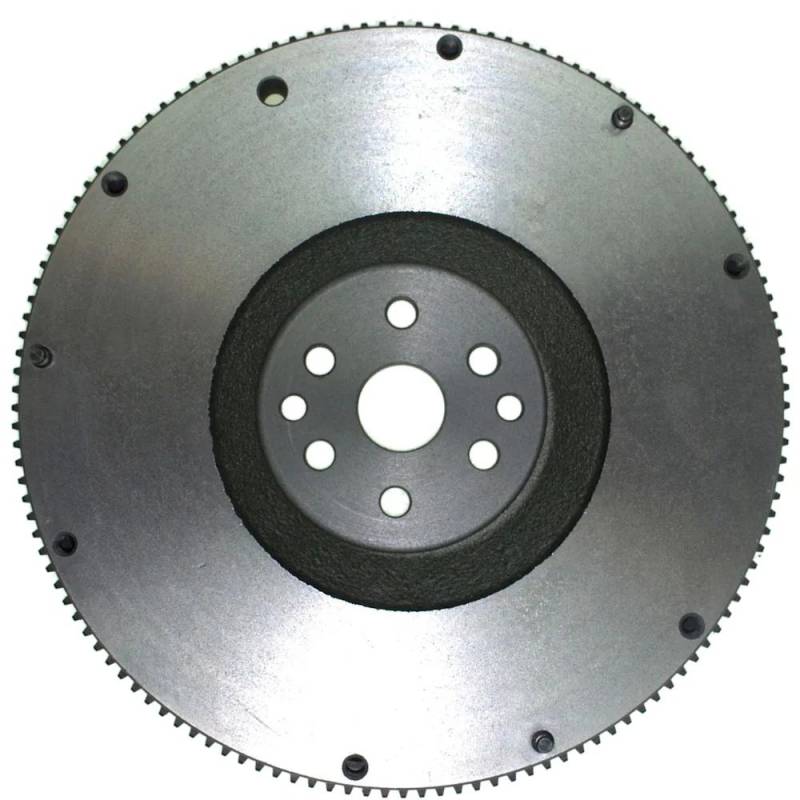

PRODUCT TYPE: FLYWHEEL
SPECIFICATIONS:
COVER PRESSURE PLATE MOUNTING BOLT HOLE DIAMETER: 8 MM
COVER PRESSURE PLATE MOUNTING HOLE DIAMETER: 8 MM
COVER PRESSURE PLATE MOUNTING HOLE TO FLYWHEEL QUANTITY: 6.0
DOWEL PIN DIAMETER COVER TO FLYWHEEL: 6.2 MM
DOWEL PIN QUANTITY COVER TO FLYWHEEL: 3.0
DOWEL PIN QUANTITY FLYWHEEL TO CRANK: 2.0
FLYWHEEL TO CRANKSHAFT BOLT CIRCLE DIAMETER: 10.1 MM
MATERIAL: CAST IRON
MOUNTING HOLE DIAMETER: 10.1 MM
MOUNTING HOLE QUANTITY: 6.0
PRODUCT FIT: DIRECT FIT
RECOMMENDED USE: OE REPLACEMENT
RING GEAR OUTSIDE DIAMETER: 286 MM
THICKNESS AT TEETH: 1.2 MM
TOOTH QUANTITY: 132 TOOTH COUNT
REPLACES:
MANUFACTURER PART NUMBER: S2NFW1152
OEM INTERCHANGE PART NUMBER 1: F57Z6375B
OEM INTERCHANGE PART NUMBER 2: ZZM411500
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
