YAMAHA OEM PART NUMBERS (SOURCE):
• Yamaha: 6CE-W0078-00-00 (Source OEM Interchange #1)
• Yamaha: 6CE-W0078-01-00 (Source OEM Interchange #2)
• Yamaha: 6CE-W0078-02-00 (Source OEM Interchange #3)
• Manufacturer Part Number: 725-455 (Source Catalog Reference)
YAMAHA OEM CROSS-REFERENCES (RESEARCH-ADDED):
• Yamaha: 6CE-44352-00-00 (Impeller Component P/N)
• Yamaha: 6CE-44352-00 (Hyphenated Variant)
• Yamaha: 6CEW007800 (No-Dash Variant of 6CE-W0078-00-00)
• Yamaha: 6CEW007801 (No-Dash Variant of 6CE-W0078-01-00)
• Yamaha: 6CEW007802 (No-Dash Variant of 6CE-W0078-02-00)
• Item Reference: 725-455
SPECIFICATIONS:
• Product Type: Water Pump Service Kit / Repair Kit
• Unit Type: Yamaha Outboard OEM Design
• Application: Yamaha 4.2L V6 4-Stroke Outboard
• HP Range: 200 HP / 225 HP / 250 HP / 300 HP
• Years: 2010-2022 (200 HP Limited to 2021-2022)
• Kit Type: Complete Water Pump Rebuild Kit
• Installation: Lower Unit / Gearcase
• Impeller: 6-Blade Neoprene
• Impeller Height: 36.0 mm (1.42 in)
• Impeller OD: 90.0 mm (3.54 in)
• Impeller Shaft Diameter: 22.7 mm (0.89 in)
• Impeller Weight: 3.15 oz
• Quantity: 1 Kit (Complete)
• Condition: New Aftermarket
• Source: Aftermarket Quality Parts
• Recommended Use: OE Replacement for Yamaha 4.2L V6 Water Pump
• Product Fit: Direct Fit for F200/F225/F250/F300/VF250/VF300 SHO

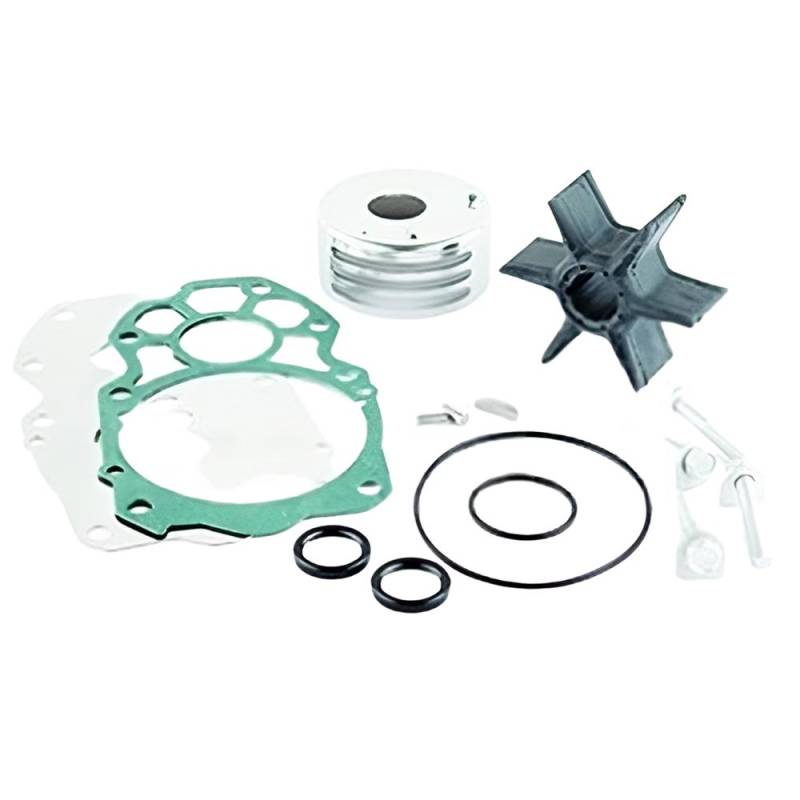

KIT COMPONENTS INCLUDED:
• Water Pump Impeller (Neoprene)
• Wear Plate
• Insert Cup
• Water Pump Gasket
• Installation Bolts
• Impeller Key
• O-Ring
• Dowel Pin
• Housing Seals
• Lower Oil Drain Gasket
VEHICLE APPLICATIONS SUMMARY:
• Yamaha F200 SHO 4.2L V6 4-Stroke Outboard (2021-2022)
• Yamaha F225 A/B / LF225 A/B 4.2L V6 4-Stroke (2010-2022)
• Yamaha F250 A/B / LF250 A/B 4.2L V6 4-Stroke (2010-2022)
• Yamaha F300 / LF300 / FL300 4.2L V6 4-Stroke (2010-2022)
• Yamaha VF250 / VF300 SHO 4.2L V6 4-Stroke (2015-2022)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
