New Lower Unit Gearcase Seal Kit Compatible With 2014-2018 Suzuki Df50 50Hp 3-Cyl 4-Stroke Outboard

JOHNSON / EVINRUDE / SUZUKI 50-70HP LOWER UNIT GEARCASE SEAL KIT — Comprehensive Service Kit (1998-2018):

REBADGED ENGINE CONTEXT:
• Johnson/Evinrude 60-70HP 4-Stroke Outboards (2005-2006) Are Rebadged Suzuki Engines
• Same Physical Engine Sold Under Both Brand Names
• This Kit Fits Both Suzuki Original AND Johnson/Evinrude Rebadged Versions
• 2-Stroke OMC-Built Johnson/Evinrude Use Different Kit

SUZUKI 4-CYLINDER 4-STROKE APPLICATIONS:
• Suzuki DF60 60 HP 4-Cyl 4-Stroke Outboard (1998-2009)
• Suzuki DF70 70 HP 4-Cyl 4-Stroke Outboard (1998-2009)
• Suzuki DF60T 60 HP 4-Cyl Outboard (2001-2009)
• Suzuki DF70T 70 HP 4-Cyl Outboard (2001-2008)

SUZUKI 3-CYLINDER 4-STROKE APPLICATIONS:
• Suzuki DF50 50 HP 3-Cyl 4-Stroke Outboard (2014-2018)
• Suzuki DF60 60 HP 3-Cyl 4-Stroke Outboard (2010-2018)

JOHNSON / EVINRUDE 4-STROKE APPLICATIONS (Rebadged Suzuki Engines):
• Johnson 60 HP 4-Cyl 4-Stroke Outboard (2005-2006)
• Johnson 70 HP 4-Cyl 4-Stroke Outboard (2005-2006)
• Evinrude 60 HP 4-Cyl 4-Stroke Outboard (2005-2006)
• Evinrude 70 HP 4-Cyl 4-Stroke Outboard (2005-2006)
• Same Physical Engine as Suzuki DF60 / DF70 (Rebadged)

⚠️ NOT COMPATIBLE WITH:
• 2-Stroke OMC-Built Johnson/Evinrude 60-70HP (Different Engine Architecture)
• Suzuki DT60 / DT70 2-Stroke (Different Engine Architecture)
• Suzuki DF40 / DF50 (4-Cyl) — Use 25700-88L03
• Suzuki DF40A / DF50A / DF60A — Use 25700-88L03 (Different Generation)
• Suzuki DF70A / DF80A / DF90A — Use 25700-87L01 (Different Platform)
• Suzuki DF25 / DF30 — Use 25700-95D03 (Different Kit / Smaller HP)

SPECIFICATIONS:
• Type: Lower Unit Gearcase Seal Kit (Comprehensive)
• Application: Suzuki DF50 / DF60 / DF70 4-Stroke Outboards
• Application: Johnson/Evinrude 60-70HP 4-Stroke (Rebadged Suzuki)
• HP Range: 50 HP through 70 HP
• Engine Type: 4-Stroke ONLY
• Cylinder Configuration: 3-Cyl (Newer 2010+ Models) AND 4-Cyl (Older 1998-2009 Models)
• Year Coverage: 1998-2018
• Includes: Gasket, O-Rings, Oil Seals, Drain Plug Gasket, Other Seal Components
• Material: High-Quality Marine Seal Materials
• Function: Complete Lower Unit Seal Replacement
• Condition: New

OEM PART NUMBERS:
• Suzuki: 25700-99E00 (Primary OEM)
• Johnson/Evinrude/OMC: 5034776 (OEM — Rebadged Cross-Ref)

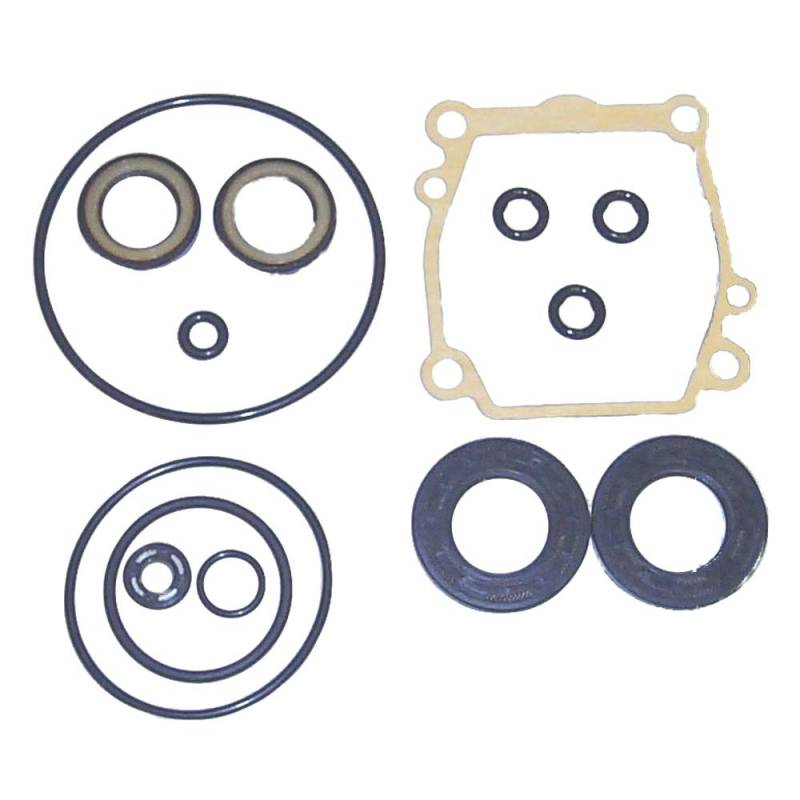

KIT CONTENTS:
• Lower Unit Gearcase Gasket
• Multiple O-Rings (Various Sizes / Positions)
• Oil Seals (Prop Shaft and Drive Shaft Positions)
• Drain Plug Gasket
• Other Required Seal Kit Components

WHEN TO USE THIS KIT:
• Lower Unit Complete Rebuild
• Annual Lower Unit Service Interval
• Water in Gear Oil (White / Milky Appearance)
• Gear Oil Leaking from Prop Shaft Area
• Gear Oil Leaking from Drive Shaft Area
• Replacing Forward / Reverse Gear Thrust Bearings
• Replacing Prop Shaft Bearings
• Drive Shaft Service
• Routine Preventive Maintenance

SYMPTOMS REQUIRING SEAL KIT REPLACEMENT:
• Milky / White Gear Oil at Service Drain (Water Contamination)
• Gear Oil Leaking from Prop Shaft Area
• Gear Oil Leaking from Drive Shaft Area
• Failed Pressure Test During Routine Service
• Lower Unit Running Hot
• Cloudy / Discolored Gear Oil
• Loss of Lubrication
• Routine Annual Service Interval Reached

INSTALLATION:
• Step 1: Drain old gear oil completely (note color / condition)
• Step 2: Remove lower unit from outboard
• Step 3: Take photos and notes of disassembly order / orientation
• Step 4: Disassemble gearcase per service manual
• Step 5: Remove all old seals, gaskets, o-rings
• Step 6: Clean all sealing surfaces thoroughly
• Step 7: Inspect gearcase housing for damage or corrosion
• Step 8: Install new seals with proper orientation (lip direction critical)
• Step 9: Install new gaskets and o-rings with light marine grease
• Step 10: Reassemble gearcase per service manual torque specs
• Step 11: Pressure test gearcase before reinstalling lower unit
• Step 12: Reinstall lower unit to outboard
• Step 13: Refill with proper fresh gear lube
• Step 14: Test forward and reverse operation

⚠️ IMPORTANT — SUZUKI MOTORS DON'T ALWAYS GO BY YEAR:
• Suzuki motors don't always correspond to specific manufacture years
• Identify your engine by MODEL NUMBER (e.g., DF60T, DF70T) AND OEM part number
• Cross-reference your specific outboard serial number for accurate fitment

NOTE: Verify your OEM part number 25700-99E00 (Suzuki) or 5034776 (Johnson/Evinrude) before ordering. Suzuki uses different seal kits across model generations and platforms — DF40/50/60A uses 25700-88L03, DF70A/80A/90A uses 25700-87L01. ***2-stroke OMC-built Johnson/Evinrude 60-70HP also use a different kit*** — only Johnson/Evinrude 4-stroke (rebadged Suzuki) is compatible with this kit. Replace all seals concurrently for proper lower unit longevity.
