New 14 Awg Black Marine Wire 100Ft Tinned Copper Class K Stranded Compatible With Marine 12V Dc

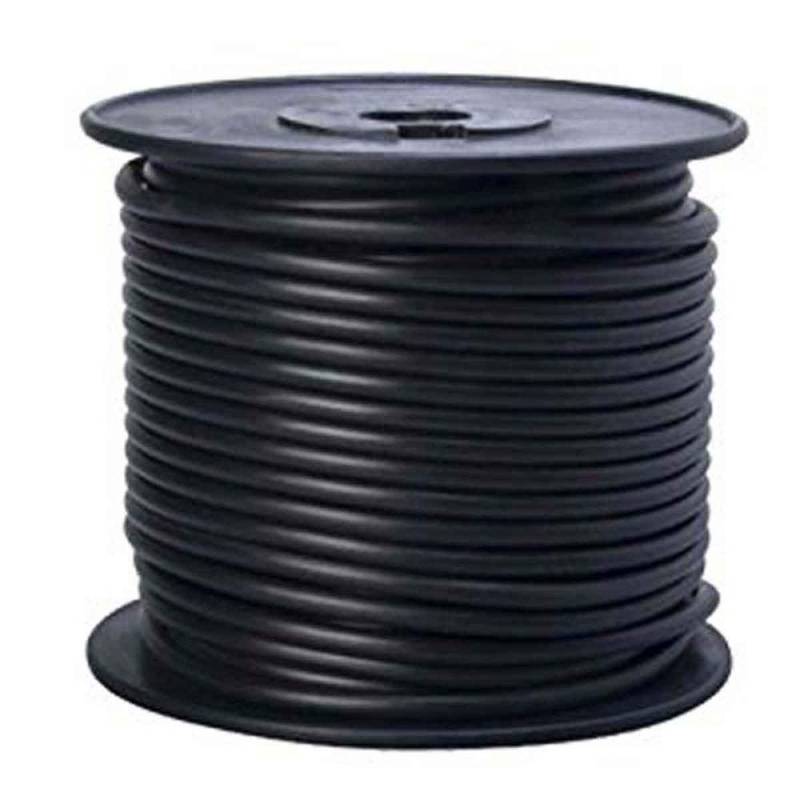

UNIVERSAL MARINE WIRE — 14 AWG BLACK TINNED COPPER PRIMARY WIRE 100 FT SPOOL:

ABYC E-11 STANDARD — BLACK COLOR USE (TRADITIONAL DC NEGATIVE):
Per ABYC E-11 marine electrical standards, BLACK is the traditional color for DC negative current-carrying conductors and ground return paths. Black remains acceptable per current ABYC standards (yellow has been the preferred color since the 2008 revision, but black is still widely used). This 14 AWG black marine wire is intended for branch circuit DC negative wiring in existing/legacy harness installations and for repairs matching black wiring schemes.

COMMON 14 AWG BLACK MARINE BRANCH CIRCUIT DC NEGATIVE APPLICATIONS:
• Branch Circuit DC Negative Returns (Traditional Installations)
• Distribution Panel Branch Negative Wiring (Black Harness Matching)
• Helm Electronics Negative Wiring (GPS, Chartplotters, Fishfinders, VHF)
• Cabin Lighting Circuit Returns
• Navigation Light Negative Returns (Bow, Stern, Anchor, Mast)
• Smaller Bilge Pump Returns (Up to 1100 GPH)
• Livewell and Aerator Pump Negative Wiring
• Stereo Speaker Negative Returns
• Cigarette Lighter / USB Outlet Negative Branches
• Trim Tab Indicator Light Negative
• Cabin Fan and Blower Returns
• Dashboard Gauge Light Returns
• Pre-2008 Construction with Black DC Negative Wiring
• Engine Manufacturer Harness Color Matching
• Repair and Extension of Existing Black Harness Wiring
• Retrofit Installations Maintaining Black Wiring Scheme

NOTE ON MODERN ABYC PREFERENCE:
ABYC E-11 (2008 revision) lists YELLOW as the preferred color for DC negative in new construction. Black remains acceptable. For new builds requiring modern ABYC compliance, consider yellow (COB-A1014T-04) instead. Black is appropriate for matching existing harnesses, traditional builds, and where black is already the established negative color.

NOT RECOMMENDED FOR (USE 12 AWG OR LARGER):
• Main Battery Negative Cables
• Engine Starter Ground Cables
• Windlass and Anchor Winch Negative Returns
• Bow Thruster Negative Feeds
• Large Inverter Ground Connections (1000W+)
• High-Current Trolling Motor Main Negative Feeds

COMPATIBLE VESSEL TYPES:
• All Powerboats — Center Console, Cuddy Cabin, Express Cruiser, Walk-Around
• All Sailboats — Day Sailers, Cruisers, Racing Yachts, Liveaboards
• Pontoon Boats and Houseboats
• Bass Boats and Bay Boats
• Personal Watercraft (PWC) Wiring Harness Repairs
• Outboard Motor Wiring Harness Repairs
• Sterndrive and Inboard Engine Compartment Branch Wiring
• RV and Trailer Marine-Grade Negative Branch Wiring

STANDARDS COMPLIANCE:
• UL Listed UL1426 Boat Cable Standard
• ABYC E-11 Compliant (American Boat & Yacht Council)
• United States Coast Guard (USCG) Specifications
• Made in USA

FITMENT NOTE:
Universal marine primary wire — fits any marine application requiring 14 AWG black DC negative branch circuit conductor. Not vehicle-specific. Per ABYC E-11, BLACK is the traditional DC negative color (acceptable per current standards). Yellow is preferred for new construction since 2008 — see COB-A1014T-04 for modern yellow. Common DC pairing: red positive (COB-A1014T-01) + black negative (this item) for traditional 12V branch circuits.
