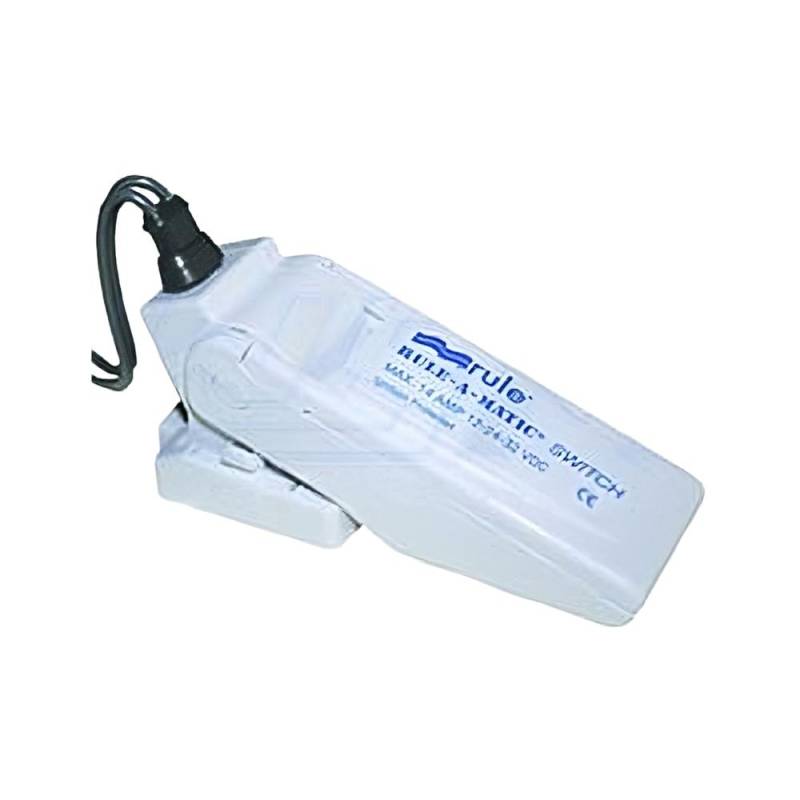

Marine Float Switch Compatible With Rule 35A Rule-A-Matic Bilge Pump Switch 12V 24V 32V Dc 14 Amp

1000-35AA1
OEM PART NUMBERS:
• Rule Model: 35A (Rule-A-Matic Float Switch)
• Also available: Rule 37A SuperSwitch (20A) — Rule 40A Rule-A-Matic Plus (20A)
SPECIFICATIONS:
• Product Type: Automatic Bilge Pump Float Switch (NOT a bilge pump)
• Voltage: 12V / 24V / 32V DC
• Max Current: 14A
• Activation: Mechanical AgSnO2 (Silver Tin Oxide) contacts
• ON Level: 2" water — OFF Level: 3/4" water
• Mercury-Free: Patent-pending snap switch tested 1,000,000+ cycles
• Dimensions: 2-5/8"H x 1-3/4"W x 5"L
• Wire: 16 gauge marine-grade blocked wire
• Base: Detachable snap-in for easy cleaning
• Certifications: Ignition protected
• Warranty: 2-Year
• Condition: New
COMPATIBLE PUMPS:
• Any submersible bilge pump drawing up to 14 amps
• All Rule non-automatic bilge pumps

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $132.30
Sale: $75.60
Save: 43%
Save: $56.70
Qty:
Free Shipping!

Description

UNIVERSAL MARINE FLOAT SWITCH APPLICATION:
• Automatic on/off control for any submersible bilge pump up to 14A
• All boats, pontoons, yachts, fishing boats, cruisers, sailboats
• Commercial and recreational vessels — fresh and saltwater
OPERATION:
• Turns pump ON when water reaches 2"
• Turns pump OFF when water falls to 3/4"
• Simple float principle — no diaphragms, points, or reeds
INSTALLATION:
• Mount on flat surface in bilge compartment
• Detachable base for easy cleaning and maintenance
• 16-gauge marine-grade blocked wire
COMPATIBLE WITH:
• All Rule non-automatic bilge pumps (25DA, 24DA, 20DA, 20F, 20A, 27DA, 02, 10, 14A, etc.)
• Any submersible bilge pump drawing up to 14 amps
