Carburetor Kit Compatible With Yamaha F60 60Hp 4-Stroke 4 Cylinder Outboard 2002-2005

YAMAHA OEM PART NUMBERS:
• 69W-W0093-10-00 (Primary)
• 69WW00931000 (Alternate Format)

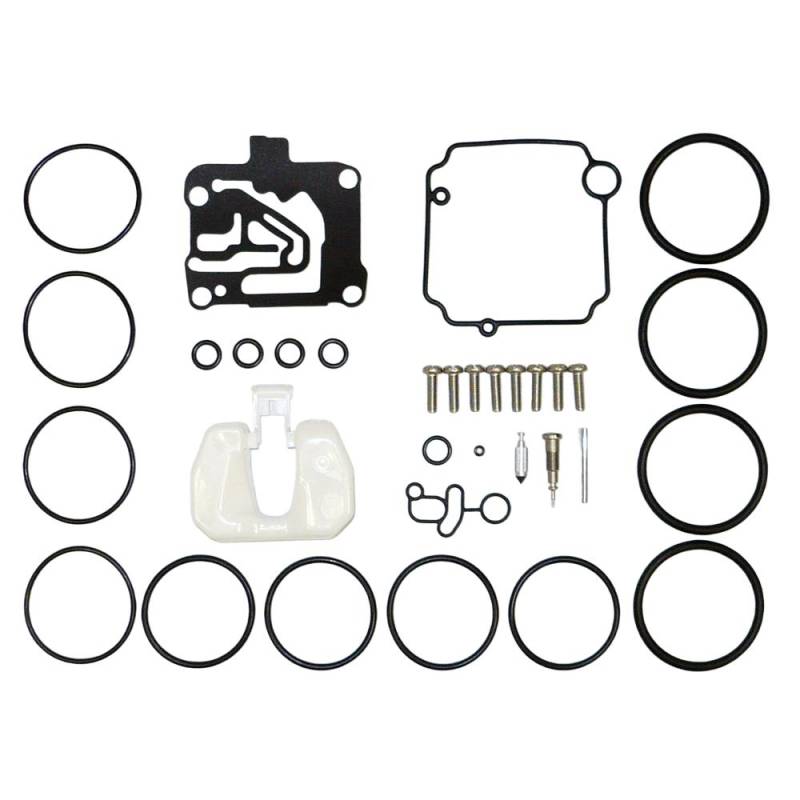

KIT INCLUDES:
• Gasket Float Chamber 69W-14384-00-00 (1)
• Float 6L2-14385-00-00 (1)
• Pin Float 6E5-14386-01-00 (1)
• Valve Needle 6L2-14392-00-00 (1)
• Screw Throttle 62Y-14321-00-00 (8)
• Gasket 69W-14399-00-00 (1)
• Screw Air Adjusting 69W-14323-00-00 (1)
• O-Ring 2T4-14397-01-00 (1)
• O-Ring 652-14397-00-00 (1)
• Gasket 62Y-14398-30-00 (1)
• O-Ring 69W-14561-00-00 (4)
• O-Ring 93210-35M86-00 (4)
• O-Ring 93210-38MH3-00 (4)
• Washer 62Y-14227-01-00 (4)

SPECIFICATIONS:
• Engine Type: 4-Stroke
• Cylinders: 4
• Horsepower: 60HP
• Years: 2002-2005
• Application: Outboard Motor and Jet Drive
• Fuel System: Carburetor

COMPATIBLE MODELS:
• Yamaha F60 60HP 4-Stroke Outboard 2002-2005
• Yamaha T60 60HP 4-Stroke Jet Drive 2003-2004

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
