Carburetor Rebuild Kit Compatible With 2004 Arctic Cat 400 2X4 4X4 Auto 376Cc Air-Cooled Sohc

016-455A1
SPECIFICATIONS:
• Product type: carburetor rebuild (repair) kit

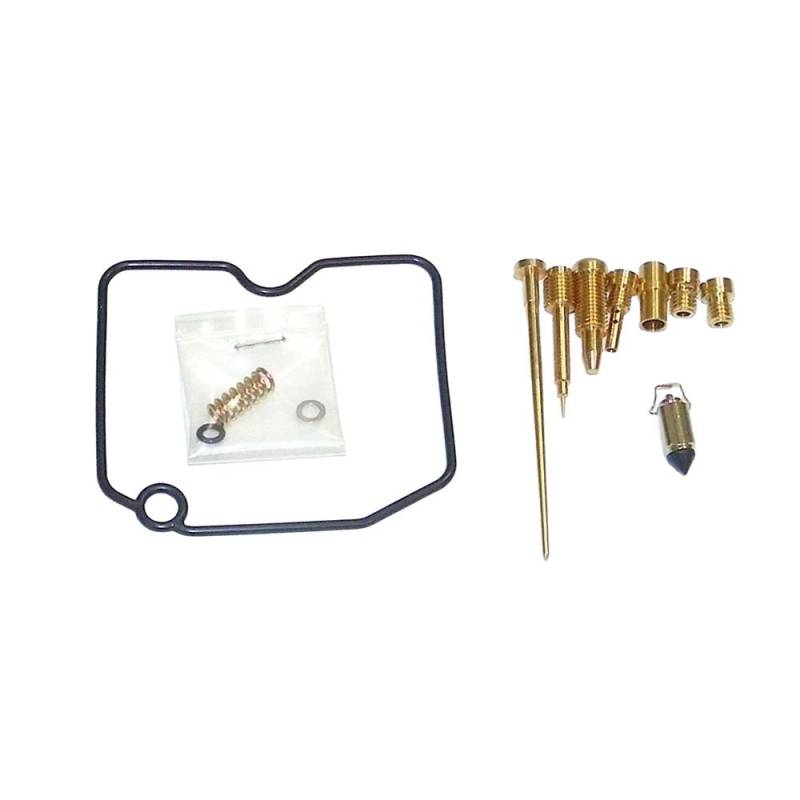

• Kit contents: jet needle, jets, fuel screw, gaskets, O-rings, float valve and springs
• Carburetor: Keihin CVK (Arctic Cat 400 2004: CVK32 on the solid rear axle 400 4x4 Automatic, CVK34 on the FIS models)
• Factory jetting CVK32 (Arctic Cat manuals): main jet 150, slow jet 38, starter jet 60, jet needle N8TV, needle jet 4.0/3.4, pilot screw 2 1/8 turns out
• Factory jetting CVK34 (Arctic Cat manuals): main jet 142, slow jet 38, starter jet 75, jet needle NA2G, needle jet 6.0/4.0, pilot screw 2 turns out
• 2004 model numbers: CVK32 on 400 4x4 Automatic A2004ATH4BUSG, A2004ATH4BUSR, A2004ATH4BUSS, A2004ATH4BUST; CVK34 on 400 2x4 Automatic FIS A2004ISH2BUSG, A2004ISH2BUSR and 400 4x4 Automatic FIS A2004ISH4BUSG, A2004ISH4BUSR, A2004ISH4BUSS, A2004ISH4BUST
• Factory settings: float arm height 17 mm (0.7 in), idle 1250-1350 rpm
• Engine: 376cc air/oil-cooled SOHC 4-valve single cylinder 4-stroke, 79 x 71.2 mm
• Condition: New aftermarket, not an Arctic Cat or Keihin branded part

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $120.73
Sale: $68.99
Save: 43%
Save: $51.74
Qty:
Free Shipping!

Description

ARCTIC CAT 400 AUTOMATIC UTILITY ATV, 376cc 4-STROKE (2004):
• Arctic Cat 400 2x4 Automatic (400 2x4 Auto) 376cc air/oil-cooled SOHC 4-valve Utility ATV 2004
• Arctic Cat 400 4x4 Automatic (400 4x4 Auto) 376cc air/oil-cooled SOHC 4-valve Utility ATV 2004

ENGINE AND CARBURETOR:
• 376cc air/oil-cooled SOHC 4-valve single cylinder 4-stroke, bore x stroke 79 x 71.2 mm, Duramatic CVT automatic with reverse
• Keihin CVK carburetor (CVK32 on the solid rear axle 400 4x4 Automatic, CVK34 on the FIS models)

SPECIFICATIONS:
• Product type: carburetor rebuild (repair) kit
• Kit contents: jet needle, jets, fuel screw, gaskets, O-rings, float valve and springs
• Carburetor: Keihin CVK (Arctic Cat 400 2004: CVK32 on the solid rear axle 400 4x4 Automatic, CVK34 on the FIS models)
• Factory jetting CVK32 (Arctic Cat manuals): main jet 150, slow jet 38, starter jet 60, jet needle N8TV, needle jet 4.0/3.4, pilot screw 2 1/8 turns out
• Factory jetting CVK34 (Arctic Cat manuals): main jet 142, slow jet 38, starter jet 75, jet needle NA2G, needle jet 6.0/4.0, pilot screw 2 turns out
• 2004 model numbers: CVK32 on 400 4x4 Automatic A2004ATH4BUSG, A2004ATH4BUSR, A2004ATH4BUSS, A2004ATH4BUST; CVK34 on 400 2x4 Automatic FIS A2004ISH2BUSG, A2004ISH2BUSR and 400 4x4 Automatic FIS A2004ISH4BUSG, A2004ISH4BUSR, A2004ISH4BUSS, A2004ISH4BUST
• Factory settings: float arm height 17 mm (0.7 in), idle 1250-1350 rpm
• Engine: 376cc air/oil-cooled SOHC 4-valve single cylinder 4-stroke, 79 x 71.2 mm
• Condition: New aftermarket, not an Arctic Cat or Keihin branded part

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 1.0 lbs.
  • W11.0000” x H6.0000” x L14.0000”
  • Free Shipping!
