New Isolator Intake Boot Compatible With 2007-2014 Mercury Verado 300Hp Pro 200 250 300 L6 2.6L

MERCURY VERADO L6 2.6L SUPERCHARGED 4-STROKE OUTBOARD ISOLATOR INTAKE BOOT (2005-2018+):

MERCURY VERADO L6 200HP (2005-2014):
• Mercury Verado 200 HP L6 2.6L Supercharged 4-Stroke (s/n 0T980000 - 2B578935)
• Mercury Pro Verado 200 HP L6 2.6L Supercharged (s/n 2B034840 - 2B577715)

MERCURY VERADO L6 225HP (2005-2014):
• Mercury Verado 225 HP L6 2.6L Supercharged 4-Stroke (s/n 0T980000 - 2B578935)

MERCURY VERADO L6 250HP (2005-2014):
• Mercury Verado 250 HP L6 2.6L Supercharged 4-Stroke (s/n 0T980000 - 2B578935)
• Mercury Pro Verado 250 HP L6 2.6L Supercharged (s/n 1B830170 - 2B577715)

MERCURY VERADO L6 275HP (2005-2010):
• Mercury Verado 275 HP L6 2.6L Supercharged 4-Stroke (s/n 0T980000 - 2B578935)

MERCURY VERADO L6 300HP (2007-2014):
• Mercury Verado 300 HP L6 2.6L Supercharged 4-Stroke (s/n 0T980000 - 2B578935)
• Mercury Pro Verado 300 HP L6 2.6L Supercharged (s/n 1B830170 - 2B577715)

MERCURY VERADO L6 350HP (2008+):
• Mercury Verado 350 HP L6 2.6L Supercharged 4-Stroke (s/n 2B141617 & Up)
• Mercury Pro Verado 350 HP L6 2.6L Supercharged (s/n 2B141617 & Up)

MERCURY VERADO L6 400HP / 400R RACING:
• Mercury Pro Verado 400 HP L6 2.6L Supercharged (s/n 2B618256 & Up)
• Mercury Verado 400R Racing L6 2.6L Supercharged (s/n 2B141124 & Up)

SPECIFICATIONS:

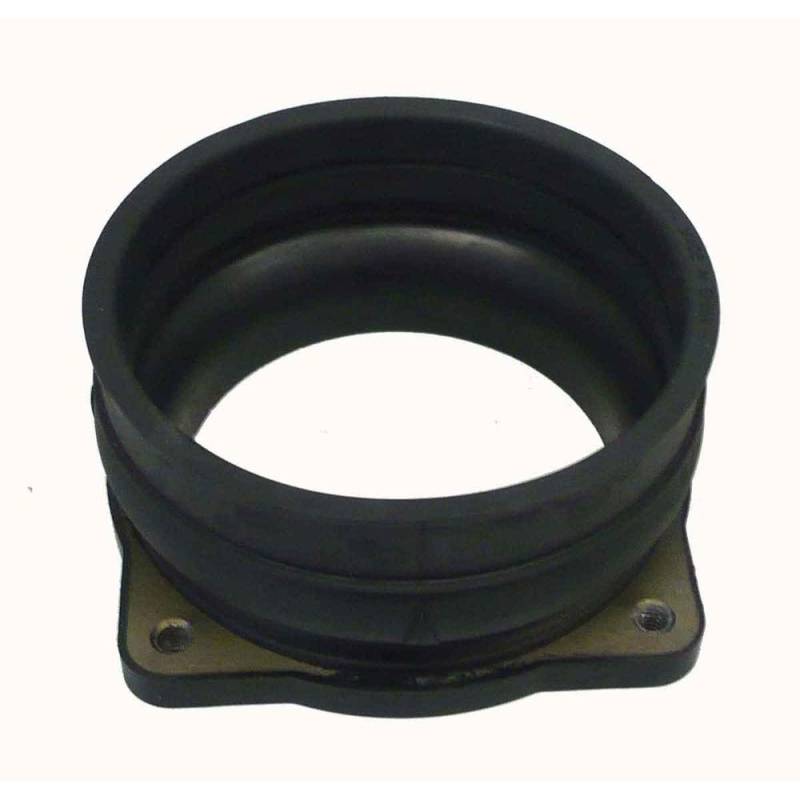

• Type: Air Intake Isolator Boot (Rubber with Mount Plate Flange)
• Function: Connects Electronic Throttle Control (ETC) Unit to Bottom of Supercharger
• Material: High-Quality Rubber with Adhered Mount Plate Flange
• Includes: Hose Clamp 54-815504256 (Current OEM 8M0113513 Design)
• Application: Mercury Verado L6 2.6L Supercharged 4-Stroke Outboards Only
• Coverage: 200 HP through 400R HP Verado Variants (2005-2018+)
• Engine Platform: Inline 6 Cylinder (L6) — NOT V6
• Condition: New

MERCURY OEM PART NUMBERS:
• Mercury: 8M0113513 (Current — Includes Clamp 54-815504256)
• Mercury: 880576T04 (Mid-Production OEM)
• Mercury: 87928815T (Original OEM — Superseded)
• Mercury: 880576005 / 880576005.0
• Quicksilver: Same Numbers (Mercury OE Brand)
• Clamp: 54-815504256 / 815504256

WHY THIS BOOT FAILS — COMMON VERADO ISSUE:
• Original 87928815T design had boot SEPARABLE from mount plate
• Engine Vibration and Heat Caused Tearing at Bottom of Boot
• Failed Boot Allowed Supercharger to Suck Unmetered Air
• Mercury Redesigned to 8M0113513 — Boot now ADHERED to Mount Plate Flange
• Improved Design Dramatically Reduces Failure Rate
• Always Replace Hose Clamp When Replacing Boot (Clamp Included with 8M0113513)

SYMPTOMS OF FAILED ISOLATOR BOOT:
• Higher-Than-Normal Idle RPM
• Loud Hissing Sound from Engine Compartment
• Engine RPM Revs Up Unexpectedly
• Reduced Low-End Power and Throttle Response
• Possible Engine Fault Codes for Air-Fuel Mixture
• Intermittent High Idle While Idling at Dock

INSTALLATION:
• Step 1: Disconnect battery negative cable
• Step 2: Remove cowling from outboard
• Step 3: Locate isolator boot at junction of ETC unit and bottom of supercharger
• Step 4: Loosen hose clamp on existing boot (cut zip-tie if applicable)
• Step 5: Remove old boot from ETC and supercharger
• Step 6: Inspect both mounting surfaces for damage and debris
• Step 7: Position new boot with mount plate flange adhered as designed
• Step 8: Install with new clamp 54-815504256 (included with 8M0113513)
• Step 9: Tighten clamp to manufacturer specification
• Step 10: Reinstall cowling, reconnect battery
• Step 11: Start engine, verify normal idle and no hissing sound

NOTE: Verify your Mercury Verado serial number is within the listed ranges before ordering. This isolator boot is specifically engineered for Verado L6 2.6L supercharged 4-stroke outboards — NOT compatible with Verado 4-cylinder, FourStroke non-supercharged, OptiMax, or other Mercury platforms. Always inspect supercharger and ETC mounting surfaces during replacement.
