16 Foot Marine Rotary Steering System Compatible With Single Station Outboard Boats Up To 25Ft Zero

MARINE BOAT STEERING APPLICATIONS:

OUTBOARD BOATS:
• Single station outboard boats up to 25 feet (7.5 meters)
• Outboard engines up to V-4 configuration
• Non-power-assisted mechanical rotary steering applications
• Center console, side console, and tiller-to-remote conversion boats
• Aluminum and fiberglass hulls with dash-mounted steering

INBOARD AND STERN DRIVE BOATS:
• Inboard marine engine applications with rotary steering
• Stern drive boats requiring rotary cable steering systems
• Single station configurations only

COMPATIBLE STEERING SYSTEMS:
• Replaces standard 2900 rotary steering systems
• Compatible with most rotary helm systems using 3/4 inch tapered shaft
• Fits dash cutouts for standard rotary helm mounting
• 90-degree and 20-degree bezel options available

CABLE MEASUREMENT GUIDE:
• For replacement: Measure old cable tip to tip and round up to next whole foot
• For new installations: Measure cable routing path from helm to engine and round up to next foot
• Route cable with as few turns as possible keeping bends to 8 inch minimum radius
• Cable lengths available from 6 to 30 feet in 1 foot increments

NOTES:

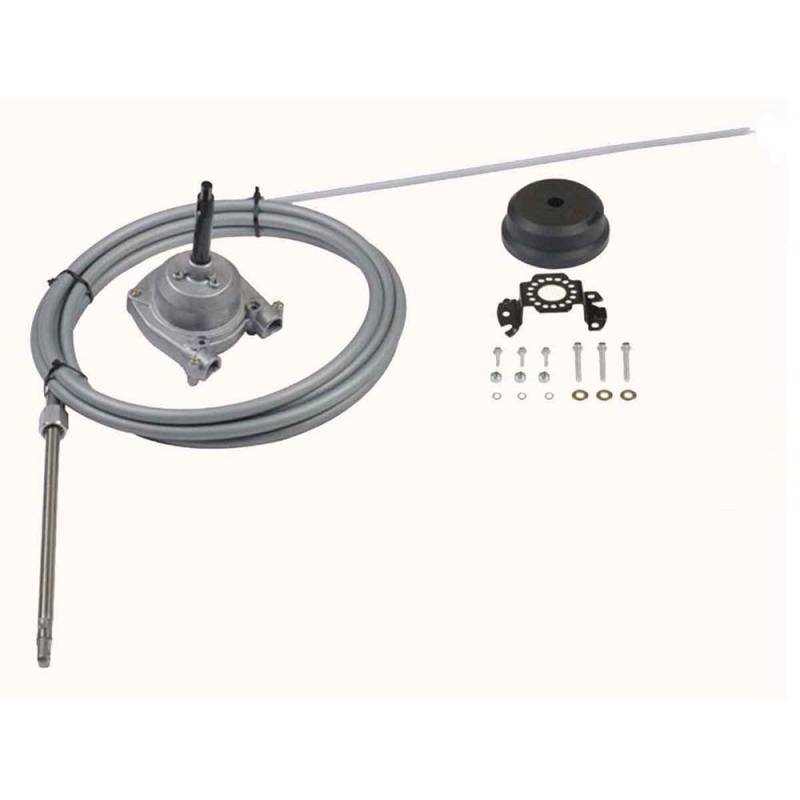

• Complete package includes helm, bezel, and 16ft steering cable
• Single station use only - dual station requires separate transfer unit
• Maximum steering wheel diameter: 16 inches
• Approximately 3.8 turns lock to lock
• This item fits various applications by part number - verify your OEM part number to ensure fitment
• OEM Part Number: 900-510016
